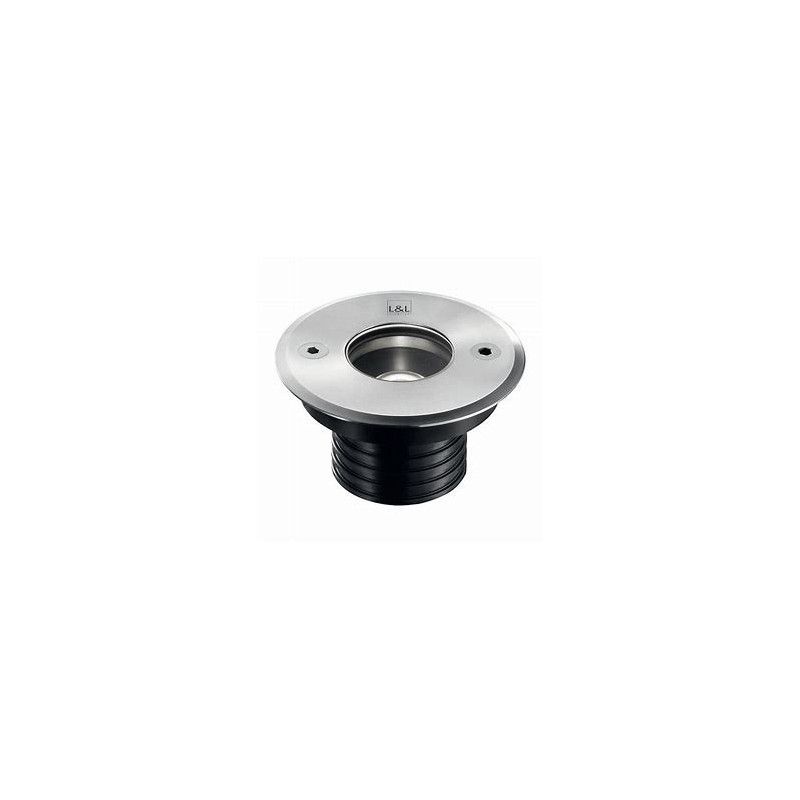

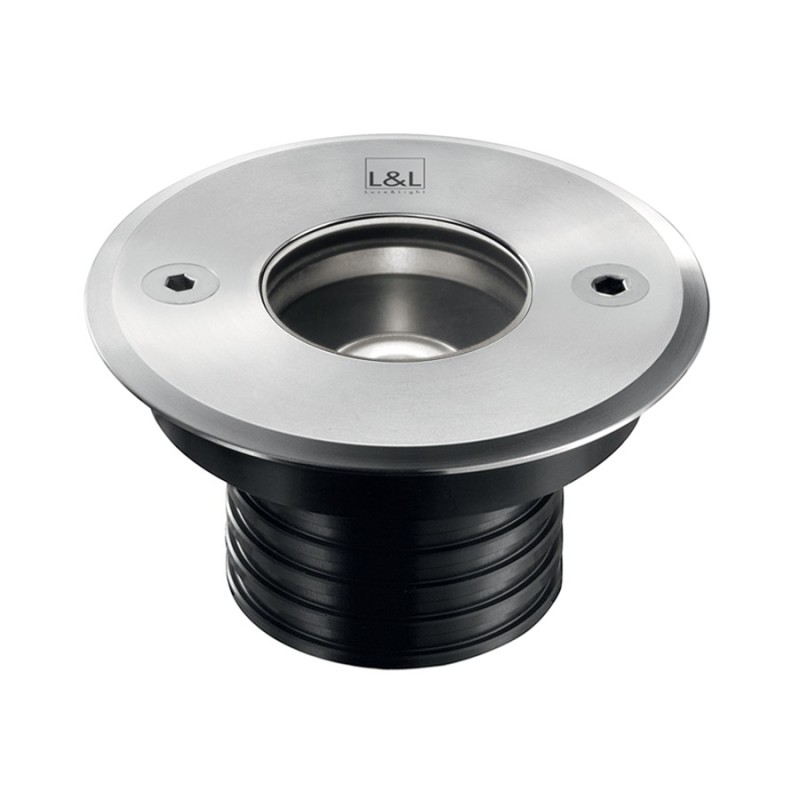

Bright 2.4 Outdoor Recessed Light - 7W 24Vdc 3000K 47° Stainless Steel Optics

Bright 2.4 Outdoor Recessed Light - 7W 24Vdc 3000K 47° Stainless Steel Optics

Bright 2.4 by L&L Luce&Light is a recessed lighting fixture for outdoor applications, designed to withstand extreme conditions and support loads of up to 2000 kg. This device is ideal for lighting paths, gardens, facades and other outdoor areas that require discreet and functional lighting. Made of AISI316L stainless steel, Bright 2.4 is resistant to atmospheric agents and offers high durability.

Bright 2.4 Technical Data Sheet
Code: CB240105JII

Description: The Bright 2.4 recessed luminaire is a lighting solution designed for outdoor applications that require high resistance, such as walkways, gardens and driveways. Thanks to its robust design and the possibility of management via Casambi, the Bright 2.4 is an ideal choice for smart and functional lighting.

Technical Data

Electrical Features:

• Power Consumption: 7W
• Power supply: 24Vdc
• Power supply: Power supply not included

Lighting Features:

• Number and Type of LED: 1 High Intensity Power LED
• Average LED life: 50,000 hours L90 B10 (Ta 25°C)
• LED color: 3000K, warm white light ideal for creating a cozy atmosphere
• Colour Rendering Index (CRI): 80, ensuring good colour rendering
• Binning: 3 step MacAdam, to ensure color uniformity
• Optics: 47°, for a wide and uniform distribution of the light beam
• Luminous Flux at Source: 657 lm (3000K, 7W, CRI 80)
• Luminous Flux Emitted: 463 lm (3000K, 34°, 7W, CRI 80)

Mechanical Features:

• Dimensions: Ø85 x 63 mm
• Weight: Stainless steel bezel: 440g; Aluminum bezel: 330g
• Finishes: Stainless steel
• Body: AISI316L stainless steel, resistant to corrosion and designed to ensure long life even in extreme conditions
• Screen Material: Extra-clear tempered transparent glass, to ensure impact resistance and good light diffusion
• Fixing: With fixing springs or with formwork for easy installation in floors, walls and ceilings
• Mounting hole: Ø70 mm
• Technical Volume for Dissipation: Ø180 mm, H 120 mm

General Features:

• Protection Grade: IP65, IP68, IP69, designed to resist dust and water, perfect for outdoor environments
• Operating Temperature: -20°C to +45°C
• Shock Resistance Rating: IK10, ensuring shock resistance and long operating life
• Energy Consumption Class: F, compliant with EU regulation 2019/2015
• Glow Wire Resistance Test: 960°C
• Maximum Appliance Temperature: 55°C (Ta 25°C)
• Insulation Class: Class III
• Walkable and Driveable: Yes, driveable up to 2000 kg, perfect for pedestrian and vehicular paths
• Power Cables: 1.5m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3mm included
• Protection Systems:
  • IPS (Intelligent Protection System): Protects the device from water infiltration and cable connection errors
  • PID (Protective Impedance Device): Protects against external electrical phenomena such as accumulation of electrostatic charges and overvoltages
• Photobiological Safety: Complies with IEC TR 62778:2014

Available Accessories:

• WC0100, WC0103, WC0150: Installation formwork
• WE0400A: Semi-diffused screen, half transparent and half satin
• WE0400S: Anti-glare screen, half transparent and half black silkscreened
• WG0100: Fixing spring Ø70 mm
• WH0201: Honeycomb for a special optical effect

Additional Notes:

• Versions Available on Request:
  • Optics 5°: With 3.5W power and white LED color
  • Power 9W: With white LED color
  • Casambi Management and Control via Casambi App: Available on request for smart lighting management

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

The Bright 2.4 is a robust and elegant solution for illuminating outdoor driveways and pedestrian areas, with a stainless steel construction and an IP65/IP68/IP69 rating to withstand the harshest environmental conditions. The ability to control via Casambi makes the Bright 2.4 an ideal option for customised and intelligent lighting.
