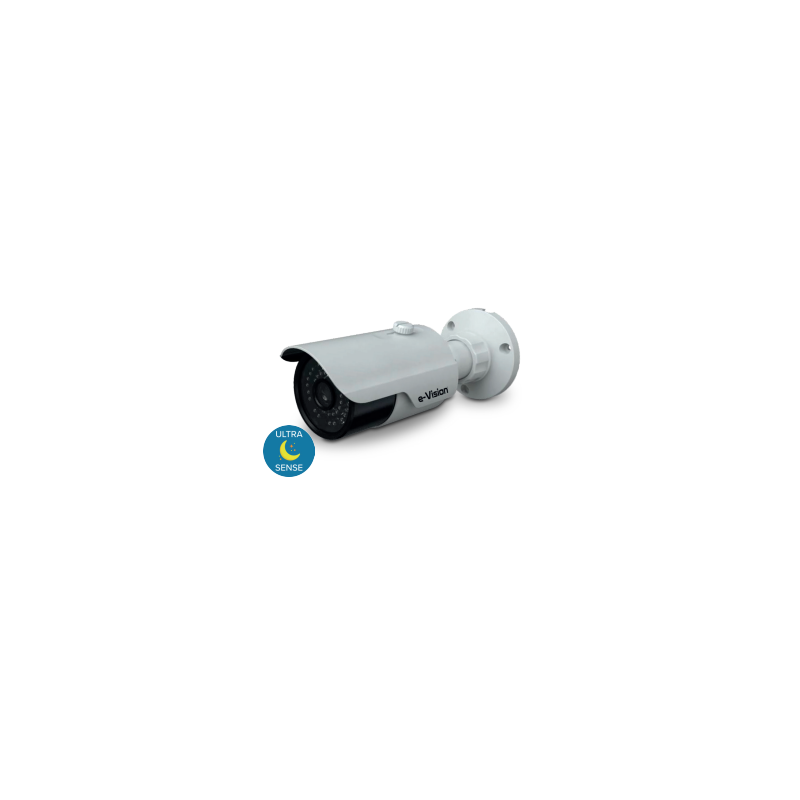

Bullet camera ahd/tvi/cvi/cvbs line

ULTRASENSE Technology Video Standard AHD / TVI / CVI / CVBS Resolution 2 Mpx Motorized varifocal lens 2.8 ÷ 12mm IR illuminator with 30m range and SMART IR function IP66 protection rating IK10 vandal-proof rating

The Multistandard AHD/TVI/CVI/CVBS Bullet Camera is an extremely versatile surveillance camera that supports all major analog high definition video standards, making it compatible with a wide range of DVRs and security systems. This bullet camera is designed to provide high quality images day and night, and with its ability to switch between different video formats, it is an ideal solution for upgrades to existing security systems or new installations.

Product Features:

• Type: Multi-standard bullet camera for surveillance
• Supported video standards: AHD (Analog High Definition), TVI (Transport Video Interface), CVI (Composite Video Interface), CVBS (Composite Video Blanking and Sync)
• Resolution: Available in different resolutions, such as 2MP (1080p), 4MP, or 5MP, to deliver sharp and detailed images
• Image sensor: CMOS, designed to provide high light sensitivity and high-quality images even in low-light conditions
• Lens:
  • Fixed focal length: (e.g. 2.8mm or 3.6mm ) for a wide, fixed viewing angle
  • Varifocal: (e.g. 2.8-12mm ) for manual or remote adjustment of viewing angle and optical zoom
• Minimum Illumination: Equipped with built-in IR (infrared) LEDs for night vision, with a typical IR range of 20-50 meters, depending on the model
• Advanced imaging features: Includes DNR (Digital Noise Reduction) to reduce image noise, WDR (Wide Dynamic Range) to handle scenes with strong light contrasts, and BLC (Backlight Compensation) to improve visibility in backlit conditions
• Day/Night Functionality: Removable IR Cut filter to optimize performance in all lighting conditions
• Housing: Rugged construction with IP66/IP67 rating, making it weatherproof and ideal for outdoor installations
• Connectivity: Analog video output over coaxial cable, compatible with DVRs that support AHD, TVI, CVI or CVBS
• Power: 12V DC, with PoC (Power over Coaxial) support option for power via coaxial cable

Advantages:

• Universal Compatibility: Supports all major analog video standards, making it extremely versatile and easy to integrate into any existing security system.
• High Image Quality: Resolutions up to 5MP and advanced features like WDR, DNR and BLC ensure sharp and clear images in any lighting condition.
• Enhanced Night Vision: Built-in IR LEDs enable effective night vision, ensuring continuous monitoring even in the dark.
• Ease of Installation: PoC support for simplified installation with single cable for power and data, reducing setup time and cost.
• Durability and Reliability: Designed for outdoor use with a weather-resistant housing, perfect for all weather conditions.

Usage:

The Multistandard AHD/TVI/CVI/CVBS Bullet Camera is ideal for a wide range of surveillance applications, including residential, commercial and industrial environments. It is perfect for entrances, courtyards, parking lots, warehouses, shops, offices and other spaces that require continuous monitoring. Its compatibility with different video standards and the ability to provide high-quality images make it an excellent choice for those looking for a versatile, reliable and easily integrated security solution.
