Single-line keypad 12 operators

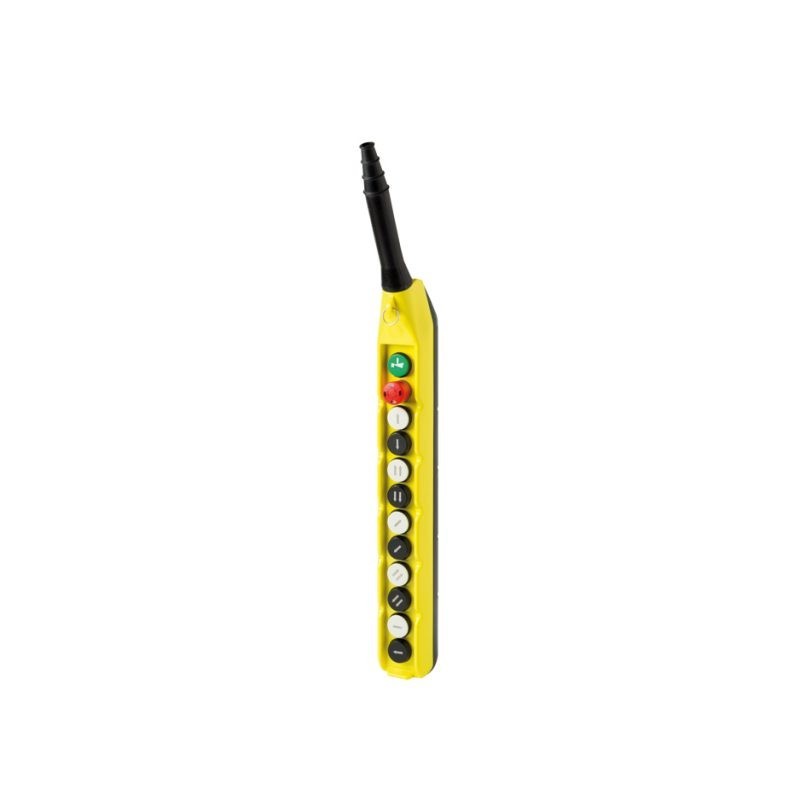

PL12 Series – Single row pendant control panel with 12 operators for overhead crane – Historic line

General characteristics
Bidirectionality is mechanically interlocked;
IP65 Double insulation (IEC / EN 60529);
Laser engraved symbols according to EN 60204-1, FEM 9.941;
Shock and heat resistant;
Available versions: for single or double speed motors;
Available with UL/CSA requirements, also in V0 material, UL approved on request;
Available in kit version (with laser-etched PL buttons).

Available codes
PL12/E – Single speed (START/ALARM:1NO – MUSHROOM:1NC – UP:1NO – DOWN:1NO – FAST UP:2NO – FAST DOWN:2NO – UP 45°:1NO – DOWN 45°:1NO – FAST UP 45°:2NO – FAST DOWN 45°:2NO – LEFT:1NO – RIGHT:1NO)
