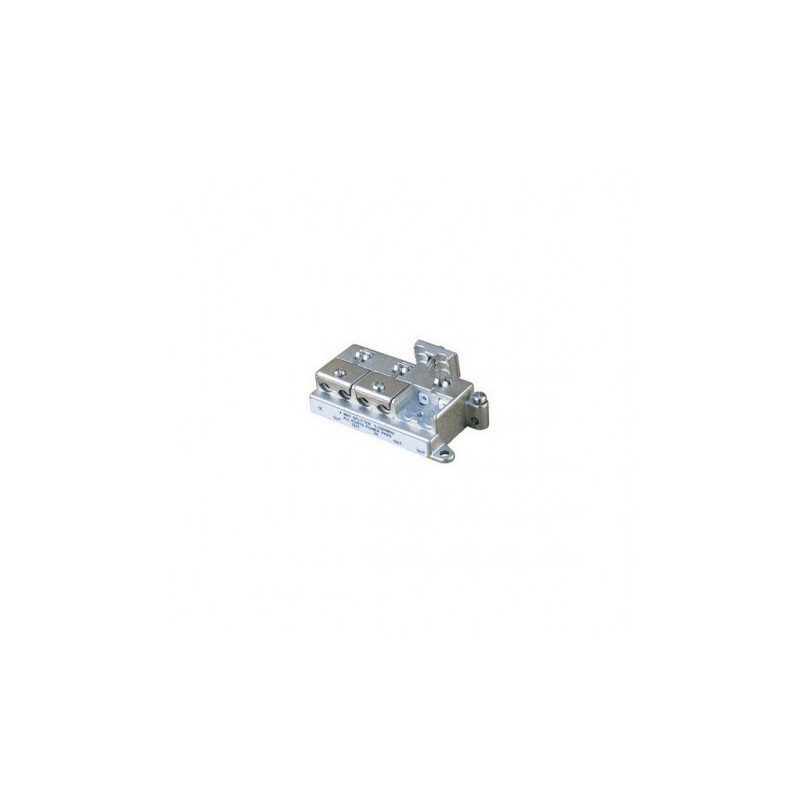

4-Output Derivator -16db

Emme Esse 81681
Inductive Shunt - 4 Way, -16dB

PlugIN Series

4 WAY TAP -16dB
5-2300MHz
Code 81681
D4/16

Specifications:

• Derivations: 4
• TV derivation attenuation: 16±1.0 dB
• Sat derivation attenuation: 16±1.0 dB
• TV insertion losses: 2.0÷2.5 dB
• Sat insertion losses: 2.7÷4.0 dB
• Out/Tap decoupling: -30÷25 dB
• Tap/Tap decoupling: 23÷21 dB
• Dimensions: 62 x 17 x 32 mm
