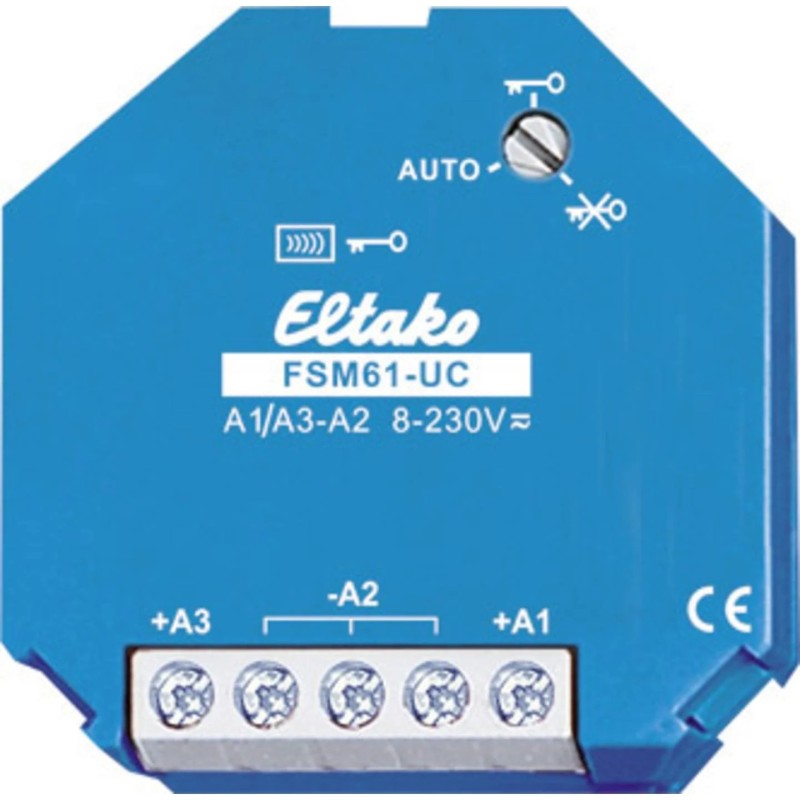

Fsm61-uc wireless transmission module 2 inputs

2 input radio transmitter module. With internal antenna. No standby loss. For flush-mounted installation. 45mm long, 45mm wide, 18mm deep. The FSM61-UC radio transmitter module has two channels and can thus be used as a radio button in the building lose eltako radio autonomy. A1 enables a frame as an actuator upwards of a radio button with a rocker and A3 as downwards. The message when opening the two control contacts is the same as releasing the radio button. No more radio transmitter modules may be connected at the same time. The universal control voltage at +A/-A2 processes commands from 8 to 253V AC or from 10 to 230V DC with a length of at least 0.2 seconds. The maximum parallel capacitance of the control lines at 230V 5nF. This corresponds to a length of approx. 20 meters. Terminals A1 and A3 with a bridge connected, will be displayed 1x depending on the minute a frame of A3, no control voltage will be sent. For example, for central commands with priority. A power supply is not required, therefore there is no Stand-by loss. The rotary switch for activation and deactivation of the encryption and the car is required. Encryption: the knob to turn right (position) and once. Deactivate encoding: the knob to the left (key position crossed out) and once.
