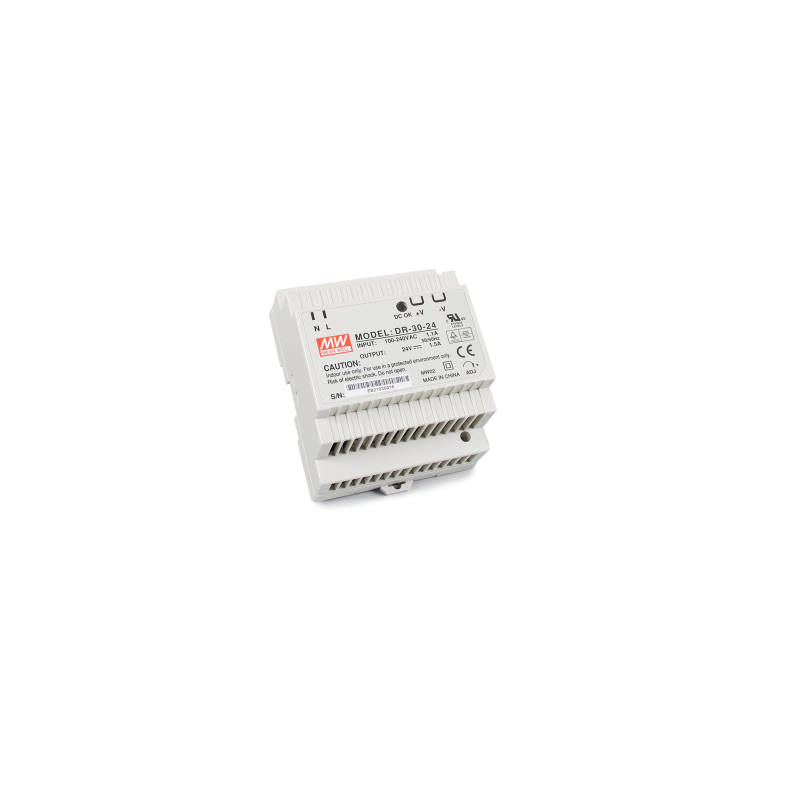

Mono switching mains power supply 3.2A 24VDC/85-2

Model: 10E001505

The mono switching power supply is designed to convert alternating current (AC) or direct current (DC) into stable DC voltage, providing safe and reliable power supply for various electronic devices.

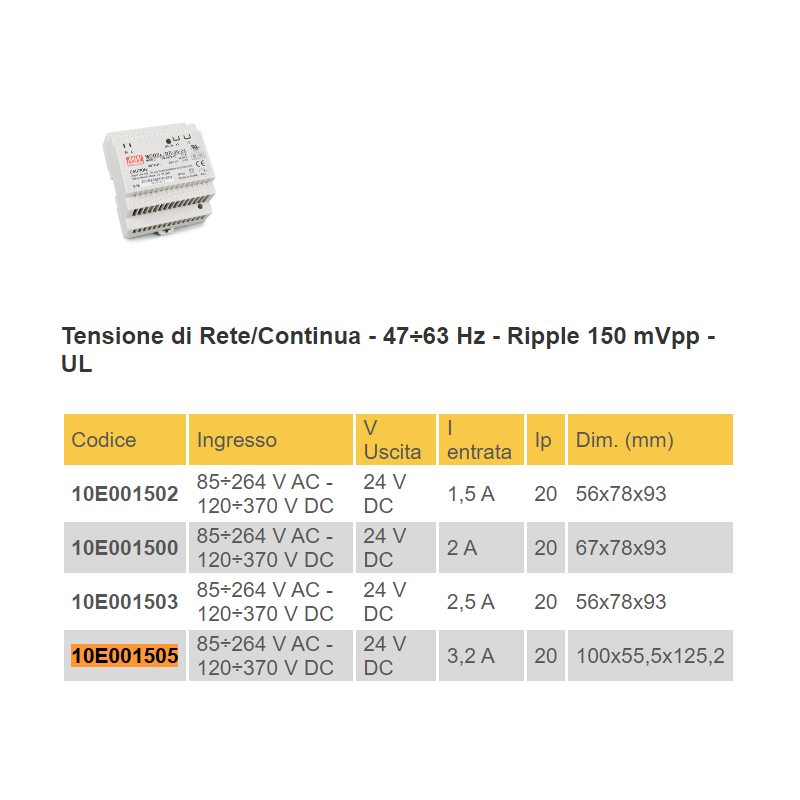

Technical Specifications:

• Input Voltage:
  85÷264 V AC / 120÷370 V DC
  The power supply is capable of operating with a wide range of input voltages, both alternating current (AC) and direct current (DC). This makes it extremely versatile and suitable for various industrial and residential applications. The ability to handle AC voltages from 85V to 264V and DC voltages from 120V to 370V allows use in environments with mains fluctuations or with battery power systems.

• Output Voltage:
  24V DC
  The power supply output is regulated at 24V direct current (DC), ideal for powering electronic devices that require a stable and reliable voltage.

• Output Current:
  3.2 A
  The power supply provides a maximum current of 3.2A, enough to power a variety of equipment, including control and automation systems.

• Network Frequency:
  47÷63 Hz
  Compatible with standard AC frequencies, from 47Hz to 63Hz, making it usable in various geographic regions.

• Ripple:
  150mVpp
  Ripple (residual variation in the output voltage) is kept within 150 mVpp, ensuring an output voltage clean enough for most electronic applications.

• Dimensions:
  100 x 55.5 x 125.2 mm
  The power supply has compact dimensions, with a width of 100 mm, height of 55.5 mm and depth of 125.2 mm, which facilitate its integration in limited spaces within electrical panels or other installations.

• Certification:
  UL
  The device is UL certified, which attests to compliance with international safety standards, ensuring safe and reliable operation.

Product Features:

• Entry Versatility:
  With the ability to accept a wide range of AC and DC input voltages, this power supply is extremely flexible and can be used in a variety of operating conditions.

• Energy Efficiency:
  Designed to offer high efficiency, minimizing energy losses and reducing heat generated during operation, which contributes to a long product life.

• Output Stability:
  The output voltage is well regulated, with low ripple, which ensures stable power supply for sensitive equipment such as PLCs, industrial controllers and other electronic devices.

• Ease of Installation:
  Thanks to its compact design and sturdy construction, this power supply is easy to install and fits well in various mounting configurations.

• Security and Compliance:
  UL certification ensures that the power supply meets high safety standards, making it suitable for use in critical applications.

In summary, the 10E001505 single switching power supply is a reliable solution for converting AC or DC current into a stable 24V DC voltage, with an output of 3.2A, ideal for a wide range of industrial and electronic applications.
