MPX 1 Point 24H Transponder with Solid State Relay for XM Series

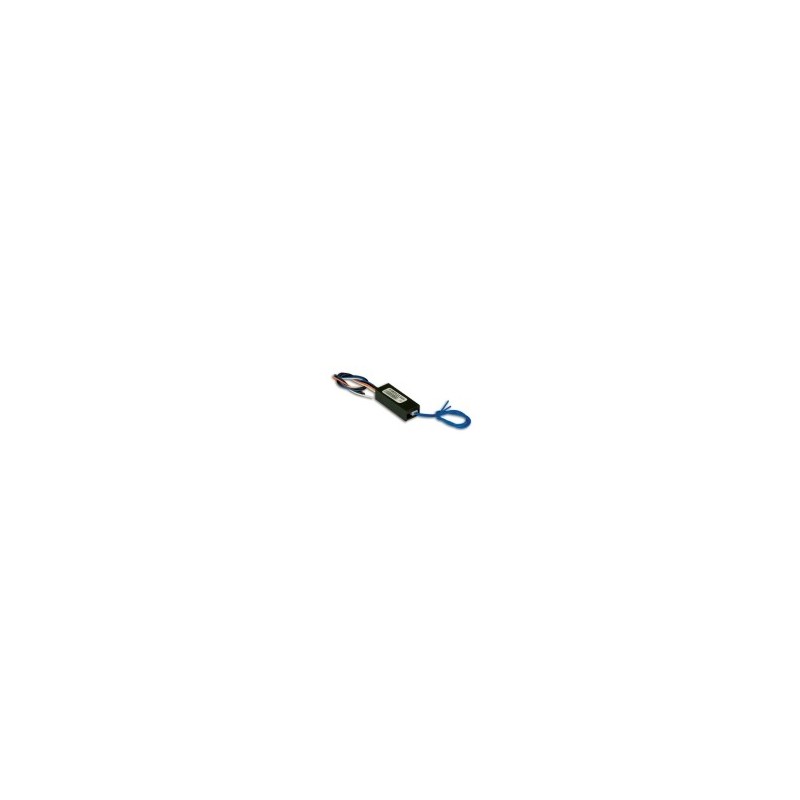

The Hiltron XM205 MPX Transponder is a compact and versatile device, designed for continuous monitoring of a single point in security systems. Equipped with a solid state relay output, the transponder connects via a two-wire MPX bus line, ensuring a safe and stable connection. This device is compliant with the CEI EN 50131-1 standard, which certifies its quality and reliability for burglar alarm systems. It is ideal for integration with the Hiltron XM Series , offering a reliable and compact solution for security applications.

Main features:

• Solid State Relay : Relay output ensures fast response and long life with no mechanical components to wear out.

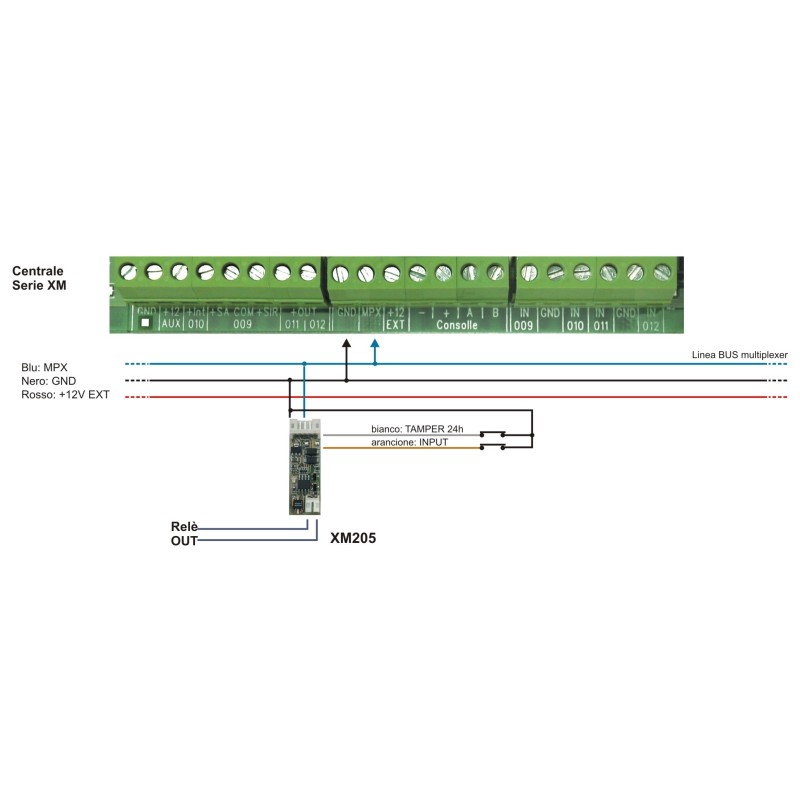

• 2-wire MPX bus connection : Stable communication and easy to install, with a maximum input cable length of 50cm.
• 24h Monitoring : Includes a programmable input and a dedicated input for continuous 24-hour monitoring.
• Adjustable Sensitivity : 8 configurable sensitivity levels, from 50ms to 225ms, in 25ms steps, to suit various operational needs.
• Compliant with safety standards : Certified according to IEC EN 50131-1 , with safety grade 1 and environmental class 2 , ensuring reliable operation in moderate environments.
• Minimal power consumption : Consumes only 4mA, ideal for reducing overall system load.

Technical specifications:

• Maximum cable length : 50cm
• Connection : 2-wire MPX bus line
• Programmable inputs : 1 programmable input and 1 24h input
• Security level : 1
• Environmental class : 2
• Maximum current consumption : 4mA
• Sensitivity levels : 8 (from 50ms to 225ms in 25ms steps)
• Solid State Relay Outputs : 1
• Dimensions :
  • Length: 12mm
  • Height: 5mm
  • Depth: 36mm

Applications:

The Hiltron XM205 Transponder is ideal for advanced burglar alarm systems that require continuous monitoring and reliable relay outputs. Thanks to its compact size and ease of installation, it is perfect for protecting critical points in residential or commercial environments.
