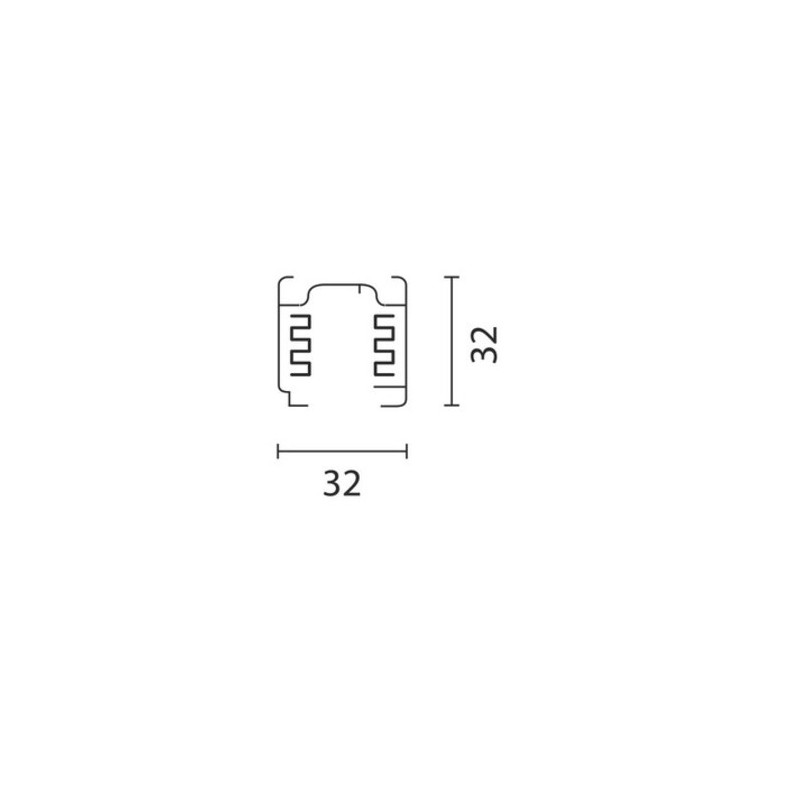

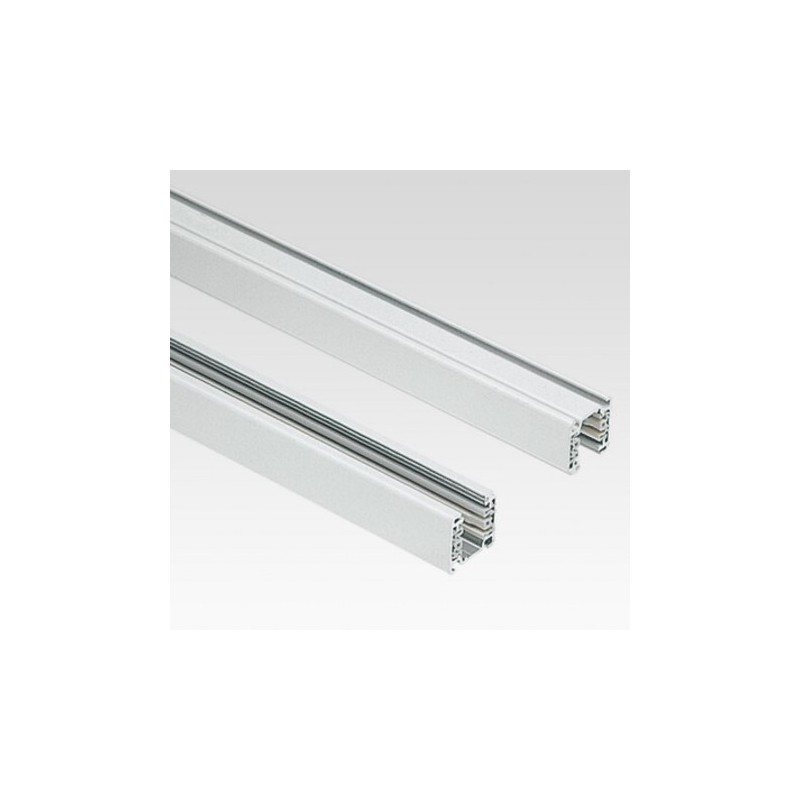

iGuzzini 8933 Standard track 32x32 l.3000 in met.

Installation information

• Installation: On the ceiling with fixing supports or by means of rods or load-bearing cables of different lengths to be applied to the profile. The track can also be applied at a height of less than 2.50 m from the floor, so that it can be used near work surfaces.
• Wiring: The section of the electrical conductors is such as to allow the following installation possibilities: operating voltage 220/250V. Connection to the single-phase 220/250V electrical network allows a total load of 16 A which corresponds to 3500/4000 V/A which can be divided into three circuiti.Tensione Operating voltage 220/380V. Connection to the three-phase 220/380V electrical network allows a total load of 16 A which corresponds to 10500 V/A which can be divided into 3 circuits (3x3500 V/A).
