Mpt45 terminal clamp 44-45

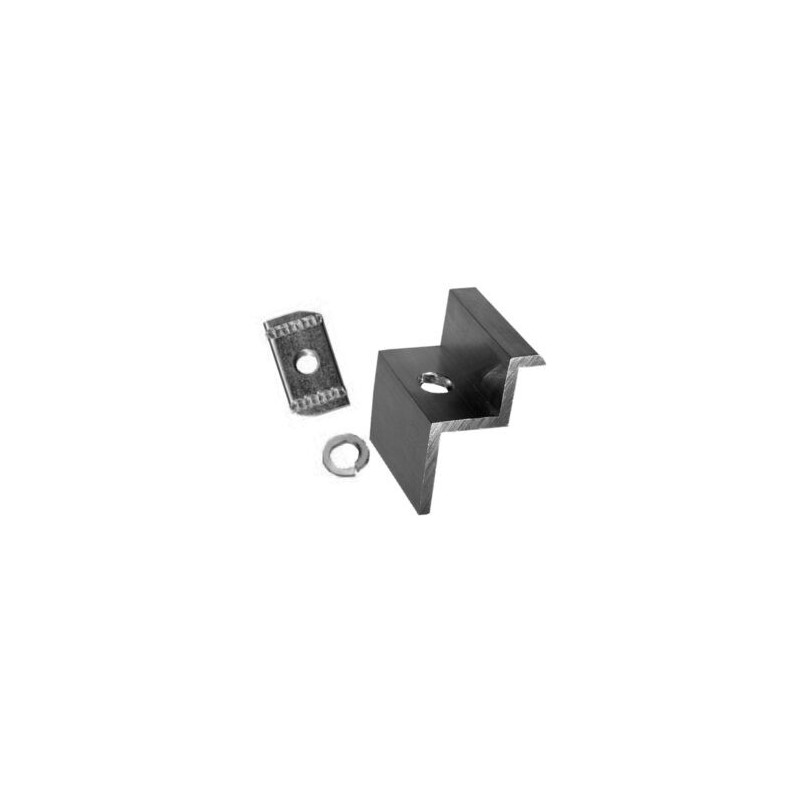

MPT is a non-preassembled clamp in natural aluminum used for the terminal fixing of photovoltaic modules on support profiles; it consists of an aluminum bracket complete with grower and DDF wing nut and must be completed with the choice of the M8 screw based on the height of the module.

TECHNICAL FEATURES

• Clamp Material: EN AW-6060 T5 aluminum alloy
• Screw: Not included, to be chosen according to the thickness of the module (see 'Table-Screws')
• Nut: DDF in Fe36 with GEOMET treatment
• Allowed Module Heights: from 44 mm to 45 mm
• Clamp width: 60 mm
• Color: Natural Aluminum
