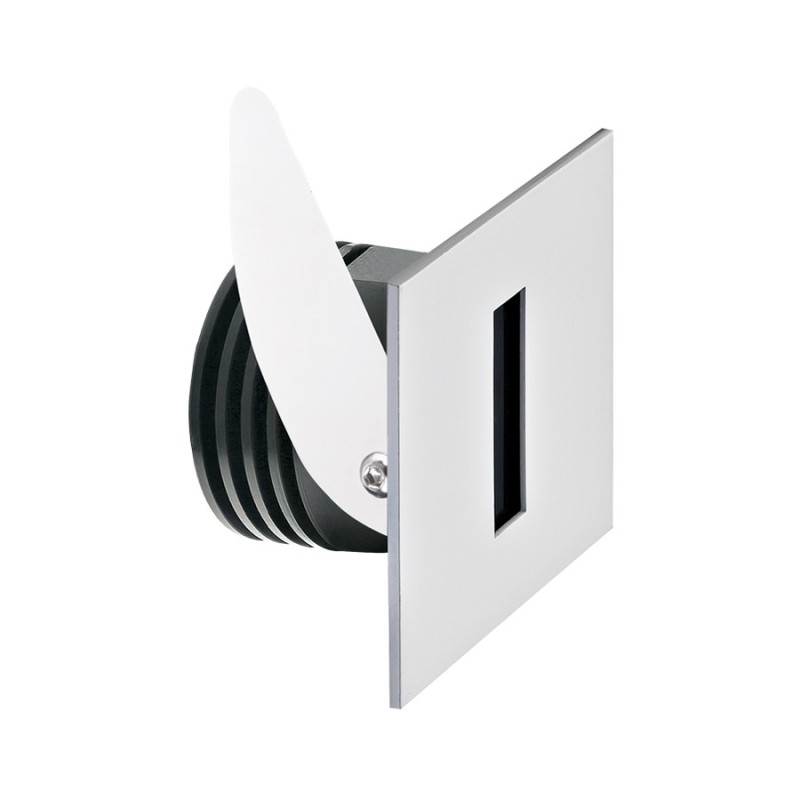

Step Outside 6.3 - Outdoor Step Light

Step Outside 6.3 - Outdoor Step Light (Code: SP63129AAS)

The Step Outside 6.3 is an outdoor step light designed to be installed flush on walls. With an elegant and resistant design, it is ideal for lighting outdoor paths, ensuring high performance and durability.

Main features :

• Power consumption : Max 2W
• Power supply : Max 500mA, with series connection.
• Luminous flux :
  • Source : 145 lm (3000K, 500mA)
  • Emitted : 25 lm (3000K, 500mA)
• LED type : 1 power LED with guaranteed lifespan of 50,000 hours (L90 B10 at 25°C).
• LED color temperature : 4000K (natural light).
• Optics : Asymmetric , for optimal distribution of light downwards.
• Color Rendering Index (CRI) : 80 , for good color rendering.

Materials and Finishes :

• Body : Made of aluminum with stainless steel cover, ensuring strength and durability.
• Finish : Satin , with other RAL finishes available on request.
• Screen : Transparent plexiglass .
• Dimensions : 55x55x52 mm
• Mounting hole : Ø45 mm
• Technical volume for dissipation : Ø70x90 mm

General characteristics :

• Protection class : IP65 , ideal for resisting dust and water in outdoor environments.
• Operating temperature : -20°C to +45°C .
• Insulation class : Class III .
• Energy consumption class : F (in accordance with EU regulation 2019/2015).
• Glow wire test : 960°C , which ensures the thermal safety of the device.
• Walkable : No.
• Driveable : No.

Management and protection systems :

• Dimmable : Brightness management available via dimmable power supply (not included).
• Casambi Management : Smart control via Casambi app with dedicated electronics.
• Protection systems :
  • IPS (Intelligent Protection System) : Protects against water infiltration and electrical malfunctions such as surges and reverse polarity.

Cables and Connections :

• Power cables : 1.5m neoprene cable included (H05RN-F 2x0.35/0.75 Ø6.3mm).

Accessories and Options :

• Formwork : WC1501 available for recessed fixing installations.

The Step Outside 6.3 is an elegant and functional solution for illuminating outdoor spaces, offering safe and well-directed light, perfect for paths and outdoor areas.
