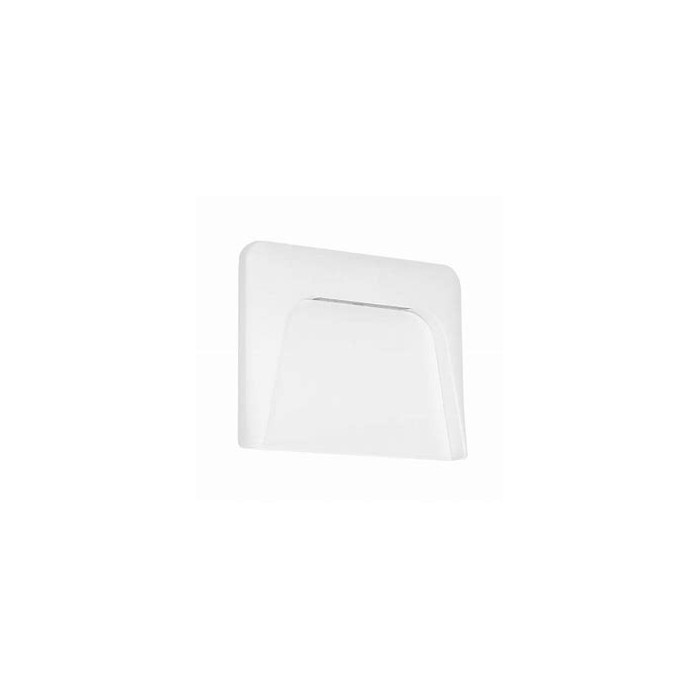

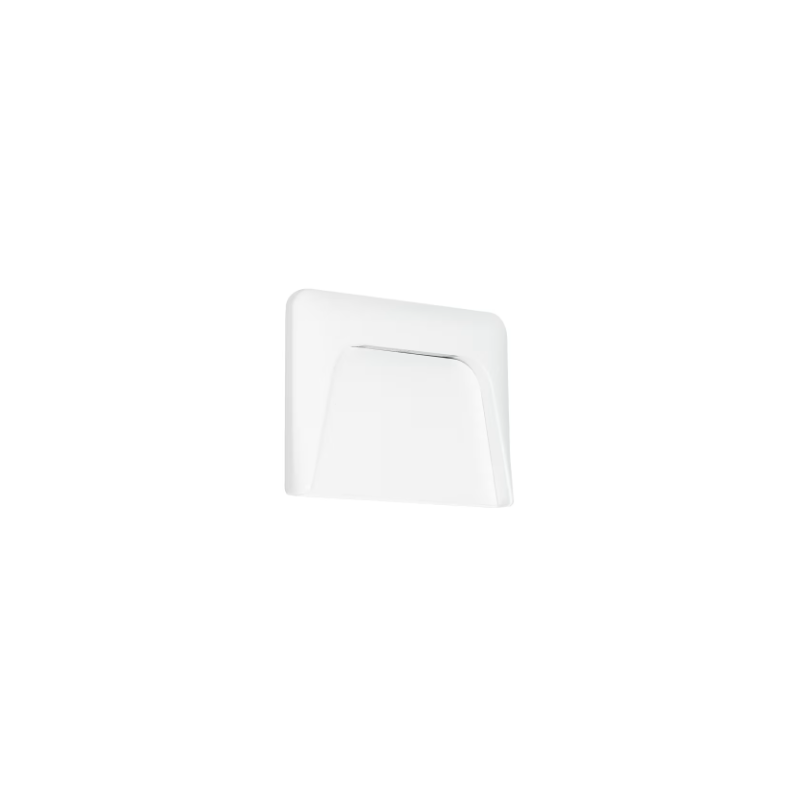

Linea light 97167N07 Envelope-w wall 1 1w ip66 c/sta bg

The Linea Light 97167N07 Envelope-W Wall is a wall lamp designed for outdoor applications, featuring a modern design and advanced features. Below is a detailed description of its specifications:

Main Features

• Lamp :

  • Lamp Type : Non-replaceable LED, integrated into the structure.
  • Lamp Inclusion : The lamp is included, making installation easier and more straightforward.
  • Body Material : Made of die-cast aluminum EN AB - 46100, which offers strength and lightness. The finish is embossed white RAL 9003, obtained through an open pore anodizing process and powder coating.
  • Diffuser Material : Opalescent plastic, designed to spread light evenly and softly.

• Lighting :

  • Power : 1W, ensuring low energy consumption.
  • Luminous Flux : 60 lm, with an efficiency of 60 lm/W.
  • Light Color : Natural white with a color temperature of 4000K, ideal for functional and non-invasive outdoor lighting.
  • Color Rendering Index (CRI) : 80-89, ensuring good color rendering under the emitted light.
  • Light Distribution : Asymmetric Wallwasher, perfect for illuminating vertical surfaces evenly.

• Technical Specifications :

  • Nominal Voltage : 24V DC, making it compatible with low voltage power supplies.
  • Power supply : Requires a standard electronic transformer, not included with the lamp.
  • Not Dimmable : The lamp does not support dimming.
  • Protection Rating : IP66, making the lamp highly resistant to dust and water jets, perfect for outdoor use.
  • Protection Class : III, ensuring a high level of electrical safety.

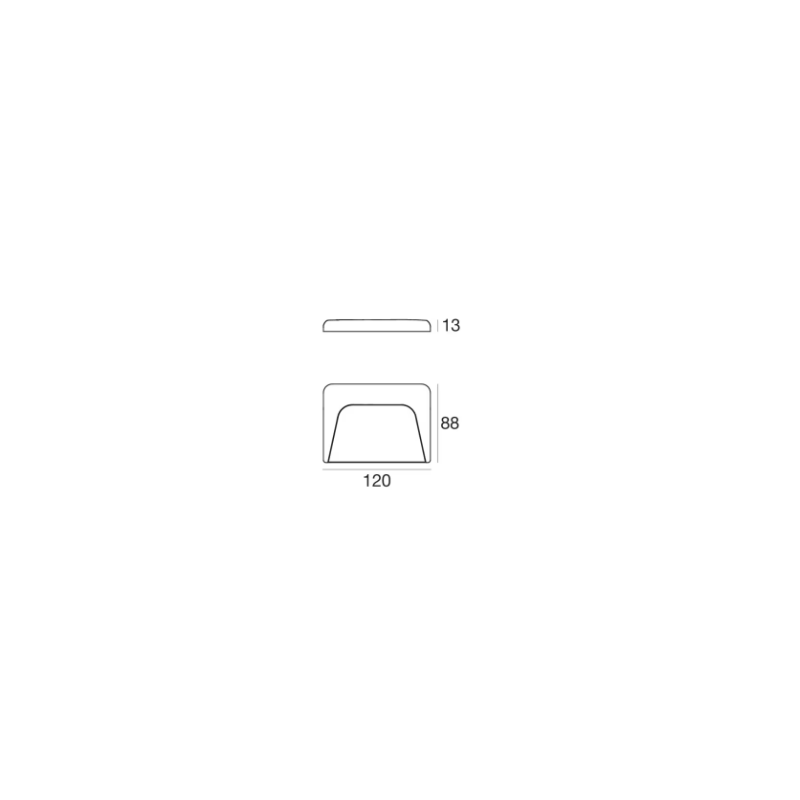

  • Dimensions :
    • Width : 88 mm
    • Height/Depth : 13 mm
    • Length : 120 mm
  • Weight : 0.170kg, making it easy to install on various surfaces.

• Compliance :

  • Complies with EN 60598-1, ensuring it meets the safety and quality requirements for lighting fixtures.

Applications

This lamp is ideal for outdoor lighting of facades, gardens, passages, or entrances. Its compact design and IP66 protection rating make it suitable for installations in environments exposed to difficult atmospheric conditions.

Summary

The Linea Light 97167N07 Envelope-W Wall is an outdoor lighting solution that combines modern design with high technical performance. With a white aluminum body, an opalescent diffuser, and an IP66 protection rating, it is perfect for ensuring functional and weatherproof lighting.
