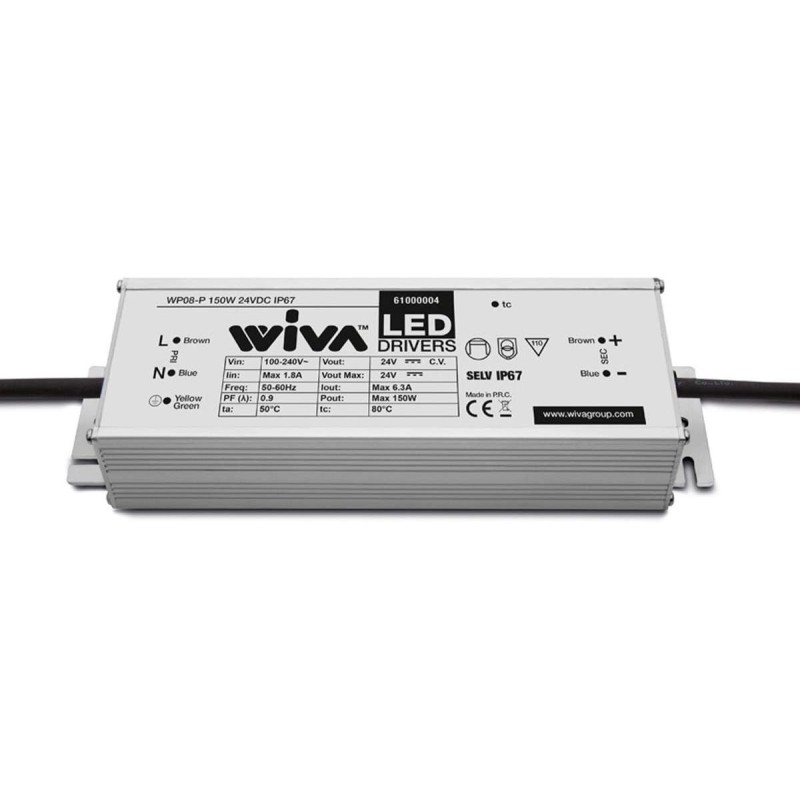

Constant Voltage Electronic Power Supply for LED WP08-P 150W 24VDC IP67

The WP08-P 150W 24VDC power supply is designed to provide constant voltage to LED lighting systems, ideal for both indoor and outdoor applications thanks to IP67 protection. The robust metal case ensures long life and reliable protection even in harsh environments. This power supply is perfect for those who need a highly efficient and safe solution, with advanced protections against overloads and extreme environmental conditions.

Main features:

• Independent use : Suitable for both indoor and outdoor applications thanks to the IP67 protection, which makes it resistant to dust and temporary immersion in water.

• Metal Case : Designed with a sturdy metal case , it provides extra protection against shock and harsh environmental conditions.

• Class I Insulation : Provides insulation against electric shock from direct and indirect contact, increasing safety during use.

• Active PFC : Includes active Power Factor Correction, which improves energy efficiency by reducing energy consumption.

• Advanced protections : Equipped with protections against short circuits , overloads , extra mains voltages and thermal protection , it guarantees safe and reliable operation.

• Impulse Withstand : Designed to withstand voltage impulses up to 2kV (LN) and 6kV (L/N-FG) , protecting the system from voltage spikes.

• H05RN-F Cables : Supplied with 150mm input and output cables, ideal for a secure and stable connection even in difficult conditions.

Technical specifications:

• Output power : 150W
• Output voltage : 24V constant
• Output current : 6300 mA
• Input voltage : 100-240V AC
• Frequency : 50/60 Hz
• Maximum input current : 1.8A

Operating conditions:

• Ambient temperature (ta) : -40/+50 °C
• Maximum temperature (tc) : 80 °C

Efficiency and protections:

• Efficiency : 88%
• Power Factor (PF) : 0.9

Dimensions and packaging:

• Inner/Master : 1/16

Advantages:

• Resistant to external agents : With IP67 protection and the ability to operate in a wide temperature range (-40/+50 °C), the power supply is ideal for outdoor installations or in harsh environments.

• High efficiency : With 88% efficiency and power factor correction, it saves energy and optimizes the operation of the entire LED system.

• Full Protection : Built-in protections ensure safe and reliable operation even in the event of overloads, short circuits or voltage fluctuations.

The WP08-P 150W 24VDC IP67 power supply is the ideal solution for powering LED systems safely and efficiently, even in difficult outdoor conditions, ensuring stable and long-lasting lighting with complete protection.
