Panzeri EL04744.035.0000 Ralph: outdoor suspension d35 brown metal noled

Technical Sheet - Panzeri Ralph EL04744.035.0000

Article code : EL04744.035.0000

System power consumption : Max 53W

Light source :

• LED retrofit / halogen
• Light source supplied: Not included
• Compatible sources: LED retrofit bulb E27 (L max 125mm - Ø max 65mm) / max 53W E27

Light distribution : Diffused beam

Power supply : 220-240V AC

Frequency : 50/60Hz

Weight : 2.49 Kg

Degree of protection : IP65 (Protected against dust and water jets, suitable for outdoor use)

Package dimensions : Not specified (0.0 x 0.0 x 0.0 cm)

Product Description

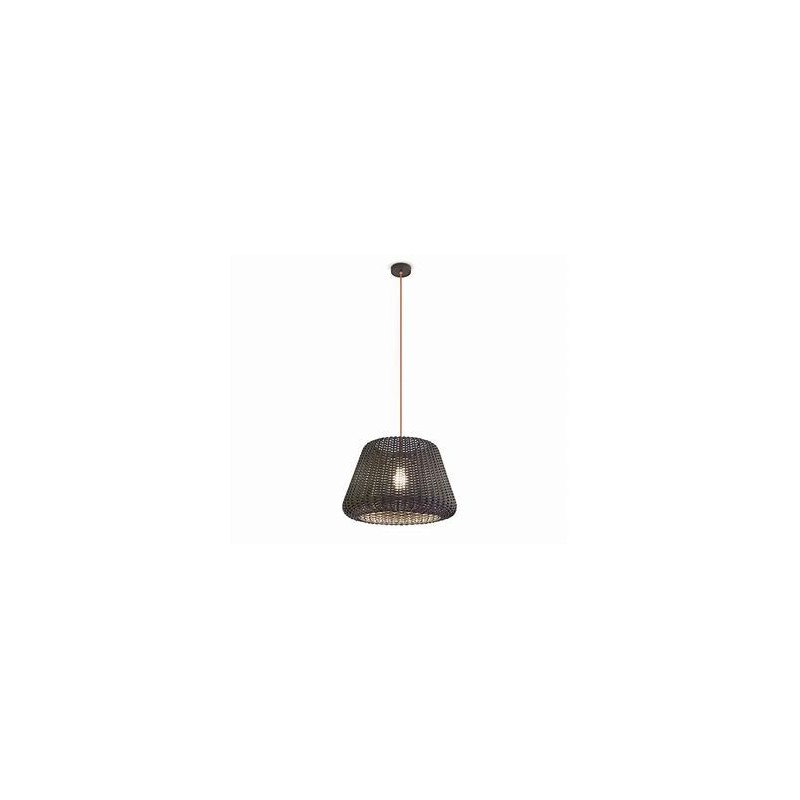

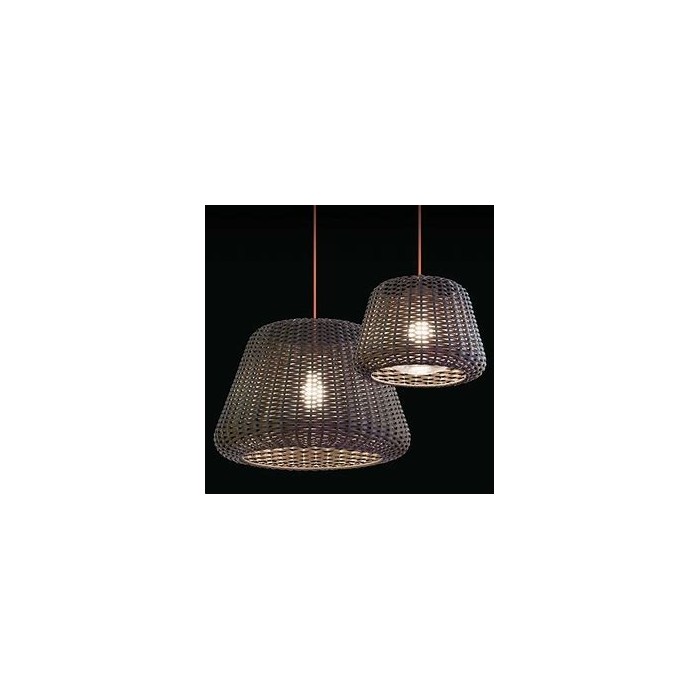

The Panzeri Ralph EL04744.035.0000 is a pendant lamp designed for outdoor installation, with both direct and indirect light emission. This lighting fixture combines functionality and design, thanks to high-quality materials and construction techniques:

• Structure : Made of turned aluminum, with polyacrylic paint in metallic brown color, which guarantees durability and resistance to atmospheric agents.

• Gasket : Made of silicone, for greater seal and protection from external agents.

• Diffuser : Made of transparent polycarbonate, which allows for uniform diffusion of light.

• Lampshade : Made of hand-woven synthetic rattan, brown color, gives an elegant and natural look to the lamp.

• Cable gland : M12 in nickel-plated brass, for a secure and resistant connection.

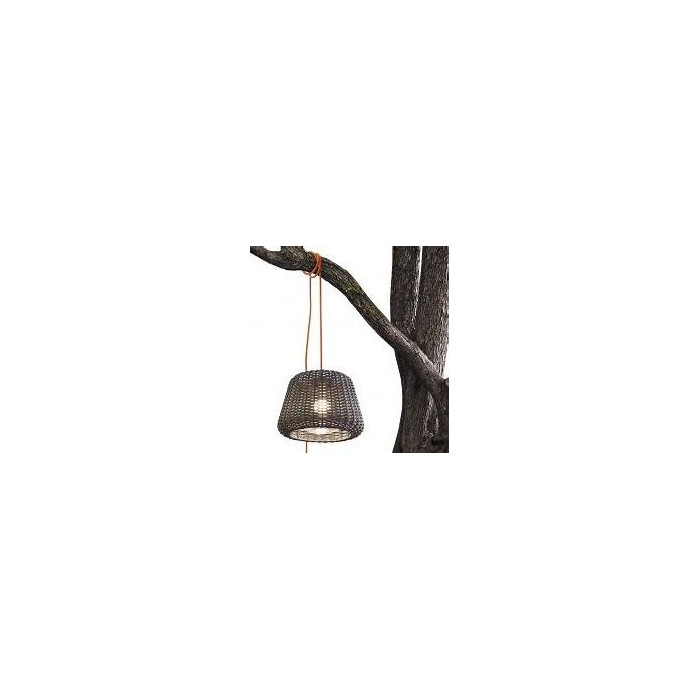

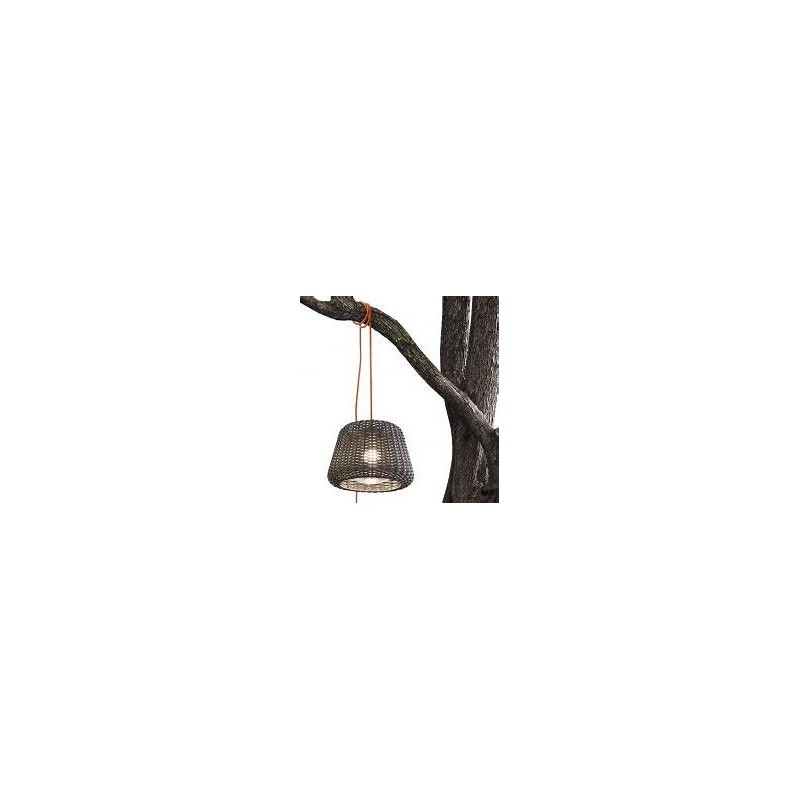

• Hanging Kit : Includes clear silicone o-ring and carabiner for secure installation.

• Power cord : Orange polyurethane, 4.5 meters long, equipped with plug for easy connection.

• Accessory rosette : Included for ceiling installation, with galvanized sheet metal fixing bracket and turned aluminum casing, painted in white or metallic brown.

Applications

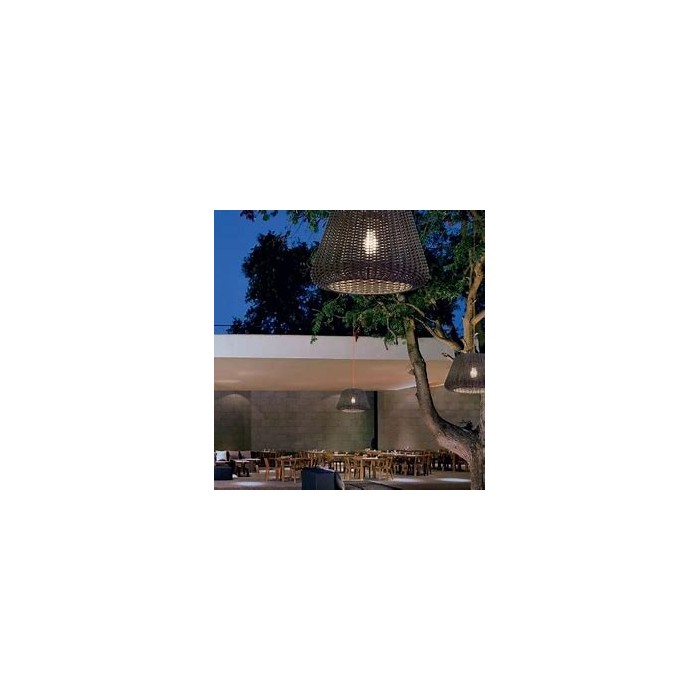

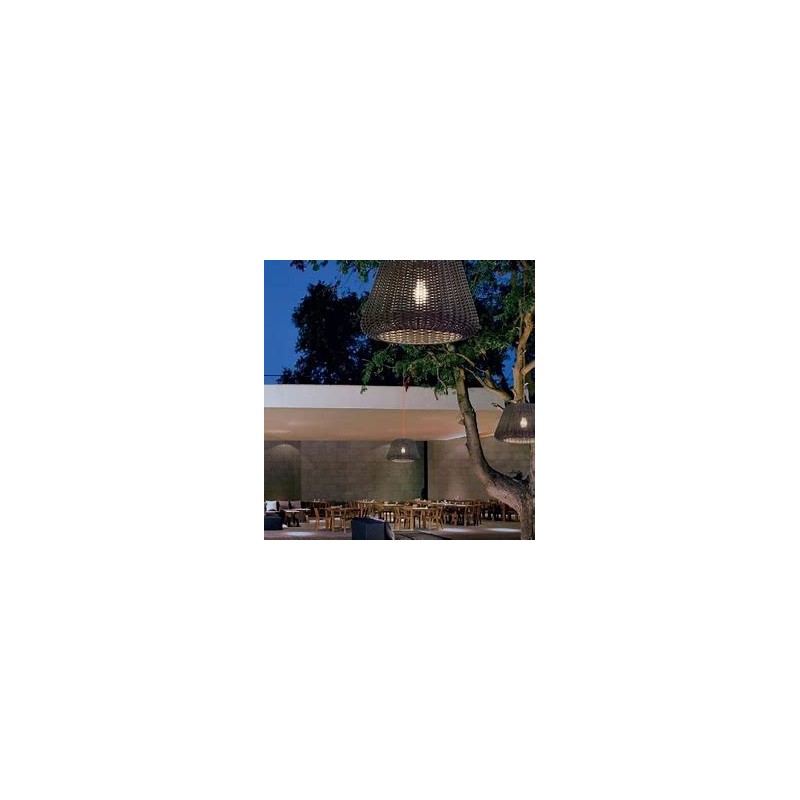

The Panzeri Ralph is ideal for lighting outdoor spaces such as terraces, porches, gardens and outdoor dining areas. Thanks to its resistant and refined design, this lamp integrates perfectly into modern architectural contexts, offering both aesthetics and functionality.
