Siemens 5sv53146 Differential Switch 2p 40a 30ma type A not acc.

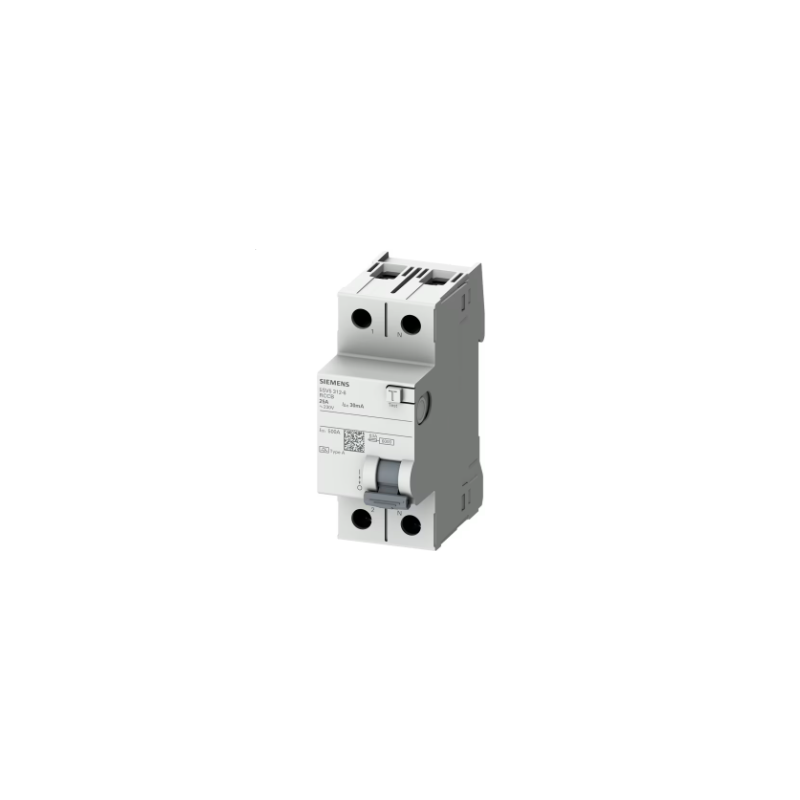

Siemens 5SV53146 Differential Switch 2P 40A 30mA Type A

Technical description:

The Siemens 5SV53146 2-pole earth leakage circuit breaker is designed to provide reliable protection against earth leakage currents in residential or commercial electrical installations. This device automatically interrupts the circuit in the event of a fault, protecting people and equipment. It is suitable for protection against type A leakage currents, which include alternating and pulsating unidirectional currents.

Main features:

• Number of poles: 2
• Rated voltage: 230 V
• Rated current: 40A
• Rated fault current (sensitivity): 30 mA (high protection against earth leakage)
• Rated insulation voltage (Ui): -99999 V (value not applicable in this context)
• Mounting method: DIN rail
• Package: 1 piece
• Differential type: Type A (protection against alternating currents and unidirectional pulsating currents)
• Selective: No
• Operating frequency: 50 Hz

Functionality:

• Advanced Protection: Provides protection against current leakage, contributing to the safety of people and systems.
• Robust and reliable: With a rated current of 40A, it is designed for electrical systems that require high protection.
• Mounting: Easily mountable on DIN rail, ideal for standard electrical panels.

This device is an excellent solution for those who need protection against current leakage in electrical systems, ensuring maximum operational safety and reliability.
