Cameo2.6 hc 5w 24vdc 3000k 17°white

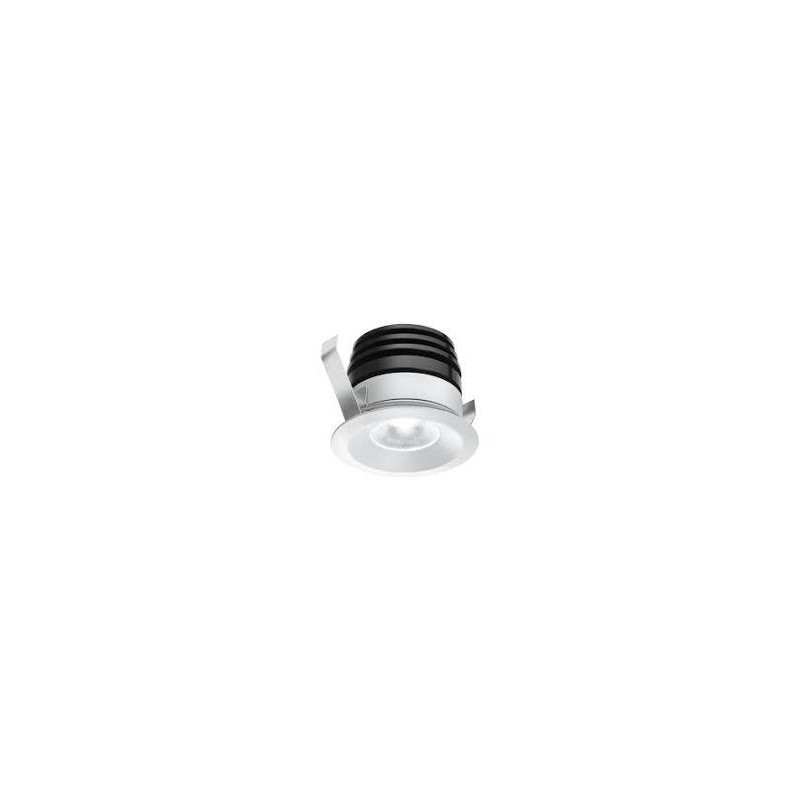

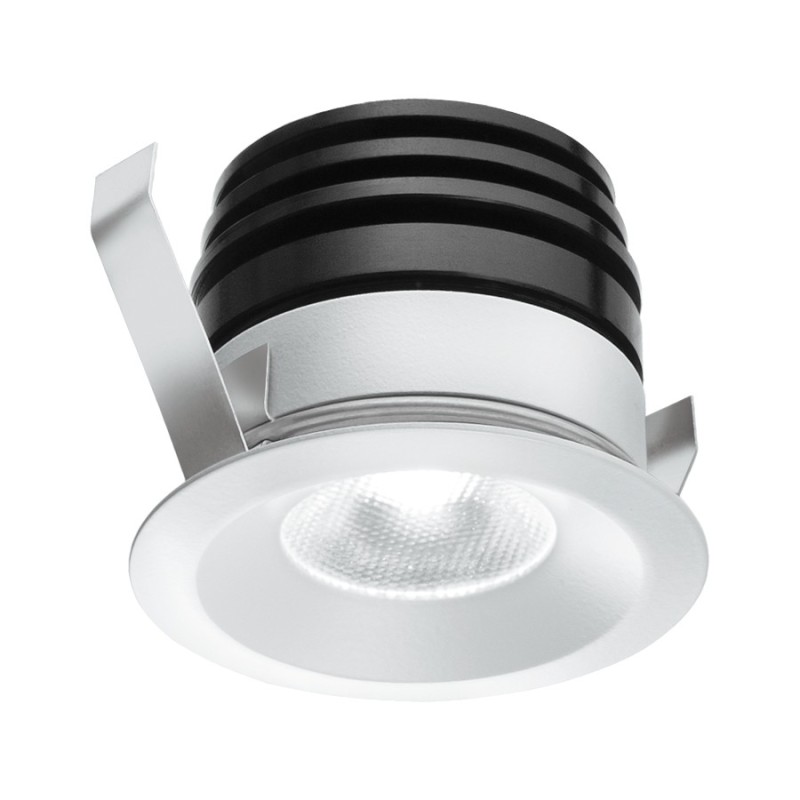

Cameo 2.6 - Indoor Recessed Downlight - 5W 24V DC 3000K 17° Optics White

Cameo 2.6 by L&L Luce&Light is a recessed downlight for interior applications, ideal for installation in plasterboard ceilings, false ceilings and niches. This high-intensity LED fixture, with a power consumption of 5W, offers a warm white light of 3000K, perfect for creating elegant and refined accent lighting. With a modern design and white finishes, Cameo 2.6 integrates perfectly into residential and commercial environments.

Cameo 2.6 Technical Data Sheet
Code: CM2600100050ME

Description: Cameo 2.6 is designed to be a versatile and efficient luminaire, perfect for recessed installations on ceilings and walls. Thanks to the 17° optics and the high colour rendering index (>90), this downlight guarantees a focused and quality light, ideal for highlighting specific details or creating welcoming atmospheres.

Technical Features

Electrical Features:

• Power Consumption: 5W
• Power supply: 24V DC
• Power supply: Power supply not included

Lighting Features:

• Number and Type of LED: 1 High Intensity Power LED
• Average LED life: 50,000 hours L95 B10 (Ta 25°C), ensuring long operating life and reduced maintenance
• LED color: 3000K, warm white light ideal for creating a comfortable and welcoming atmosphere
• Colour Rendering Index (CRI): >90, for faithful and natural colour reproduction
• Binning: 3 step MacAdam, to ensure uniformity in color tone
• Optics: 17°, designed for precise and focused illumination, ideal for accent lighting
• Luminous Flux at Source: 452 lm (3000K)
• Luminous Flux Emitted: 303 lm (3000K, 32° optics)

Mechanical Features:

• Dimensions: Ø49 x 43 mm
• Weight: 150 g
• Finishes: White RAL 9003, for a modern and versatile finish
• Fixing: With fixing springs, for easy installation on various surfaces
• Body Material: Aluminum body and frame, CNC machined for superior quality and long life
• Mounting hole: Ø45 mm, perfect for a discreet and decorative installation

General Features:

• Degree of Protection: IP40, ideal for indoor applications
• Operating Temperature: 0°C to +45°C, suitable for various indoor environmental conditions
• Energy Consumption Class: F, compliant with EU regulation 2019/2015
• Insulation Class: Class III
• Walkable: No
• Driveway: No
• Power Cables: 1.5m PVC cable FROR 2x0.35/0.35 Ø3.5mm included, for easy electrical connection
• Protection Systems:
  • EPS (Electrical Protection System): Protects against reverse polarity, hotplug and overvoltage up to 48V DC, to ensure the safety and durability of the device
• Photobiological Safety: Risk Group 1 according to EN 62471:2006, ensuring safety for eyes and skin

Additional Notes:

• Casambi Management (Optional): Available on request for smart lighting control via Casambi app, allowing you to customize your lighting directly from a mobile device

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

Cameo 2.6 is an ideal solution for those looking for an interior recessed downlight with a modern design, high light quality and easy installation. Thanks to the possibility of smart management via Casambi and the elegant finishes, this luminaire is perfect for illuminating residential, commercial and hospitality environments.
