EARTH DIFFERENTIAL RELAYS TYPE A WITH BUILT-IN TOROID ELRC 1-110 compact with toroid Ø 110mm

Code8300165SeriesELRC 1-110Protection DegreeIP20EAN 138025241154529Packaging (pcs)1StandardsIEC/EN 61010, IEC/EN 61000-6-2,IEC/EN 61000-6-3, IEC/TR 60755,CEI EN 60947-2 ANNEX M

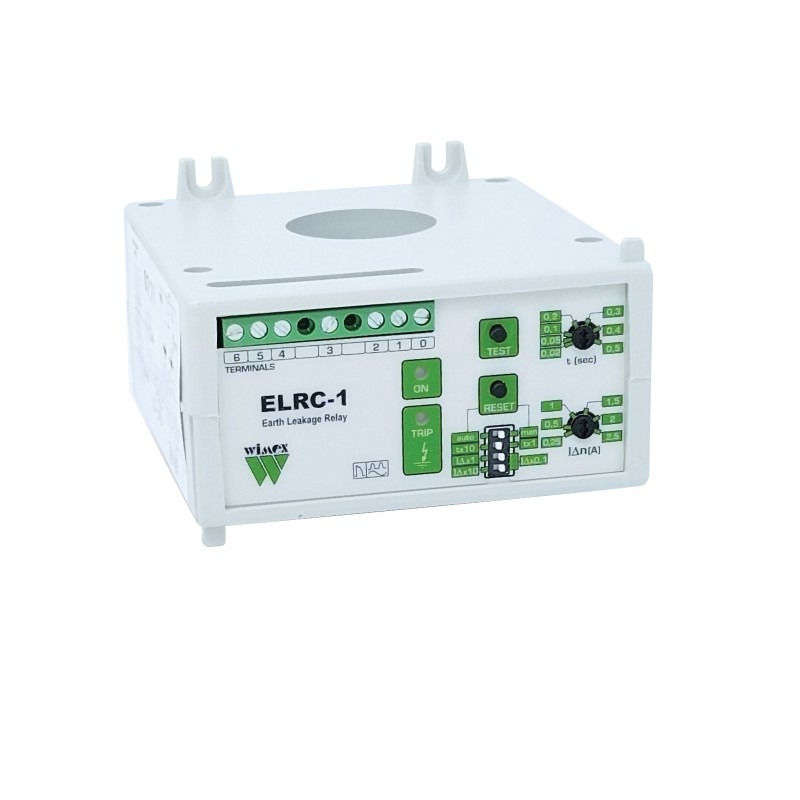

The ELRC1 110 is a type A differential relay with built-in toroid, designed for protection against earth leakage currents. This device is ideal for installation in electrical panels, offering a compact and reliable solution.

Main features:

• Relay type: Type A differential.
• Built-in toroid: Standard diameter of 110mm.
• LED indicators:
  • Green for power (ON).
  • Red for relay trip (TRIP).
• Front buttons: TEST and RESET.
• Resetting: Configurable in automatic or manual mode.
• Mounting: Compact, suitable for fixing on panel mounting plate.
• Degree of protection: IP20 for terminals.

Technical specifications:

• Auxiliary supply voltage: Available in several variants, including 24-48V AC/DC and 110V AC/DC - 230V AC - 400V AC ±20%.
• Operating frequency: 50 ÷ 60 Hz.
• Maximum consumption: 3 VA.
• Tripping current adjustment range (IΔn):
  • 0.025 ÷ 0.25 A (K=0.1).
  • 0.25 ÷ 2.5 A (K=1).
  • 2.5 ÷ 25 A (K=10).
• Intervention time adjustment range (t):
  • 0.02 ÷ 0.5 s (K=1).
  • 0.2 ÷ 5 s (K=10).
• Outputs: 2 changeover contacts 5A at 250V.
• Operating temperature: -10°C to +60°C.
• Storage temperature: -20°C to +80°C.
• Relative humidity: Up to 90%.
• Insulation test: 2.5 kV for 60 seconds.
