Miniplan or.dop led 930 230v white

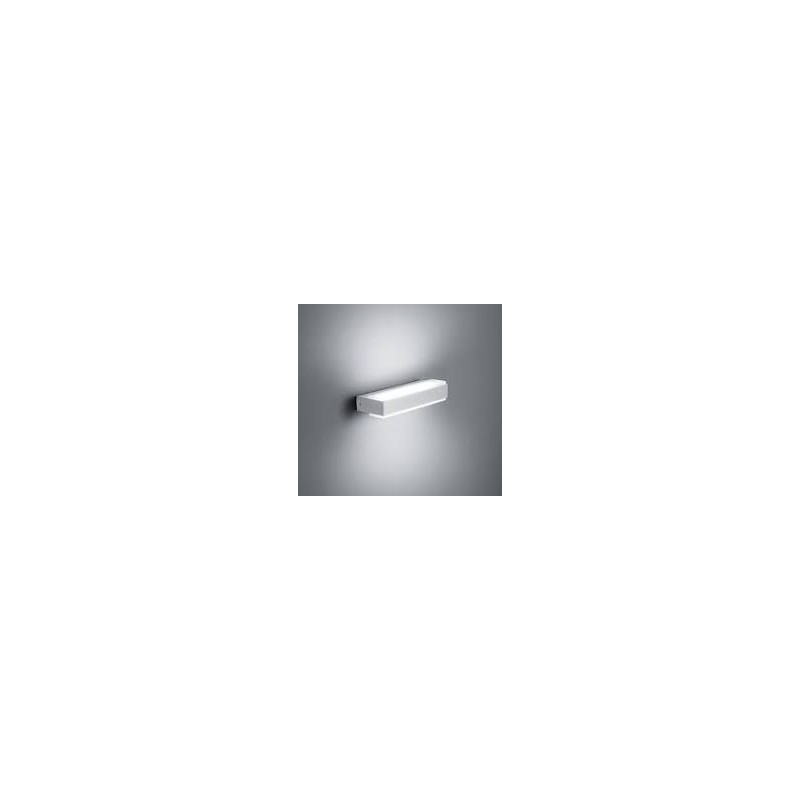

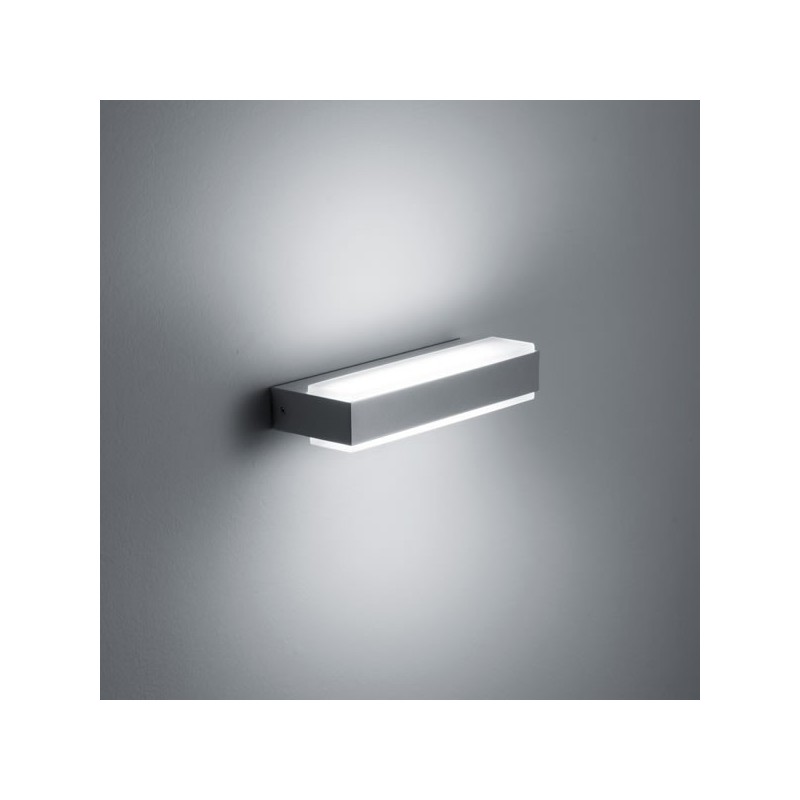

Miniplan Horizontal Double Emission - LED 3000K - IP65

Typology: The Miniplan Horizontal Double Emission (Art. S.3884W) is a LED lighting fixture designed to offer bidirectional lighting . With a compact and robust design, it is ideal for installation in outdoor or indoor environments exposed to atmospheric agents, ensuring high lighting performance with uniform light distribution.

Light Source Features:

• Source Type: High efficiency LED.
• Color Temperature: 3000K (warm light), ideal for creating a cozy atmosphere.
• Source Luminous Flux: 1319 lumens.
• Luminous Flux of the Device: 903 lumens.
• Source Power: 6.6W.
• Total Power Consumption: 8.6W.
• Luminaire ...
• Colour Rendering Index (CRI): 90, ensuring faithful colour reproduction.
• Standard Deviation of Color Matching: MacAdam step 3, for high precision color consistency.
• ULR: 50% (up and down beam).

Power Supply Technical Data:

• Power supply voltage: 220-240Vac, 50/60Hz.
• Operating Voltage: 176-264Vdc.
• Dimming: Not dimmable (ON-OFF).
• Inrush Current: 27A for 250 µsec.
• Maximum number of devices for circuit breakers:
  • 27 devices for one B16A switch.
  • 45 devices for one C16A switch.
• Surge Protection:
  • Between Line and Neutral: 1÷2kV.
  • Between Line/Neutral and Earth: 2kV.

Thermal Performance and Durability:

• LED Lifespan:
  • L80 B10 70,000 hours at 25°C.
  • L80 B10 50,000 hours at 40°C.
• Luminaire Lifespan: Minimum 70,000 hours at 25°C, 50,000 hours at 40°C.
• Operating Temperature: -20°C to +50°C.
• Storage Temperature: -20°C to +60°C.
• Performance Ambient Temperature: Tq 25°C.

Installation Features:

• Electrical Insulation Class: Class II, safety protection guaranteed.
• Degree of Protection: IP65 , total protection against dust and water jets, perfect for outdoor applications.
• Impact Resistance: IK06 , guarantees good mechanical resistance against impacts.
• Power Cable: 1 meter of H05RN-F cable, weather resistant.
• Weight: 1.2191 Kg, lightweight and easy to install.

Applications:

The Miniplan Horizontal Double Emission is ideal for illuminating external walls, entrances, paths or other areas where decorative and functional lighting is required. Thanks to its robustness and IP65 resistance, it adapts perfectly to both internal and external environments, ensuring a warm and comfortable light with a long lifespan.
