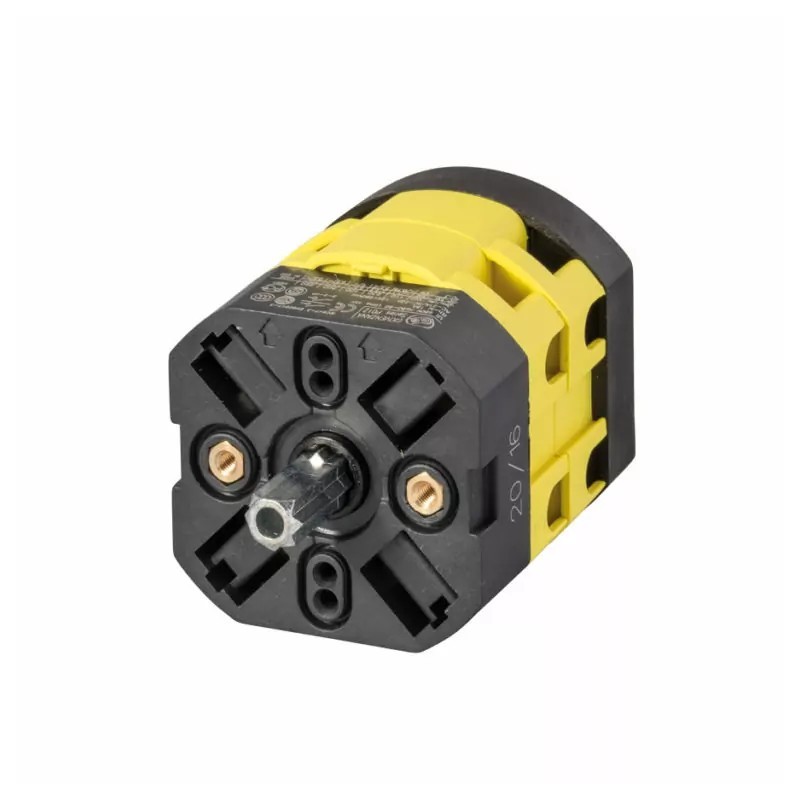

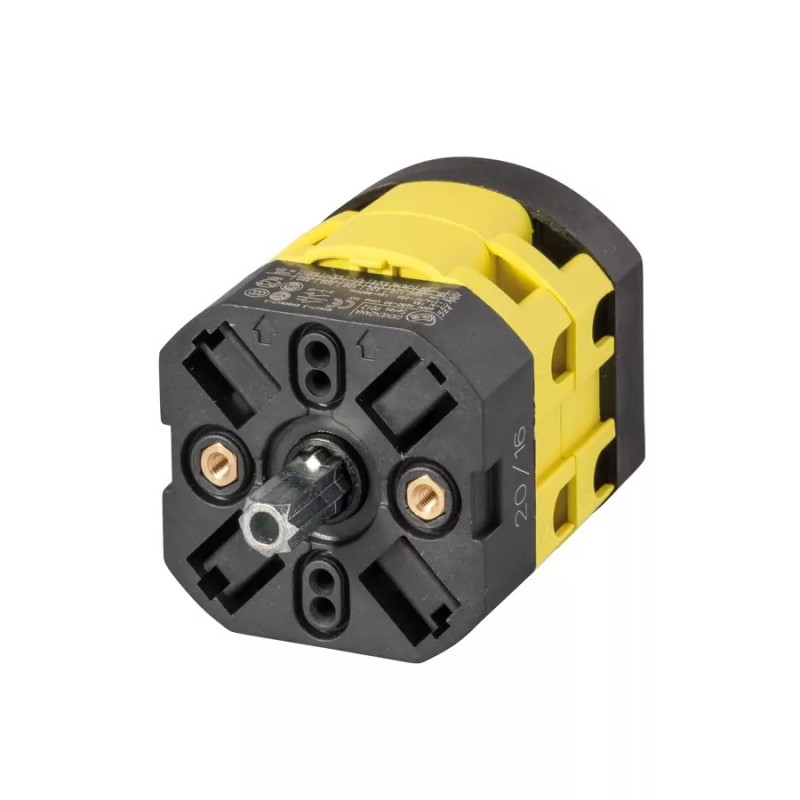

P0160002R Switch 0-1, Phoenix Cam Switch Series, 16A

The P0160002R switch from the Phoenix series is a device designed for industrial automation applications, with a nominal current of 16A . Equipped with a cam switching system, this switch is ideal for use in electrical panels with rear mounting and IP20 protection for the terminals.

Designed with a standard metal shaft and M3.5 screw terminals, the switch offers a robust and reliable solution for controlling electrical circuits. Customizable operating angles, from 30° to 90° , make it flexible and suitable for different applications.

Main features:

• Rated Current 16A: Suitable for industrial applications requiring safe current control.
• Rear Panel Mounting: Designed to be mounted on the rear of the electrical panel, ensuring a clean and safe installation.
• Protection class IP20: Protects terminals from accidental contact, ideal for indoor applications.
• Adjustable operating angles: Customizable with operating angles of 30°, 45°, 60° and 90°, for flexible circuit management.
• M3.5 screw terminals: For a secure and stable connection.
• Standard metal shaft: Ensures robustness and reliability.

Technical specifications:

• Product line: P0 16A
• Model: P0160002R
• Terminal protection class: IP20
• Class V0: Protected live parts
• Connections: M3.5 screw terminals
• Maneuvering angles: 30°-45°-60°-90°
• Fixing: Rear panel

Ideal for:

• Industrial automation applications
• Cam-switched switchboards
• Electric control systems requiring adjustable operating angles

The P0160002R switch is a robust and versatile solution for controlling circuits in industrial environments, ensuring reliability, safety and flexibility in switching operations.
