Product Description:

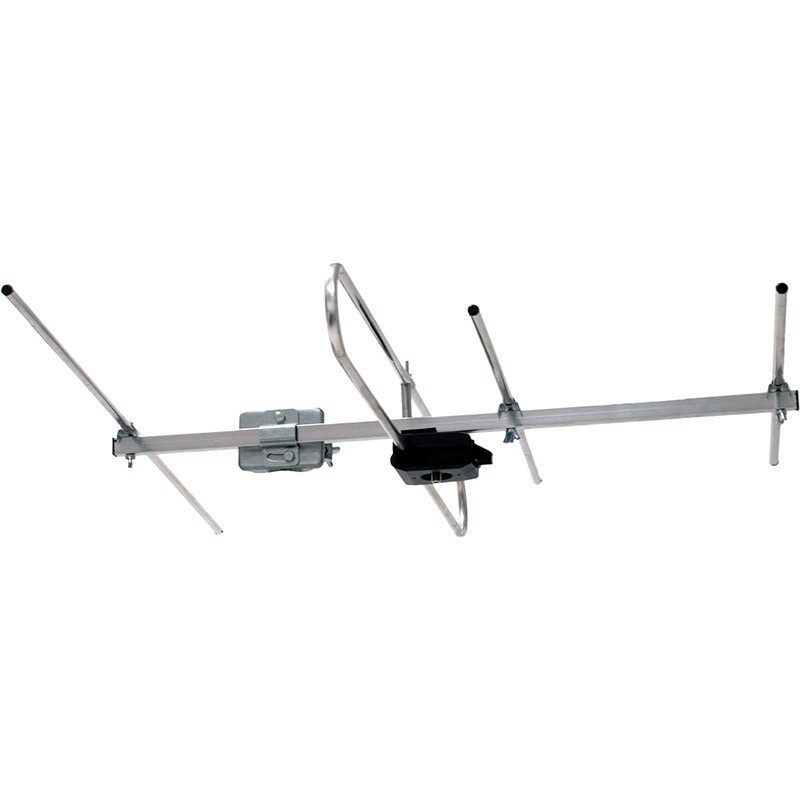

The F4F 4-Element Band III Antenna is a Yagi antenna designed for optimal reception of VHF Band III channels (D to H2), operating in the frequency range of 174 to 230 MHz . Built with high-quality materials and pre-assembled for easy installation, this antenna is ideal for those looking for a robust and high-performance antenna. Thanks to its 10 dBi gain and high directivity, it ensures clear and stable reception in optimal conditions.

Main features:

• Antenna type: Yagi for VHF Band III (channels D to H2).
• Gain: >9 dB, for optimal reception of TV signals.
• Antenna elements: 4 elements, constructed with sturdy 10x08 mm tubes.
• Dipole Structure: Closed dipole with F connector, for reliable and safe connection.
• Pre-assembled: The antenna is completely pre-assembled, reducing installation time.
• Sturdy Material: 18x12x0.8mm load-bearing cradle, for sturdy and long-lasting construction.

Technical specifications:

• Frequency band: 174 to 230 MHz.
• Gain: 10 dBi.
• Forward/Reverse Ratio: 16 dB, for excellent interference reduction.
• Wind resistance:
  • At 130 km/h: 58 N (800N/m2).
  • At 150 km/h: 84 N (1100N/m2).
• Antenna dimensions: Length 68 cm.
• Cradle size: 18x12x0.8mm.
• Size of elements: 10mm tubes.
• Maximum diameter of the support pole: 60 mm.
• Antenna weight: 0.65 kg.
• Packaging: Multiple of 10 units, with packaging dimensions 24x26x112 cm.

Strengths:

• Sturdy Construction: Made of quality materials to withstand harsh weather conditions and ensure long-lasting durability.
• High gain and excellent directivity: The 4-element design ensures a strong and clear signal even in non-optimal reception conditions.
• Easy installation: The antenna comes pre-assembled, ready to be installed without the need for further complex operations.
• Versatility: Compatible with support poles up to 60mm in diameter.

Applications:

The F4F Band III 4-element antenna is perfect for installation in areas with optimal reception conditions, ensuring clear and stable TV transmission. Ideal for homes, condominiums or commercial installations that require a robust and high-performance antenna for receiving signals in VHF band III.

Included in the package:

• F4F 4 Element Band III Antenna (pre-assembled with closed dipole and F connector).
