Hybrid control unit 4 wired zones 200 points

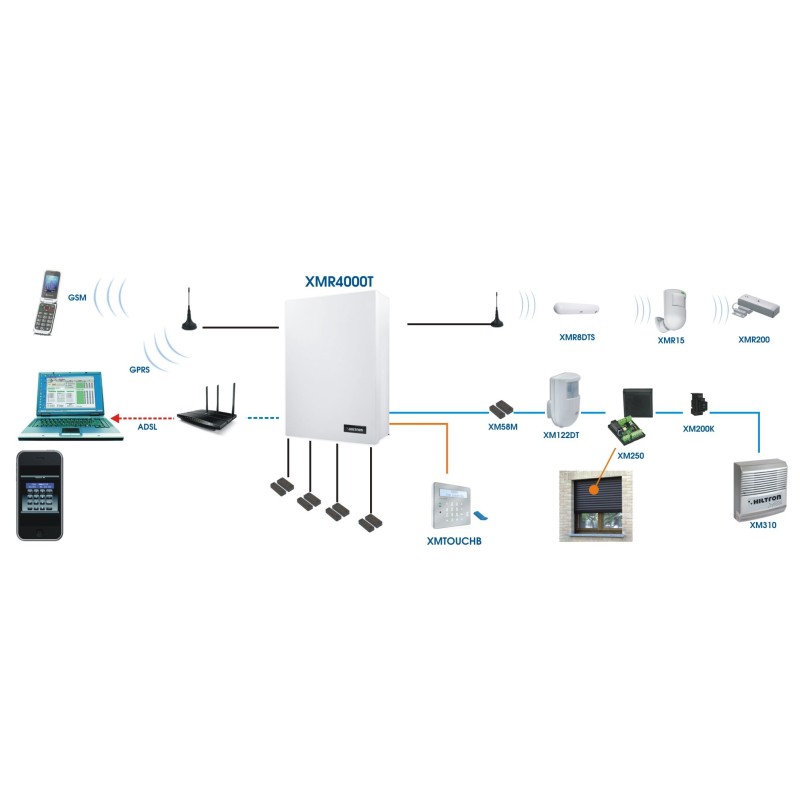

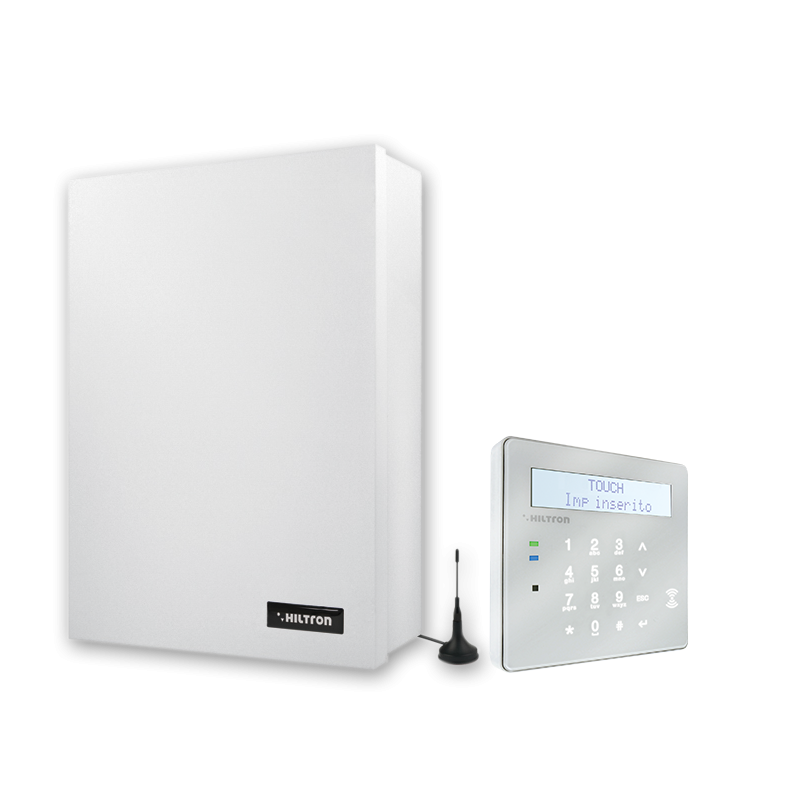

The Hiltron XMR4000T Hybrid Control Panel is an advanced solution for the management of security systems that combines the control of wired zones and wireless devices . Designed to manage up to 200 MPX/wireless points and 4 autonomous systems , this control panel offers high flexibility and connectivity, with integrated GSM and LAN . Programming can be done via the included XMTOUCHB Touch Console or via XMset software via LAN or USB, with support for cloud connectivity (P2P). The control panel complies with CEI EN 50131-1 safety regulations and offers a wide range of advanced features for monitoring and managing sensors and zones.

Main features:

• 4 autonomous systems : Each system can be managed separately with specific configurations for zones and insertion modes.
• 200 MPX/wireless points : Supports up to 200 zones on MPX bus or wireless, allowing for wide and flexible monitoring.
• Integrated GSM/LAN connectivity : Ensures fast and secure communications with remote control capability.

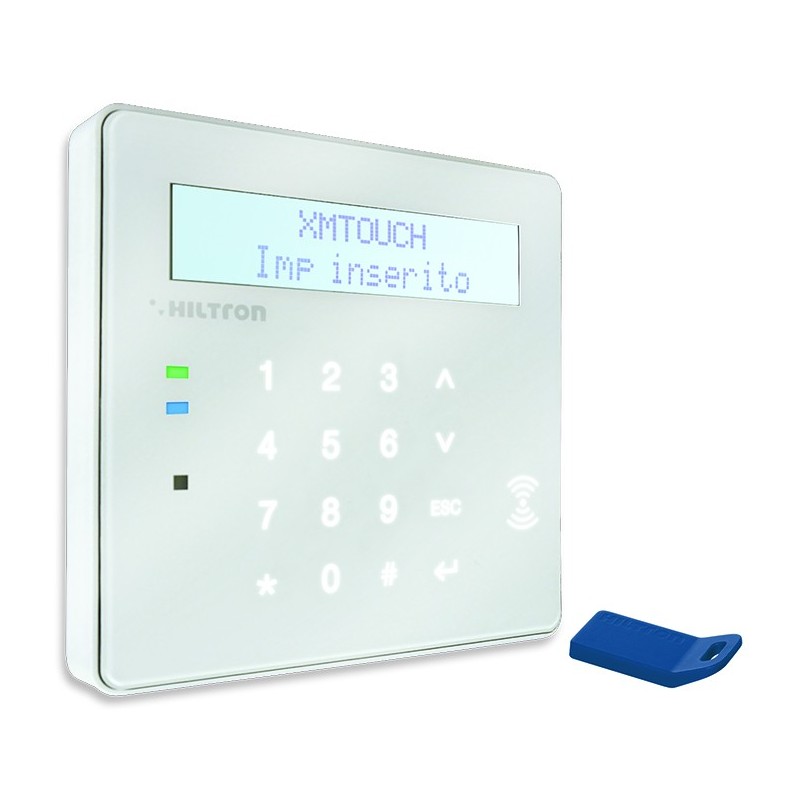

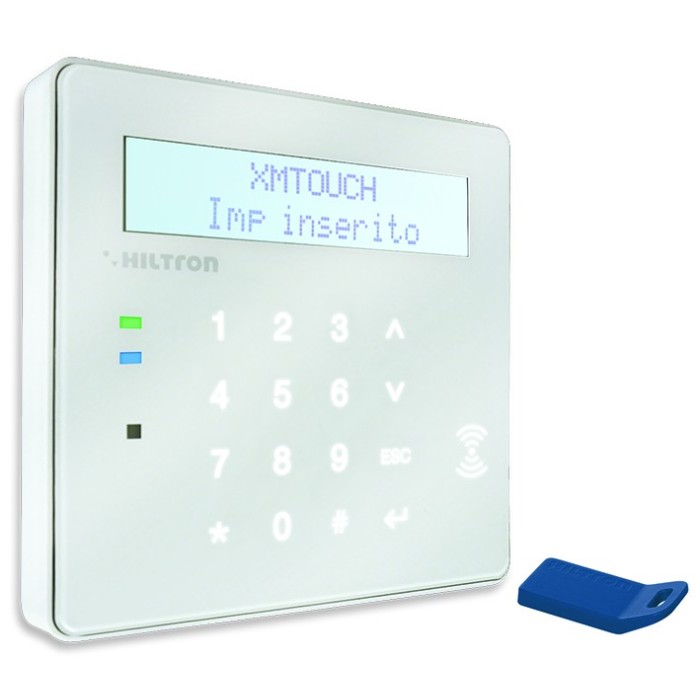

• Advanced programming : Via XMTOUCHB touch console or XMset software via LAN or USB, with cloud monitoring functionality (P2P).
• Remote Control : Ability to adjust the parameters of each individual sensor, including sensitivity, pulse counter, and LED function.
• Extended event memory : Up to 2048 recordable events , for complete monitoring of the security system.
• Safety Grade 1 and Environmental Class 2 : Complies with safety standards for residential and commercial environments.

Technical specifications:

• Zones on MPX bus line/via radio : Up to 200
• Manageable systems : 4
• Areas per plant : 8
• Insertion modes : 8 for each system
• Manageable users : Up to 32, with 8 user levels
• Event memory : 2048
• Power supply voltage : 230V ~ ±10% 50Hz
• Max. current deliverable MPX line : 170mA
• Max. current for service output : 850mA
• Battery charging current control : 500mA max
• Alarm duration : Adjustable from 180 to 600 seconds
• Color : White
• Container : Sturdy metal
• Dimensions :
  • Length: 245mm
  • Height: 285mm
  • Depth: 77mm
  • Weight: 3.1 kg

Applications:

The Hiltron XMR4000T Hybrid Control Panel is ideal for installations in medium and large residential, commercial or industrial environments that require a flexible security system, with separate management of multiple systems and a high number of monitoring points. Thanks to the integrated GSM/LAN connectivity and compatibility with radio and wired devices, this control panel represents a complete solution for those looking for an advanced and easily manageable security system.
