HDCVI CCTV kit with XVR 8 hard dis channels

The THK2810HD HDCVI CCTV Kit is a solution

omplete and reliable video surveillance system, designed to ensure safe and continuous monitoring in both residential and commercial environments. This kit includes an 8-channel XVR, a 1TB hard disk, two 720p HDCVI cameras and all the accessories needed for installation, making it an ideal choice for those who want a security system that is simple and immediate to set up.

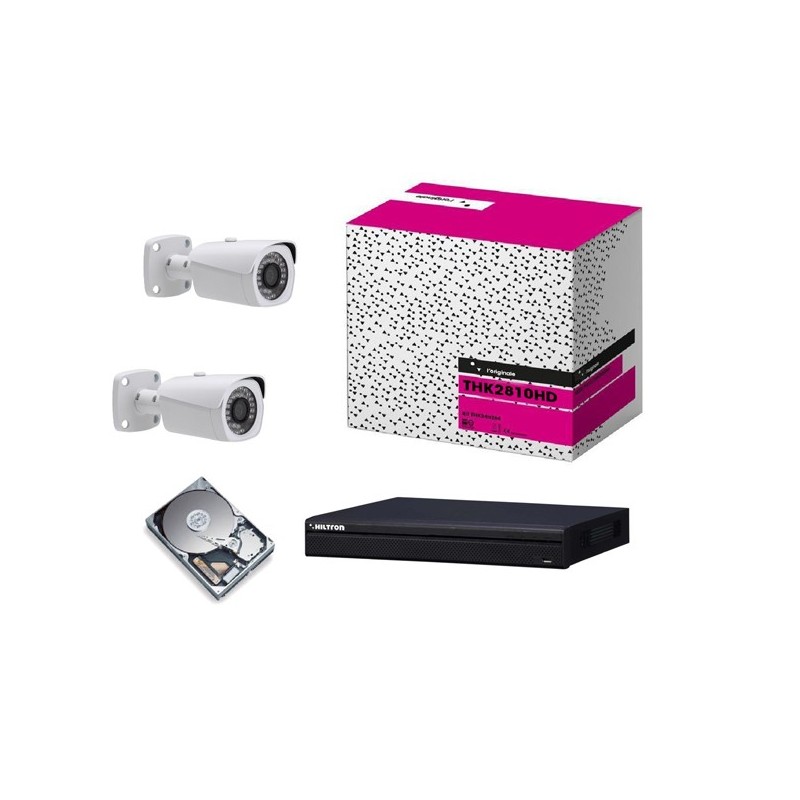

Kit contents:

1. XVR 8 Channel (THV28HD) :

   • Compatibility with various formats: HDCVI, CVBS, HDTVI, AHD and up to 4 IP channels at 5MP.
   • Up to 5MP resolution on IP channels for greater flexibility.
   • Bitrate : 32~6.144Kbps to ensure smooth and detailed video transmission.
   • Multiple video outputs: 1 VGA and 1 HDMI for connecting to monitors.
   • Interfaces : 2 USB ports, 1 RS485 port, 1 LAN 10/100Mbps for network connection.
   • Power supply : 12Vdc with consumption less than 10W.

2. Hard Disk 1TB (THD1TB) :

   • 1TB capacity for storing long video recordings.
   • Optimized for video surveillance systems, ensuring reliability and continuous performance.

3. 2 HDCVI cameras (THC1036HDB) :

   • 1/2.9” Plus Pixel CMOS sensor with 720p @ 25fps resolution.
   • 3.6mm lens for a wide and detailed view of the monitored areas.
   • IR illumination up to 20 meters : Optimal night vision thanks to infrared LEDs.
   • Light sensitivity : 0.01 Lux (0 Lux with LEDs activated), for effective monitoring even in low light conditions.
   • IP66 certification, ideal for outdoor use, resistant to dust and water.

4. Switching Power Supplies (THA12V1A) :

   • 2 x 12V 1A power supplies to ensure safe and stable power supply to the cameras.

5. Installation accessories (ET002) :

   • Set of cables and accessories for connecting and installing cameras and XVR system.

Main features:

• Easy Installation : Complete ready-to-use kit, easy to set up.
• Real-time Monitoring : Allows you to view and record footage from 8 channels simultaneously.
• Reliable Storage : 1TB hard drive included to store long-term recordings.
• Night Surveillance : IR vision up to 20 meters for effective monitoring even in the dark.
• IP66 Protection : Weatherproof cameras for safe outdoor use.

Technical specifications:

• XVR : 8 channels with multi-format support and up to 4 IP @ 5MP.
• Cameras : 720p resolution, 3.6mm lens, IR night vision up to 20 meters.
• Hard disk : 1TB capacity.
• Power supply : 12Vdc for XVR and cameras, power supplies included.

The THK2810HD HDCVI CCTV Kit offers an excellent solution for those who want an efficient video surveillance system, easy to install and with adequate storage capacity for continuous recording.
