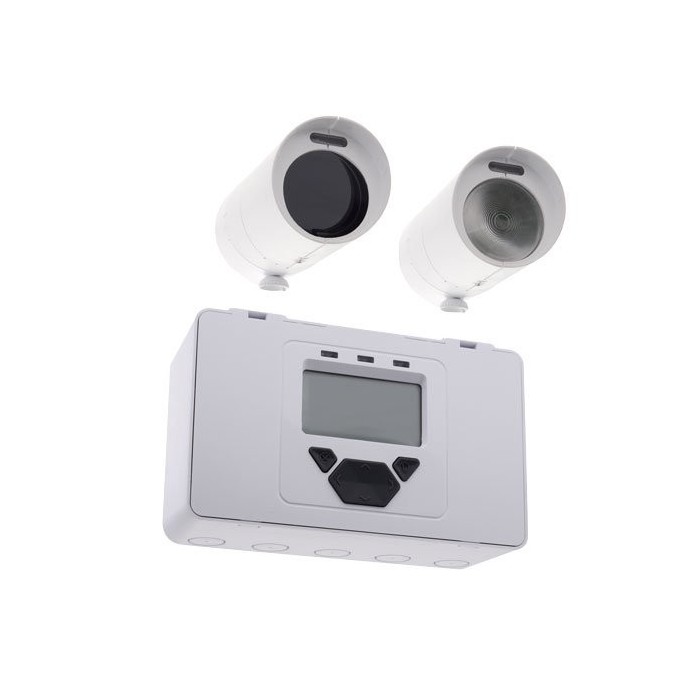

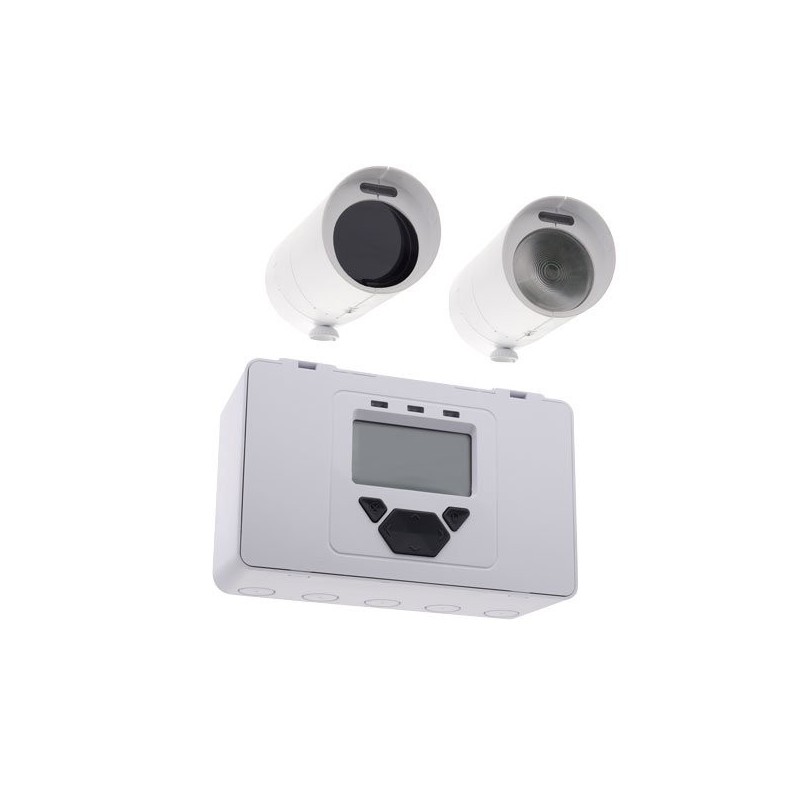

Fireray 3000 Infrared Smoke Detector 5

The Fireray 3000 is an infrared optical smoke detector designed to protect large spaces with high ceilings, where traditional detectors are difficult to access. The system supports up to two detectors per controller, with a configurable range between 5 and 120 meters. Key features include integrated laser alignment, LCD control and Light Cancellation Technology (LCT), which eliminates light interference, such as sunlight or artificial light. AGC technology automatically adjusts the gain to compensate for environmental drift, thus maintaining optimal accuracy over time.

Main technical specifications :

• Supports up to two detectors per controller
• Detection range: 5 to 120 meters
• LCT technology to eliminate unwanted light
• Laser alignment for easy installation
• Low level LCD display control
• Smoke detection and fault reporting via separate relays for each detector
• Programmable sensitivity and delays to customize alarm thresholds
• First Fix function for quick installation
• Powering the transmitter from the controller
• Complies with EN and UL standards.

Applications : The Fireray 3000 is perfect for buildings with reflective surfaces or narrow spaces. Thanks to its aesthetically pleasing design, it fits both modern buildings and historic structures, such as museums or churches with ornate ceilings. It can be integrated into conventional or analogue-addressable fire alarm systems via input modules.

Accessories :

• Protective cages for detectors and controllers
• Anti-condensation heater
• Maintenance and commissioning kit
• Test filter

This advanced system is the ideal solution for applications where protection and accurate smoke detection are critical.
