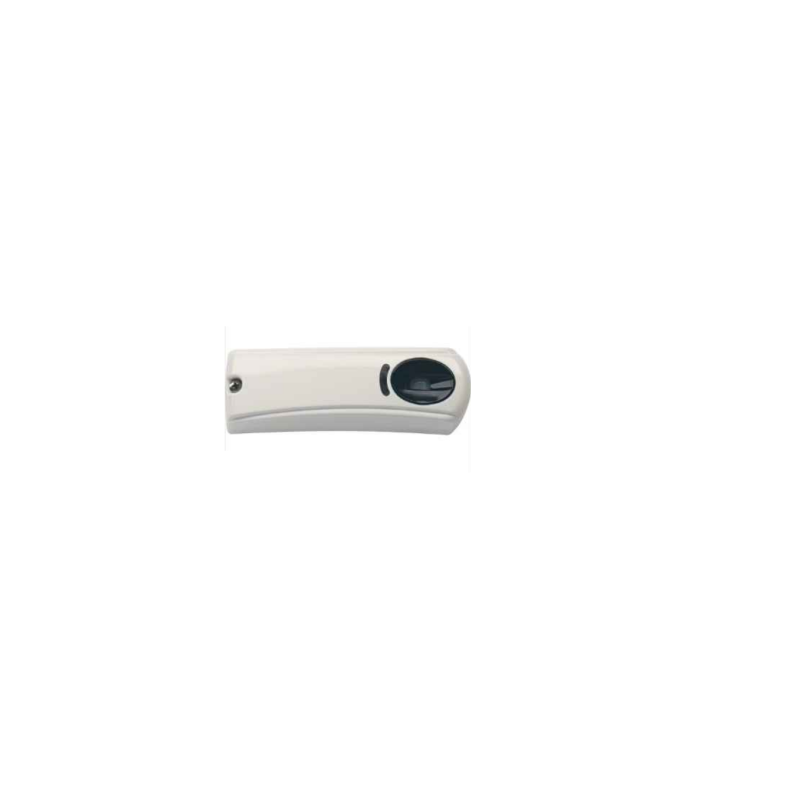

Nstorm Radio 4 Two-Way Sensor

Nstorm Radio 4 Two-Way Sensor

Product Description:

The Nstorm Radio 4 Bidirectional Sensor is a passive infrared sensor designed to monitor indoor environments through a curtain coverage. The sensor uses bidirectional radio technology with multi-frequency FM 868 MHz , ensuring a communication range of up to 200 meters in open field . This device is ideal for integration into wireless alarm systems, offering high efficiency in intrusion detection, together with the possibility of real-time communication with the control panel.

Main features:

• Technology: Passive infrared (PIR) sensor with curtain coverage.
• Infrared coverage: Up to 4 meters with an opening angle of 70° .
• Radio frequency: FM 868MHz multi-frequency bidirectional.
• Radio range: Up to 200 meters in open field.
• Communication: The sensor transmits alarm, tamper, battery status, survival, sensor model, battery voltage and operating temperature signals.
• Power supply: Powered by 3V CR123 lithium battery .
• Battery life: Up to 2 years thanks to the low consumption function.
• Programming: Self-learning and simplified configuration via the control unit or PC.
• Compatibility: Compatible with ESPRIT control panels.

Dimensions:

• Length: 35 mm
• Height: 110 mm
• Depth: 31 mm

Advantages:

• Two-way communication: Ensures constant exchange of information with the control panel, providing real-time updates.
• Low power consumption: Thanks to the power saving function, the battery lasts up to 2 years, reducing the need for frequent replacements.
• Curtain Coverage: Ideal for areas such as hallways or windows, with a precise angle and a range of 4 meters.
• Easy installation: Self-learning and settings directly programmable from the control unit, make installation and configuration quick and easy.

The Nstorm 4 Two-Way Radio Sensor is the ideal choice for reliable and accurate protection, with a wide range of advanced features. Perfect for those who want a versatile and easy to install infrared sensor.
