Mixed Wired/Radio Anti-Theft Kit - AVE KX014-CHAF949C

Mixed Wired/Radio Anti-Theft Kit - AVE KX014-CHAF949C

Product Description:

The AVE KX014-CHAF949C Burglar Alarm Kit is an advanced security solution, combining wired and radio technology for complete protection of homes, offices or commercial establishments. This kit includes a mixed burglar alarm control unit, a master touch screen keypad, a self-powered outdoor siren, and a GSM module for remote control and alarm management via GSM line.

The AF949Plus control panel offers 6 on-board inputs, expandable up to 36, ensuring maximum flexibility and customization possibilities. The AF984TM keypad with backlight and transponder tag reader facilitates system control, while the AF53900 outdoor siren ensures powerful acoustic pressure to discourage intrusion attempts.

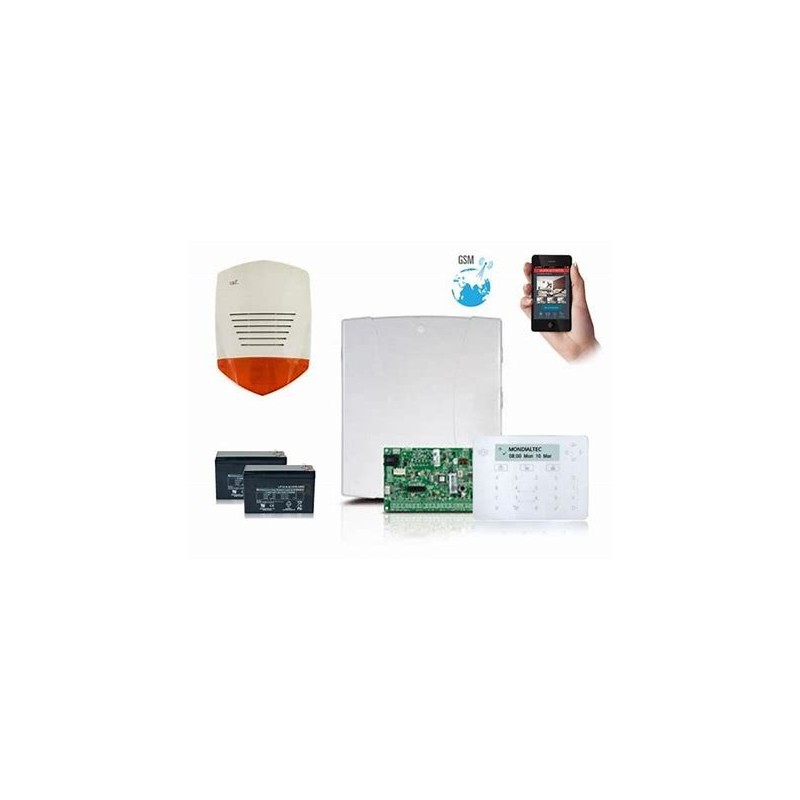

Components included in the kit:

• 1 Mixed Alarm Control Panel AF949Plus : Control panel with 6 on-board inputs expandable up to 36, compatible with wired and radio technology.
• 1 Master AF984TM Touch Screen Keyboard : With backlight and transponder tag reader.
• 1 Self-Powered Outdoor Siren AF53900 : Sound pressure level of 123dB at 1m, with IP34 protection rating.
• 1 AF912 rechargeable battery (12V 6.5Ah) : To power the control unit and ensure operation even in the event of a power failure.
• 1 Rechargeable Battery AF911 (12V 1.8Ah) : For powering the self-powered siren.
• 1 GSM Module AFGSM03 : Allows the transmission of alarms on the GSM line and allows the control of the control unit via SMS.

Technical features:

• Brand: AVE
• Model: KX014-CHAF949C
• Burglar alarm control unit: AF949Plus, with 6 inputs expandable up to 36.
• Keyboard: AF984TM touch screen with transponder reader.
• Siren: AF53900 self-powered with 123dB acoustic power.
• Modules: GSM module AFGSM03 for management via GSM line and SMS.
• Batteries: AF912 and AF911, rechargeable.
• Degree of protection (siren): IP34
• Central power supply: 230Vac

Advantages:

• Flexible Installation: Mixed wired/wireless technology, perfect for customizing the installation according to the needs of the building.
• Remote Management: Thanks to the GSM module, the system can be completely controlled via SMS, with instant notifications in case of alarm.
• Enhanced Outdoor Security: The self-powered siren with high acoustic output ensures effective warning in case of intrusion.
• Continuous Protection: Rechargeable batteries ensure that the system continues to function even in the event of a power failure.

Applications:

The AVE KX014-CHAF949C Burglar Alarm Kit is ideal for homes, offices, commercial premises and all those environments that require a flexible and complete security system, with the possibility of remote management via GSM.

Choose the AVE KX014-CHAF949C Kit for complete and reliable protection, with the flexibility of mixed wired/radio technology and the convenience of remote management via GSM.
