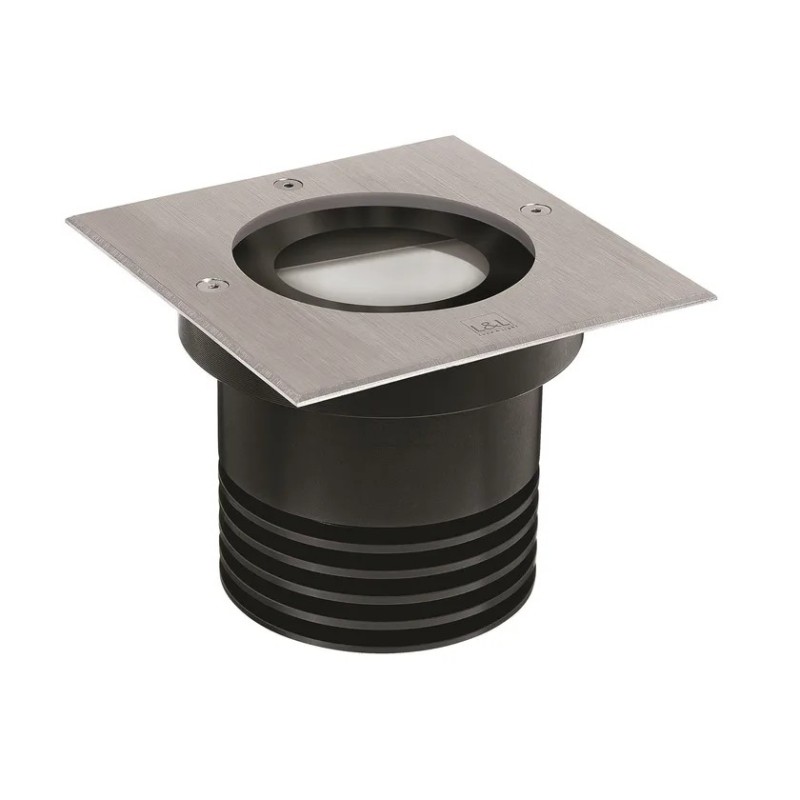

Bright 6.9 - Recessed Spotlight for Outdoor Applications - 10W 230V AC 3000K Stainless Steel

Bright 6.9 - Recessed Spotlight for Outdoor Applications - 10W 230V AC 3000K Stainless Steel

Luminoso 6.9 by L&L Luce&Light is a recessed spotlight designed for outdoor applications, ideal for highlighting pedestrian paths, squares and architectural details. Made with high-quality materials, such as the anodized aluminum body and the AISI 316L stainless steel cover, it is particularly suitable for resisting atmospheric agents and for installation in outdoor environments. Thanks to its IP67 protection rating and drive-over capacity of up to 2000 kg, Bright 6.9 represents a robust and reliable solution for lighting public and private areas.

Bright 6.9 Technical Data Sheet

Collection: Luminous
Type: Recessed spotlight

Description: Bright 6.9 is a recessed uplight designed for the illumination of outdoor surfaces, such as squares, walkways and gardens. The asymmetric optics allow for optimal directional lighting to enhance outdoor spaces in an elegant and functional way.

Technical Features

Electrical Features:

• Power: 10W
• Operating Voltage: 230V AC
• Power supply: Integrated

Lighting Features:

• Number and Type of LED: 1 COB LED
• Average LED life: 50,000 hours L90 B10 (Ta 25°C), ensuring long operating life and reduced maintenance
• LED Color: 2700K, 3000K, 4000K (available on request)
• Binning: 3-stage MacAdam to ensure high color uniformity
• Optics: Asymmetric, ideal for uniformly and precisely illuminating external surfaces
• Luminous Flux at Source: 945 lm (3000K)
• Luminous Flux Emitted: 435 lm (3000K)

Mechanical Features:

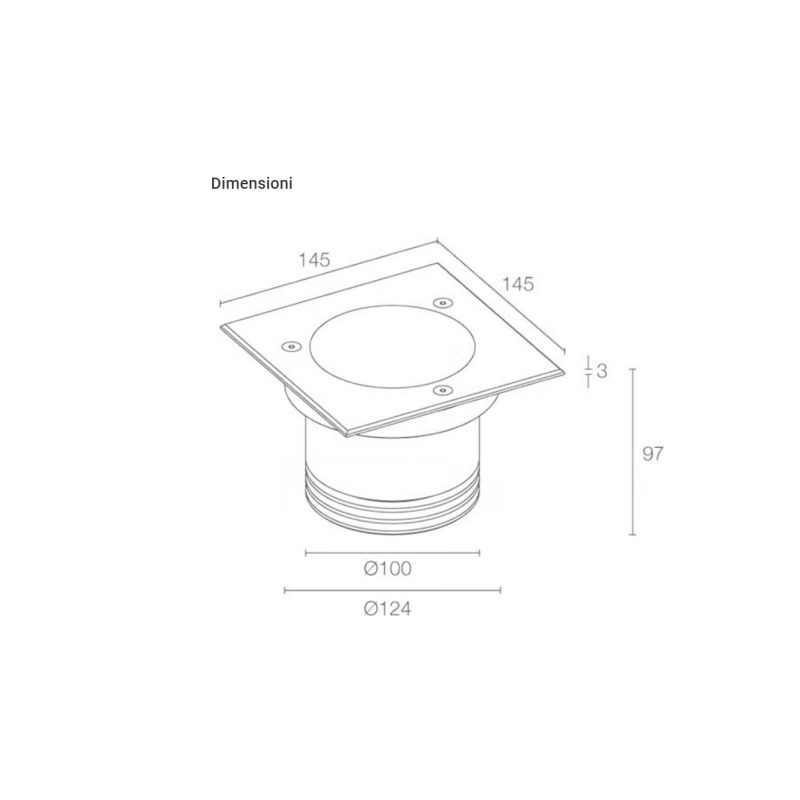

• Dimensions: Ø145 x 145 x 127 mm, perfect for a discreet and decorative flush-mounted installation
• Weight: 1350 g
• Body Material: Anodized aluminum body, which ensures high resistance to corrosion and durability over time
• Cover Material: AISI 316L stainless steel cover, resistant to atmospheric agents and corrosion
• Diffuser: Extra-clear transparent tempered glass, designed to ensure maximum transparency and uniform light distribution

General Features:

• Protection Rating: IP67, offering total protection against dust and temporary immersion in water, ideal for outdoor applications
• Shock Resistance: IK09, ensuring shock resistance and long operating life
• Device Class: Class I
• Walkable: Yes
• Driveable: Yes, up to 2000 kg, perfect for installation in driveable areas such as driveways and yards
• RAL colour: Available on request to customise the aesthetic finish of the appliance

Protection Systems:

• IPS (Intelligent Protection System): Protects against water ingress, splice errors and other electrical phenomena
• SPD (Surge Protection Device): Protection against surges to ensure a longer life of the appliance

Additional Notes:

• Glow Wire Test: Glow wire resistance up to 960°C to ensure the safety of the appliance
• LED Color Availability: Available in 2700K, 3000K and 4000K color temperature to suit different lighting needs

EOL (End Of Line) Test: Tested and approved through end of line tests with verification of correct operation and control of electrical absorption parameters.

The Bright 6.9 is an ideal solution for those who want a robust, drive-over and highly weather-resistant recessed lighting. Thanks to its stainless steel structure, IP67 protection class and the availability of asymmetric optics, Bright 6.9 offers elegant and functional lighting for any outdoor environment.
