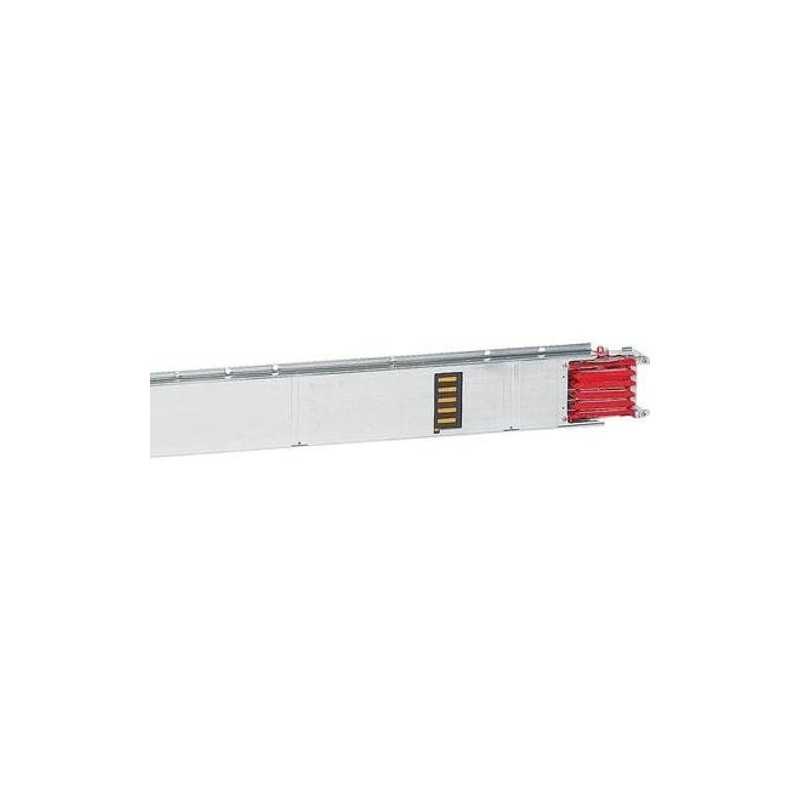

ZUCCHINI MR 630A AL IP55 – 3m Straight Element

The Zucchini MR 630A AL IP55 straight element (code 50400105 ) is an aluminum busbar trunking section designed for electrical distribution in medium power systems. It is part of the Legrand MR series, ideal for industrial, commercial and infrastructural applications that require reliability, modularity and high protection.

🔧 Main technical features

• Rated current : 630 A

• Rated voltage : up to 1000 V AC

• Number of poles : 3 (3 phases)

• Conductors : 4 (3 phases + neutral)

• Conductor material : Aluminum

• Degree of protection : IP55 (protection against dust and water jets)

• Length : 3000 mm

• Dimensions : Width 136 mm × Height 196 mm

• Number of branches : 6 (3+3 side windows)

• Weight : approx. 41.7 kg
