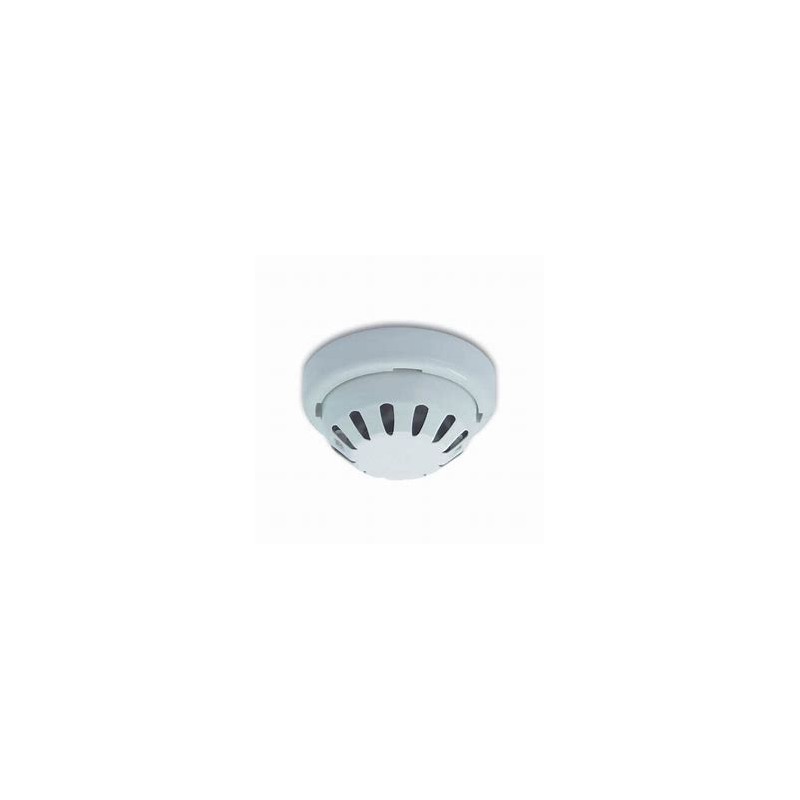

EXSOD Smoke Detector for Fire Detection System

• Brand: EXSOD
• Model: Smoke Detector with Alarm Repeater
• Detector type: Analog
• Nominal supply voltage: from loop 25/15Vdc
• Maximum current consumption: 25mA
• Minimum current consumption: 90µA
• Intervention threshold: 60°C
• Enclosure protection rating: IP43
• Dimensions (Height): 53 mm
• Dimensions (Diameter): 110 mm
• Certifications: Complies with EN 54 part 7/9

Description:

The EXSOD Smoke Detector is an advanced safety device designed to detect the presence of smoke and provide an early warning in the event of a fire. Ideal for installation in commercial, industrial and residential buildings, it offers reliable performance and compliance with international safety regulations.

• Alarm Repeater: This detector is equipped with an alarm repeater system (outside the door) which ensures effective signalling even in noisy environments or far from the main device.

• Magnetic Test Activation: Functional tests can be performed via a magnetic activation system, making it easier to check the operating conditions of the detector.

• Dual LED Indicator: The detector is equipped with dual LED for clear display of working and alarm status, visible from different angles.

• Compliance with EN 54 part 7/9: The device complies with European safety standards for fire detection systems, ensuring reliable and safe performance.

Technical features:

• Nominal supply voltage: from loop 25/15Vdc
• Maximum current consumption: 25mA
• Minimum current consumption: 90µA
• Intervention threshold: The detector intervenes at a temperature of 60°C, activating the alarm for the safety of the occupants.
• IP43 protection rating: Protection against solid objects with a diameter greater than 1 mm and splashes of water, making the detector suitable for indoor use.

Dimensions:

• Height: 53 mm
• Diameter: 110 mm

Advantages:

• Advanced Security: Early detection of smoke and fire to protect people and property.
• Easy Testing and Maintenance: With the magnetic test activation, it is easy to check if the device is working properly.
• Compact Design: Takes up little space, making it ideal for installation in different environments.
• Clear Signaling: Dual LED indicator allows you to easily monitor the detector status.

Applications:

• Fire Detection Systems for Commercial and Residential Buildings
• Installations in offices, shops, warehouses and industries
• Environments requiring high reliability in fire alarm systems

Included in the package:

• 1x EXSOD Smoke Detector
• Installation and instruction manual
