Zumtobel Panos-a LG 2/18W TC-TELI EVG - Recessed Downlight Ceiling Light

Zumtobel Panos-a LG 2/18W TC-TELI EVG - Recessed Downlight Ceiling Light

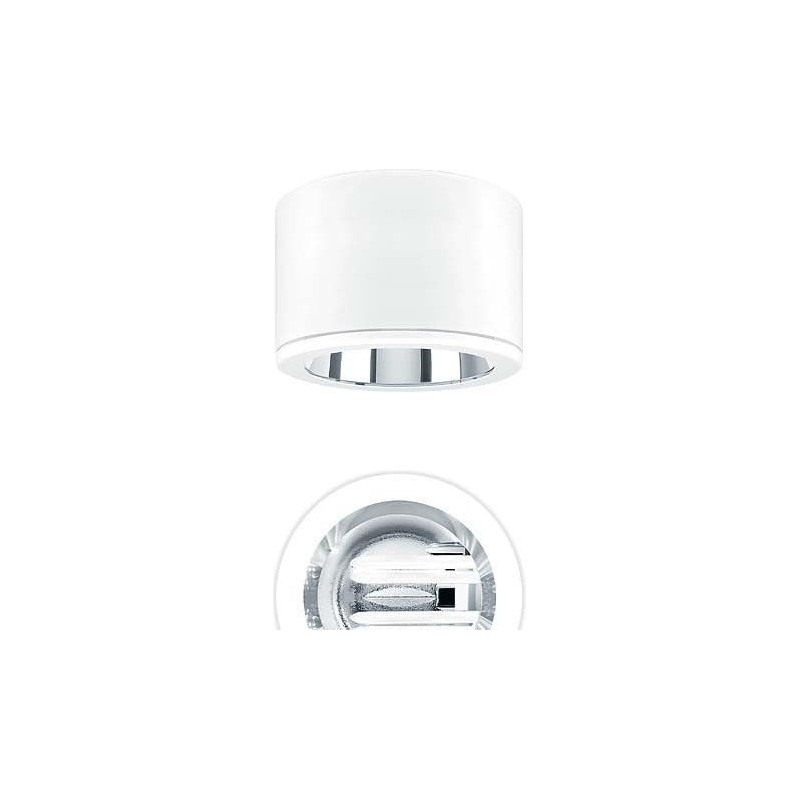

The Zumtobel Panos-a LG 2/18W is a recessed downlight with CFL lamps that combines elegant and functional design with high-quality lighting. This ceiling light is designed for installation in office, retail and commercial ceilings, offering a symmetrical and direct light distribution with a glossy white finish.

Technical Features

• Bulb power: 2 x 18W, total 36W, suitable for general lighting of indoor environments.
• Bulb type: CFL (compact fluorescent lamps) with G24q-3 or GX24q-3 fitting for efficient and energy-saving lighting.
• Reflector: Made of smooth, highly reflective aluminum and designed to ensure uniform light distribution without iridescence effects. The reflector is glare-free, compliant with the requirements for working environments such as offices (UGR 16/19).
• Mounting system: Quick and easy installation without the use of tools thanks to the bayonet system and the 5-pin quick-fit connectors , which facilitate the electrical connection.

Structure and Materials

• Body Material: Made of UV-resistant polycarbonate for superior durability, with a glossy white finish for a clean, modern aesthetic look.
• Dimensions: 230 x 160 mm (L x W x H), suitable for small installation spaces.
• Weight: 1.45kg, lightweight and handy for easy installation.

Electrical Features

• Integrated electronic ballast: Equipped with an electronic ballast for efficient energy management, ensuring immediate and stable ignition of the bulbs.
• Rated voltage: 220-240V, compatible with European power supply standards.
• Non-dimmable: The system does not support dimming.

Light Distribution

• Symmetrical and direct distribution: Perfect for applications requiring uniform and well-distributed lighting.
• Wide beam angle: Ideal for commercial or office environments, ensuring complete light coverage without glare.

Classification and Security

• Protection class: Class I, compliant with electrical safety standards.
• Degree of protection IP20: Suitable for indoor environments, with protection against the ingress of solid objects greater than 12.5 mm.
• Glow Wire Test: Complies with IEC 695-2-1 standard, resistant up to 850°C for 5 seconds, for added safety against fire risks.

Main Benefits

• Easy installation : Tool-free assembly thanks to the bayonet system and quick connectors.
• Efficient Lighting : Uses 18W CFL bulbs for energy-efficient lighting.
• Elegant and functional design : White finish and aluminum reflector for uniform, glare-free lighting.

The Zumtobel Panos-a LG is the ideal choice for those looking for an efficient, easy-to-install downlight capable of
