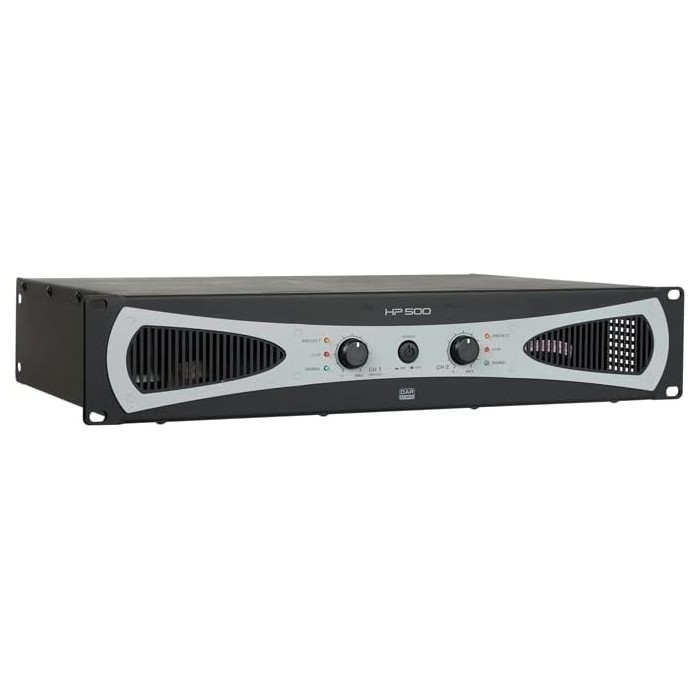

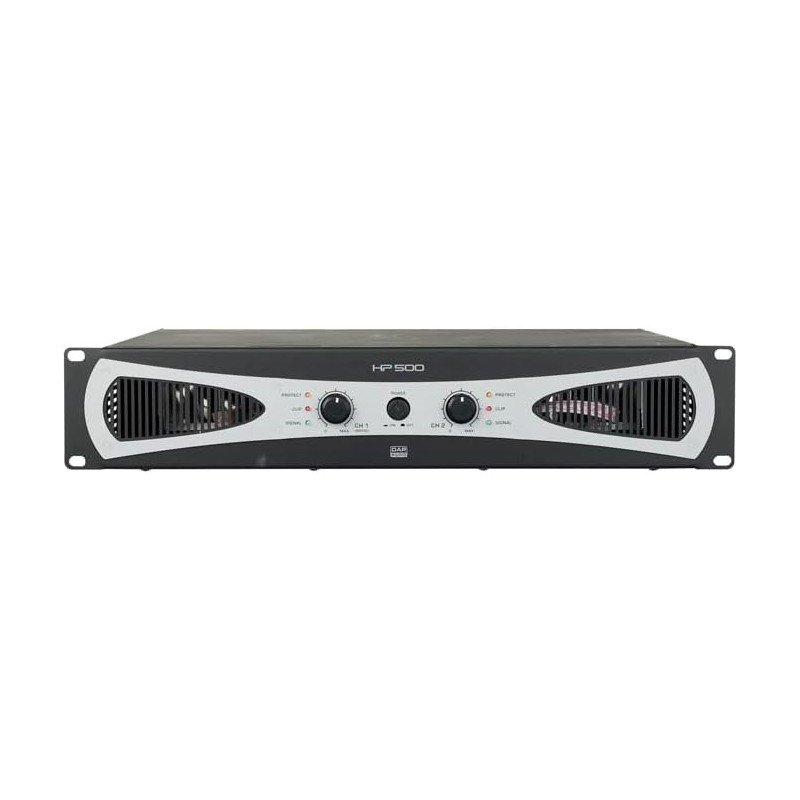

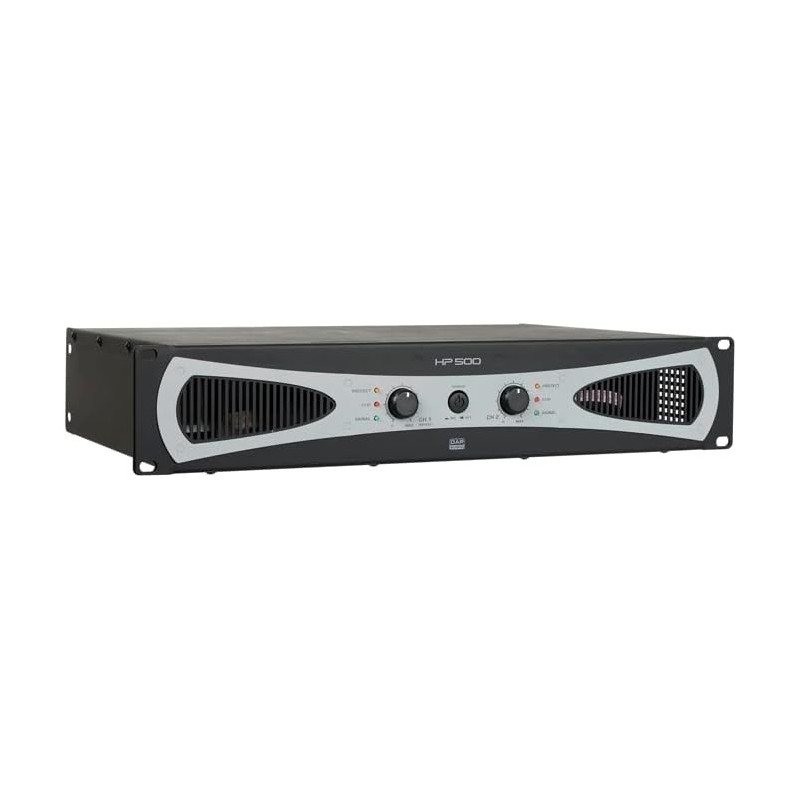

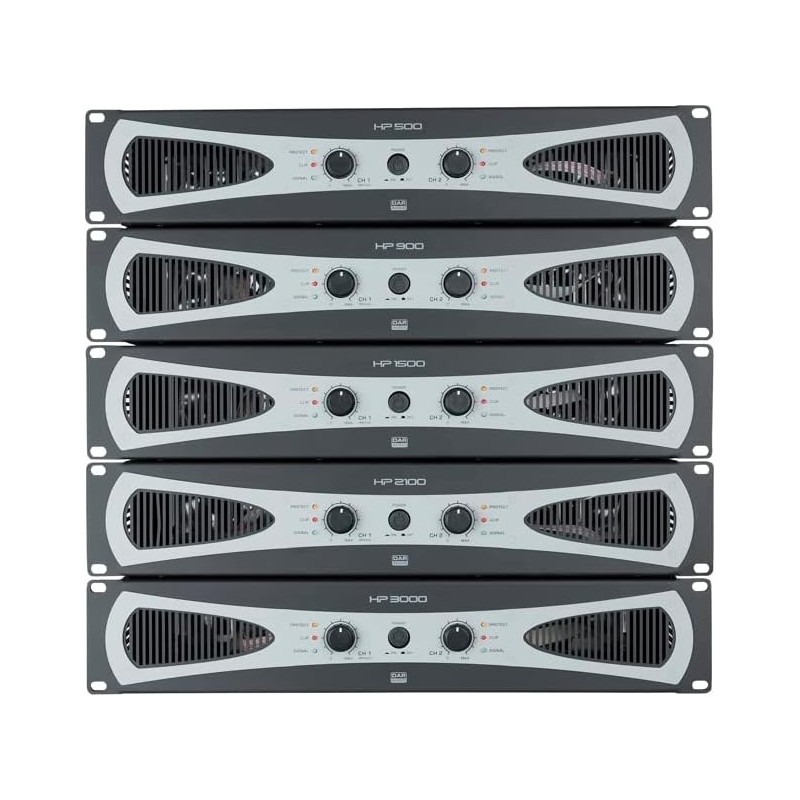

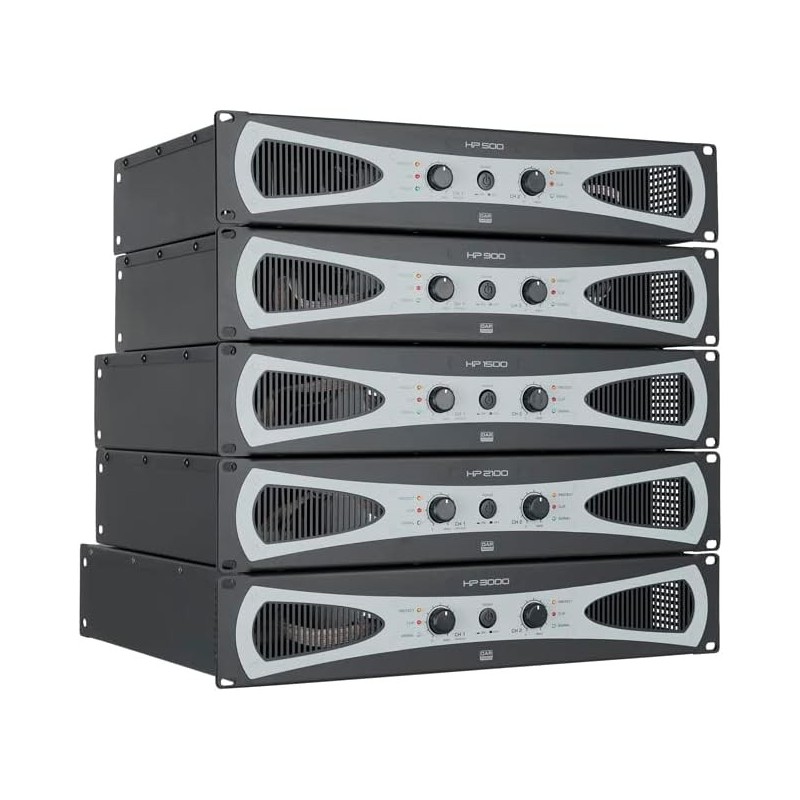

DAP-Audio HP-500 2U Power Amplifier 2x200W RMS

DAP-Audio HP-500 2U Power Amplifier 2x200W RMS

The DAP-Audio HP-500 amplifier is a powerful and versatile solution, ideal for use in pubs, bars and parties. Designed to offer excellent audio quality, it is perfect for powering audio systems in entertainment environments, ensuring power and reliability to accompany any event with your favorite songs.

Technical Features

• Output Power:
  • Stereo 4 Ohm: 2x 200W RMS , for balanced and powerful audio quality.
  • Stereo 8 Ohm: 2x 150W RMS , suitable for lighter audio setups.
  • Bridge 8 Ohm: 1x 400W RMS , for concentrated power output in bridge mode.
• Frequency response: 10Hz to 20kHz , with an accuracy of +/- 1dB, ensuring a wide frequency range for rich, detailed sound.
• Total Harmonic Distortion (THD): less than 1%, for clean sound even at high volumes.
• Signal to Noise Ratio: Greater than 100dB A-weighted, minimizing background noise for clearer sound.
• Crosstalk: Greater than 75dB , ensuring clean and interference-free channel separation.
• Damping factor: greater than 250 into 8 Ohms , for accurate speaker control and precise bass response.

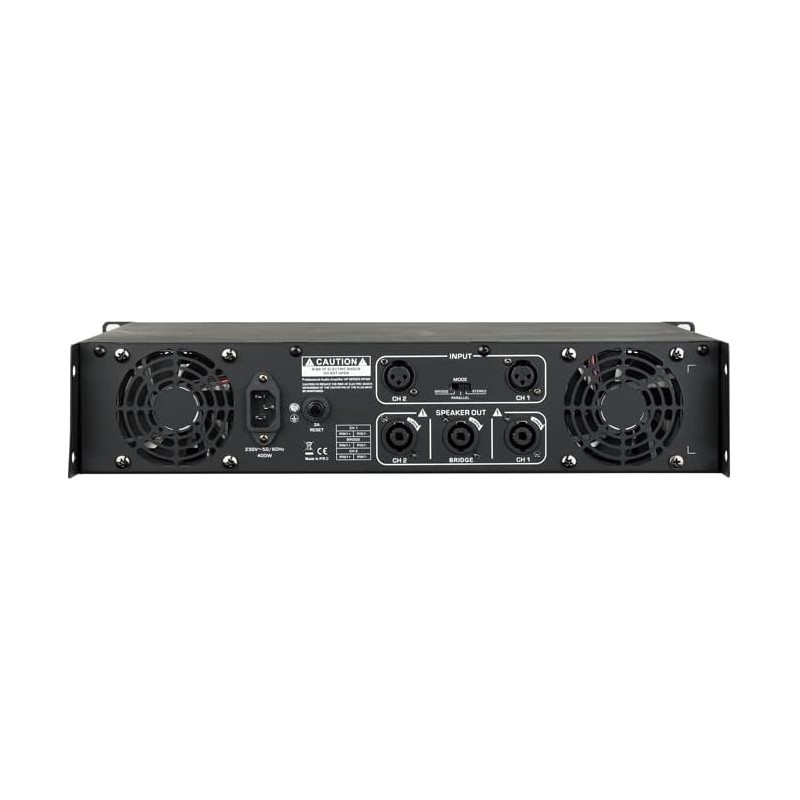

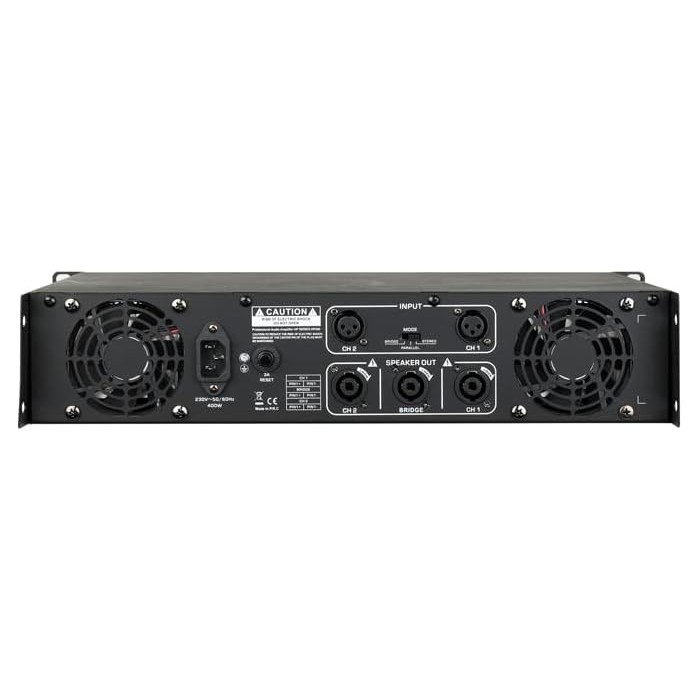

Connectivity and Control

• Output Mode: Selectable between Stereo, Parallel and Bridge , to suit different audio configurations.
• Input connectors: 3-pole XLR , for a balanced, interference-free audio connection.
• Output connectors: Speakon , for a secure and stable connection to the speakers.
• Input sensitivity: 0.775V (+/-1dBv), with input impedance of 20kOhm (balanced) and 10kOhm (unbalanced).

Technology and Security

• Amplifier technology: Class AB , for a combination of efficiency and sound quality.
• Built-in protection: The HP-500 is equipped with a protection system against:
  • Overheating
  • Overload
  • Short circuit
  • Direct Voltage (DC)
  • Fixed clip limiter , which prevents unwanted distortion when the amplifier reaches its power limit.

Cooling and Durability

• Cooling System: Forced air cooled via axial fan, with airflow from front to side, to maintain an optimal operating temperature even during long periods of intense use.
• Rugged Construction: The HP-500 is designed to withstand heavy use in entertainment environments, with solid construction and durable materials.

Dimensions and Weight

• Dimensions: 483 x 310 x 88 mm, a compact size that easily fits into standard 19-inch (2U) racks.
• Weight: 8kg, light and easy to carry.

Diet

• Input voltage: 210-240VAC, 50/60Hz, compatible with most European electrical networks.
• Power connector: IEC , for a stable and secure connection.

Main Benefits

• Powerful and versatile: 2x 200W RMS into 4 Ohm, ideal for use in clubs and parties.
• Safe and Reliable: Built-in protections against overheating, short circuit and overload.
• Compact and easy to install: 2U rack mountable design, with efficient cooling system.

The DAP-Audio HP-500 is the ideal choice for those looking for a reliable, efficient and easy to install power amplifier, perfect for events and entertainment environments. Thanks to its versatility and integrated protections, this amplifier guarantees you an audio experience without compromises.
