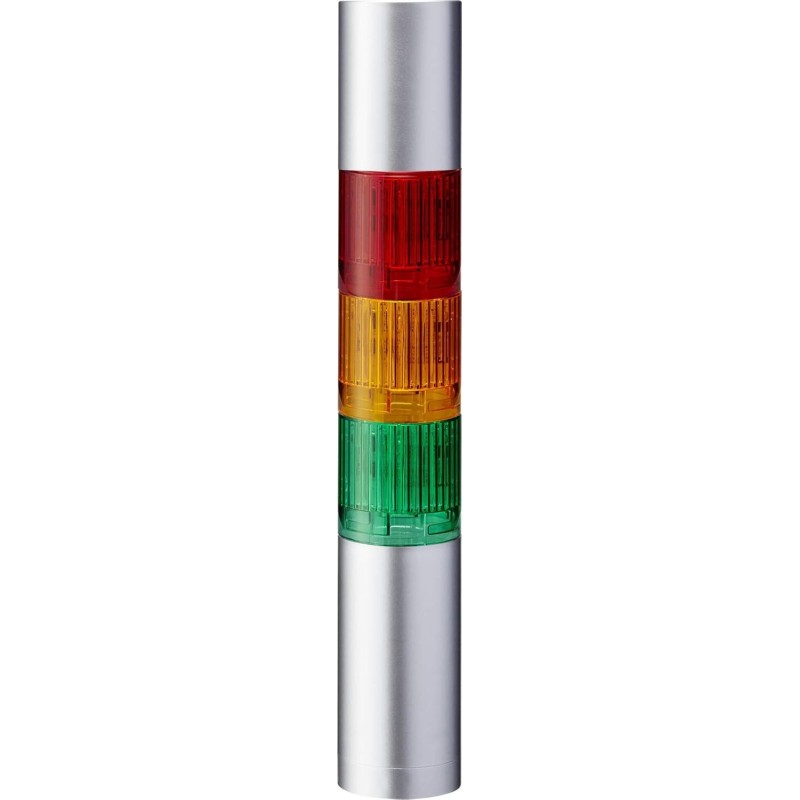

PATLITE LR4-302WJBU-RYG - LED Signal Tower with Buzzer, ATEX Zone 2, D40mm

• Brand: PATLITE
• Model: LR4-302WJBU-RYG
• Product Type: LED Sign Tower with Buzzer
• Diameter: 40 mm
• Number of modules: 3 LED modules (Red, Yellow, Green)
• Built-in Buzzer: Yes
• Power supply: 24V DC (check for other options)
• ATEX Certification: Suitable for Zone 2 (explosion-prone environments)
• Material: Impact and corrosion resistant polycarbonate
• Degree of protection: IP65 (resistant to dust and water jets)
• Installation: Turret with cable included
• LED Module Color: Red (R), Yellow (Y), Green (G)

Product Description:

The PATLITE LR4-302WJBU-RYG is a LED signal tower with integrated buzzer, designed for applications in industrial environments, especially those classified as ATEX Zone 2 , where there is a risk of explosion due to gas or dust. With a diameter of 40 mm , this tower offers reliable visual and audible indication to monitor the status of machinery, plants or systems in critical conditions.

• ATEX Zone 2 Certified : The turret is certified for use in hazardous environments classified as Zone 2 , where there is a risk of explosion due to the presence of gases or vapors. This makes it ideal for industrial environments such as chemical, petrochemical, pharmaceutical and other hazardous areas.

• High Visibility LED Modules : The tower is equipped with 3 LED modules (Red, Yellow, Green) that provide clear and visible signaling even from a distance. The LEDs are designed for long life and low power consumption, making the tower energy efficient.

• Built-in Buzzer : In addition to the visual signaling, the LR4-302WJBU model includes an audible buzzer for acoustic warnings, with adjustable power that ensures a clear signal even in noisy environments.

• Sturdy and durable construction : The turret is constructed of high-strength polycarbonate , a material resistant to impact and corrosion, ensuring a long life even in harsh environments. The IP65 protection rating ensures that the turret is resistant to dust and water jets, allowing it to be used outdoors or in adverse weather conditions.

• Easy to install : The turret is easy to install thanks to the standard mounting system and the included cable . It can be mounted on machinery, control panels or other industrial systems, ensuring quick and efficient signaling.

Applications:

• Industrial and chemical plants : Perfect for monitoring the status of machinery or industrial processes in environments classified as ATEX Zone 2 .
• Explosive environments : Can be used in refining, oil and natural gas extraction plants, where it is essential to immediately report any dangers or faults.
• Industrial Automation : Suitable for automated production lines, robotic plants or control systems, where clear visual and acoustic signaling is required.

Technical features:

• Diameter: 40 mm
• Number of LED modules: 3 (Red, Yellow, Green)
• Built-in Buzzer: Yes
• Power supply: 24V DC
• ATEX Certification: Yes, Zone 2
• Material: Impact resistant polycarbonate
• Degree of protection: IP65
• Buzzer Sound Power: Adjustable
• Mounting: Turret with cable included

Advantages:

• ATEX Certified : Designed for explosive environments, the turret offers safety and reliability in critical industrial environments.
• Visual and audible signaling : The high visibility LED modules and the integrated buzzer ensure immediate and clear signaling.
• Rugged Construction : Resistant to shock, corrosion and adverse weather conditions, the turret is ideal for outdoor installations or in harsh environments.
• Easy to install : The included cable mounting system allows for quick and easy installation on machinery and systems.

Included in the package:

• 1x PATLITE LR4-302WJBU-RYG Turret (Red, Yellow, Green) with Built-in Buzzer
• 1x Connection cable
• User and installation manual
