Automation for swing shutters APRIMATIC BUONGIORNO single leaf 43400/802

Complete automation for APRIMATIC BUONGIORNO single-leaf swing shutters code 43400/802.
Buongiorno is the automation for swing shutters of dimensions that allow application to any type of window even in the presence of security grates or mosquito nets.

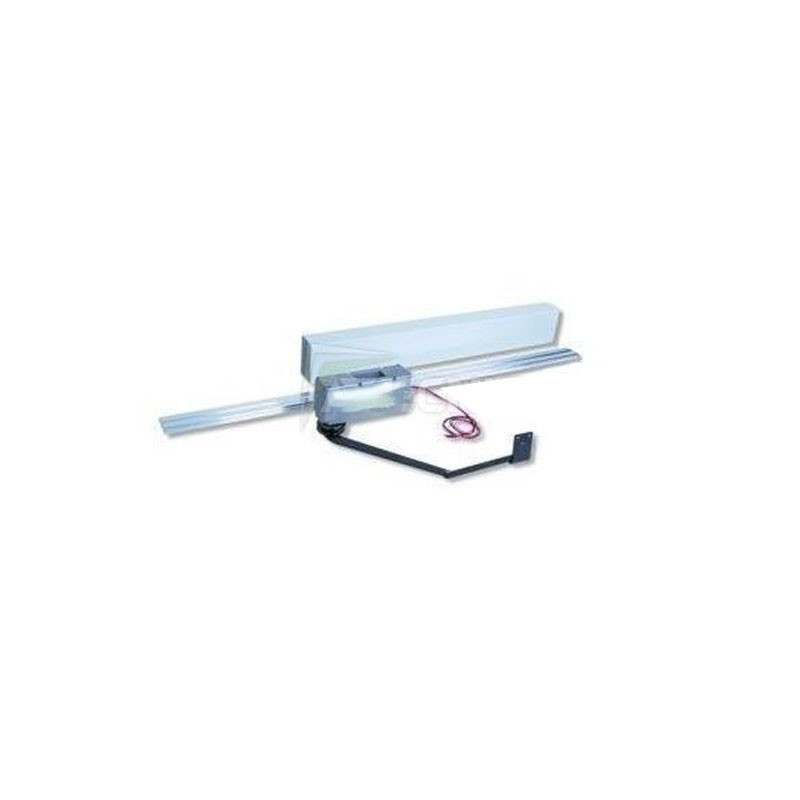

It consists of an aluminium crosspiece which acts as a support for the gearmotor unit (two in the case of a double door) and a PVC casing.
The crosspiece and casing can be cut to allow application to shutters of different sizes.
Buongiorno can also be easily installed on existing shutters, without structural modifications to the shutters or masonry work.
With Buongiorno you can open and close the shutters of your home with the simple press of a button without ever opening the window.
In winter, when it's cold, raining or snowing, in summer, when we have installed a mosquito net on our window and in all the positions where opening and closing the shutters becomes inaccessible, Buongiorno comes to our aid by allowing us to comfortably operate our shutters.
Buongiorno is equipped with an electronic clutch system with adaptive control of the absorbed current, which in the event of contact of the door with an obstacle interrupts the movement of the automation, thus safeguarding the safety of the user and the integrity of the gearmotor. This device also saves the installer from tedious end-of-travel adjustments.
In the event of a power failure, the end user can immediately open and close the shutter without having to perform complicated unlocking maneuvers.
Finally, it is possible to have an electric lock on request to increase the sealing when closing.

TECHNICAL DATA
Power supply: 230V
Motor power supply: 24V
Motor power: 4.2W
Max nominal torque: 40Nm
Electric lock: internal
Clutch: Mechanical
Maneuvering time: 18s for 180°
Data for single door installation:
Min. window opening width: 43cm
Max. window opening width: 80cm
Max door surface area: 1.8m2
Max door weight: 80Kg

PACKAGE CONTENTS
1 Buongiorno single-leaf gearmotor
1 "T" compass levers right and left
1 Carter length 800 mm (adaptable to your light)
1 Installation Manual

Dimensions 800 x 63 x h103.5
Weight 5 Kg

The product packaging contains all safety certifications and manuals for use and maintenance instructions.
