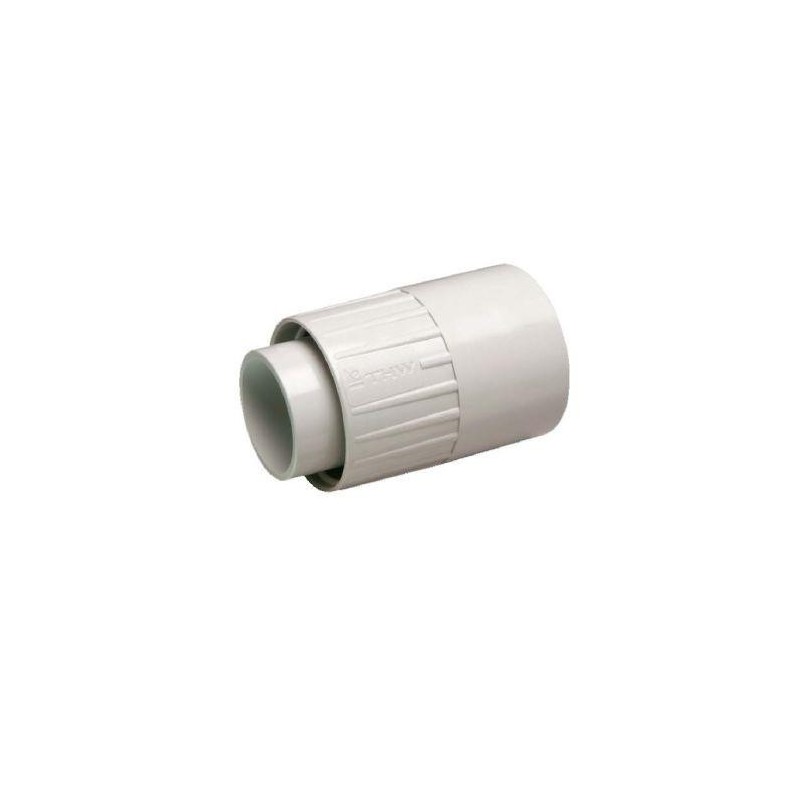

Pipe-sheath connection ip67/65 d25

IP67 tube-sheath connection, same diameter

It connects a rigid tube to a spiral sheath;
the rigid tube (IP67) is connected using the DRY system,
the sheath is inserted with a rotary movement and pressure (IP65).

Characteristics
• Standards: CEI EN 50086-1, CEI EN 50086-2-1
• Material: based on rigid PVC
• Colour: light grey RAL 7035
• Impact resistance: class 3 (>2 Kg from 10 cm at -5°C)
• Minimum temperature: class 2 (-5°C)
• Maximum temperature: class 1 (60°C)
• Flame resistance: self-extinguishing
• Glow wire test 850°C
• Degree of protection: IP67 tube side, IP65 sheath side
