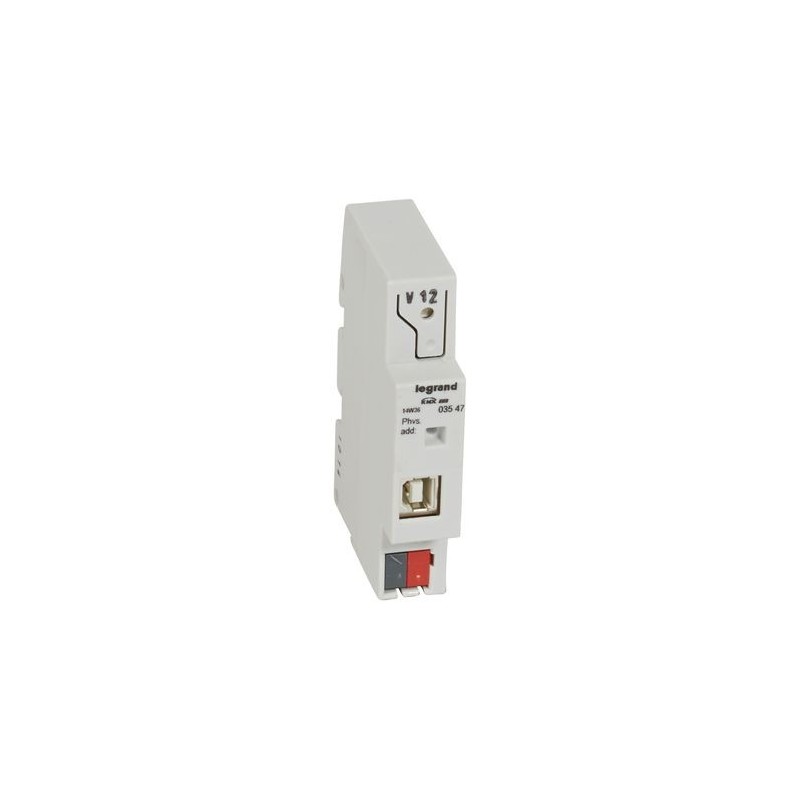

Optoisolated KNX/USB Interface - PC Connection for KNX Systems (Code 003547)

The opto-isolated KNX/USB interface is designed to connect a PC to KNX systems, allowing addressing, parameter definition, log viewing and diagnostics. Thanks to its compact design and DIN rail installation, it represents a practical and reliable solution for the management of advanced home automation systems.

Main features

• PC connection : KNX/USB interface for configuration, monitoring and diagnostics of KNX systems.
• USB Type B Connector : Compatible with USB 1.1 (transmission up to 12 Mbit/s).
• Direct power supply : Powered via connection to the KNX bus line or via USB connection.
• Universal compatibility : Ideal for all KNX systems with bus connection via red-black connector.
• DIN Rail Mounting : Designed for safe and tidy installations, occupying only one DIN module.

Technical specifications

• Brand : Legrand
• Rated voltage : 29 V DC
• Dimensions : 1 DIN module
• USB Connector : Type B (USB 1.1)
• Installation : On DIN rail
• Bus connection : Red-black KNX connector

Functionality

• Addressing and configuration : Allows you to define the addresses and parameters of KNX devices.
• Log View : Monitor KNX network activity in real time.
• Advanced Diagnostics : Makes troubleshooting and system optimization easier.
• Integrated Power Supply : No separate power supply required, reducing costs and simplifying installation.

Advantages

1. Ease of use : Direct and intuitive connectivity with the PC for simple and efficient management of KNX systems.
2. Compactness : It occupies only one DIN module, optimizing installation space.
3. Direct Power : Bus or USB powered, eliminating the need for external power supplies.
4. Versatility : Suitable for residential and commercial configurations.

Recommended Applications

• Residential home automation : Management and configuration of KNX systems in homes.
• Commercial installations : Ideal for offices, showrooms and professional spaces with KNX systems.
• Building automation systems : Perfect for the advanced management of home automation systems.

The Legrand opto-isolated KNX/USB interface (Code 003547) is the ideal solution for those looking for a reliable and practical tool for managing and diagnosing KNX systems. An essential product for installers and integrators of home automation systems!
