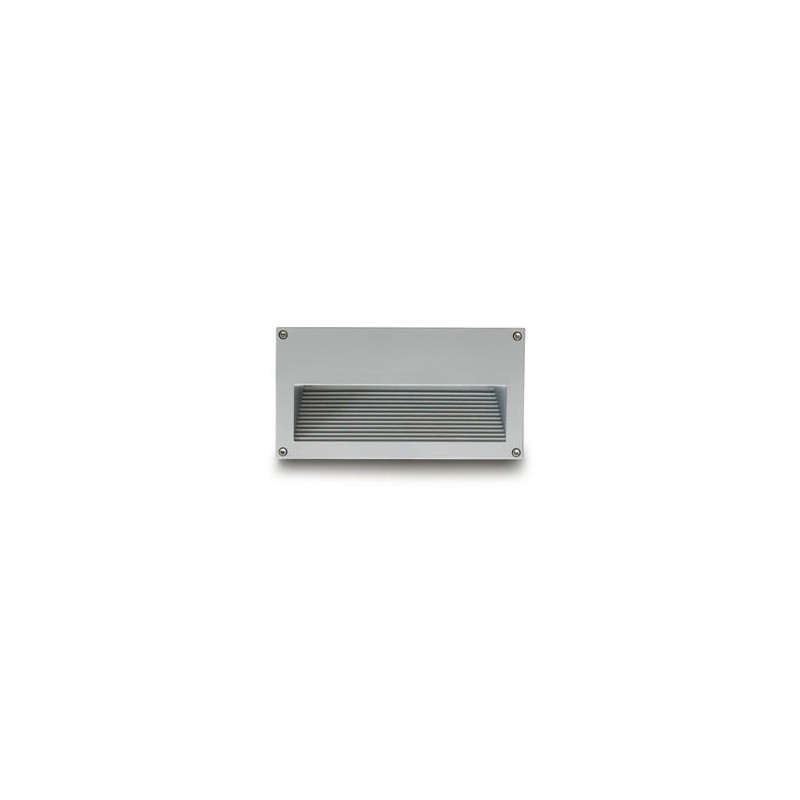

Eos Rectangular TC-DEL 26W - Aluminium Grey

Eos Rectangular TC-DEL 26W - Aluminium Grey

Product Description:

The Eos Rectangular TC-DEL 26W is an outdoor wall fixture that combines robustness, efficiency and design. Made of extruded and die-cast primary aluminium EN AB-47100 , it is designed to guarantee high resistance to oxidation and durability over time. Equipped with an IP65 protection rating , it is ideal for withstanding adverse weather conditions. The aluminium grey finish and the extra-resistant double painting, carried out in 3 phases, ensure optimal protection against UV rays and corrosion.

The opalized tempered glass is safely protected and ensures uniform and diffused lighting. With a mechanical resistance of IK06 , the lamp is resistant to impacts and protected from vandalism. The wiring system includes double entry for power cables, facilitating installation, and the diffuser is fixed with precision to avoid infiltrations and maintain a long operating life.

Main features:

• Maximum power: 26W (TC-DEL)
• Protection grade: IP65, perfect for outdoor environments exposed to rain and dust.
• Body material: Extruded and die-cast aluminum with A4 stainless steel screws and silicone gaskets.
• Surface treatment: Painting performed in 3 phases with Bonderite treatment for advanced resistance against oxidation and UV rays.
• Diffuser: Opalized and dotted tempered glass with high mechanical resistance (IK06).
• Salt Spray Test Resistance: 1500 hours of resistance for corrosion protection in harsh environments.
• Easy installation: Thanks to the polypropylene formwork with reinforced supports, it is also suitable for installation on walls made with concrete castings.
• Insulation class: Class I
• Weight: 2.41 Kg
• Available colors: Aluminum Grey (code 14), Black (code 09), Corten Rust (code 18)

Advantages:

• Robust and durable design: Ideal for outdoor installations, such as facades, entrances or passages, ensuring resistance to atmospheric agents.
• High luminous efficiency: The 99.98% pure aluminum optical reflector is anodized and polished, providing uniform and direct illumination.
• Easy maintenance: Thanks to the arrangement of the formwork and stainless steel screws, the system is easy to install and maintain over time.

Applications:

The Eos Rectangular TC-DEL 26W is perfect for lighting outdoor spaces such as facades, courtyards and entrances of public or residential buildings, thanks to its high weather resistance and versatile design.

Included in the package:

• Eos Rectangular TC-DEL 26W
• Formwork for installation
• Installation manual and stainless steel screws

Choose the Eos Rectangular TC-DEL 26W for long-lasting and resistant outdoor lighting, with a modern and functional design, suitable for any architectural need.
