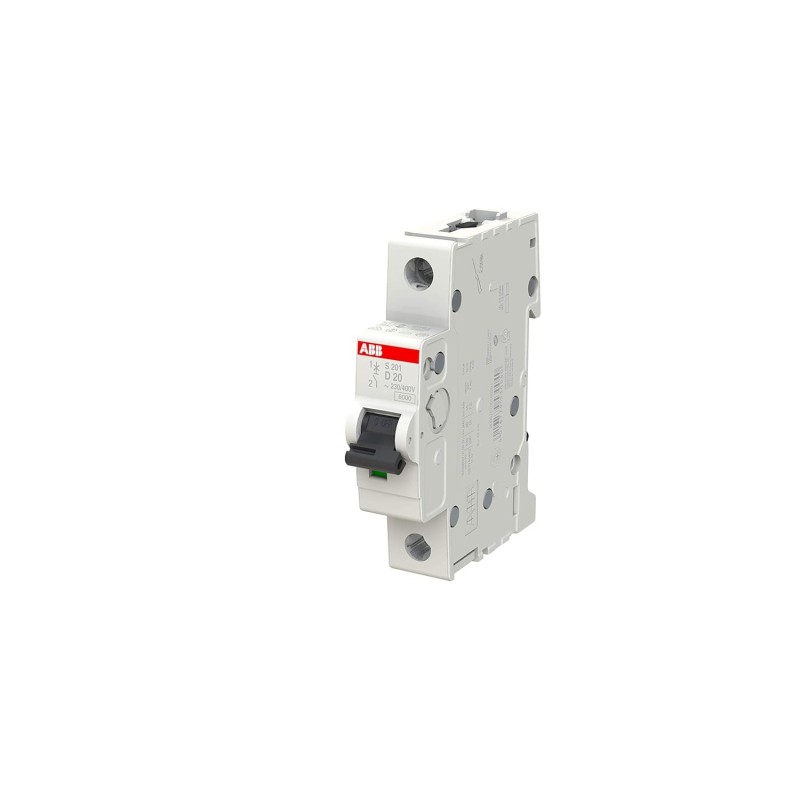

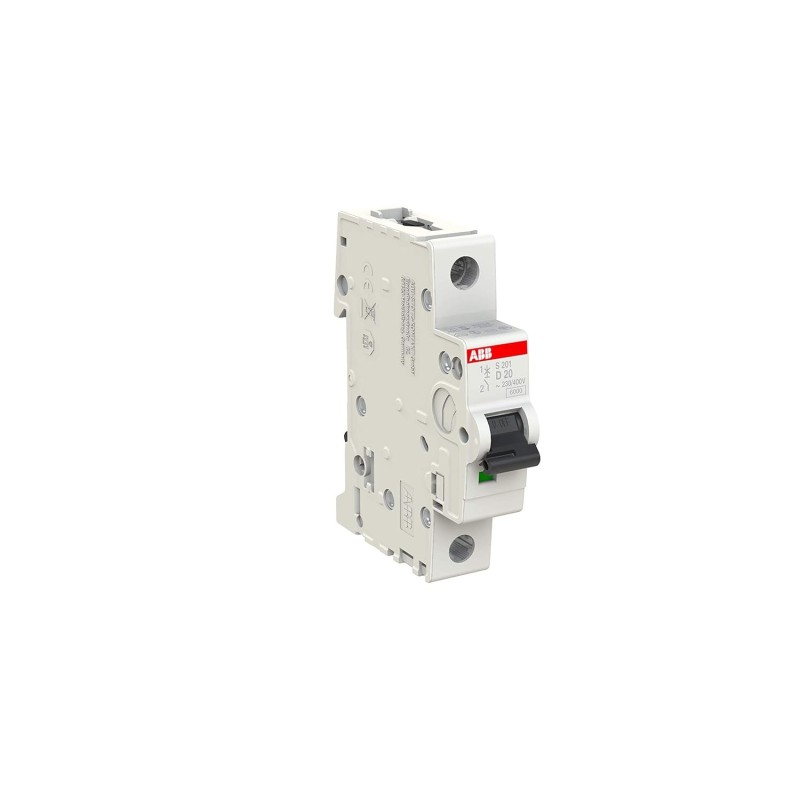

Abb S201 d20 automatic switch 6ka 1p

The ABB S201-D20 circuit breaker (product code 2CDS251001R0201 ) is a modular miniature circuit breaker designed for the protection of electrical circuits against overloads and short circuits.

Main features:

• Rated current (In): 20 A

• Number of poles: 1 pole

• Intervention curves: Type D, suitable for loads with high inrush currents

• Rated operating voltage (Ue): 230/400 V AC

• Breaking capacity (Icn): 6 kA according to IEC/EN 60898-1

• Overvoltage category: III

• Degree of protection: IP20 (IP40 if installed in a panel with cover)

• Operating temperature: -25°C to +55°C

• Electrical life: up to 20,000 operations

This switch complies with IEC/EN 60898-1 and IEC/EN 60947-2 , making it suitable for residential, commercial and industrial applications.

Dimensions:

• Width: 17.5 mm

• Height: 88 mm

• Depth: 69 mm
