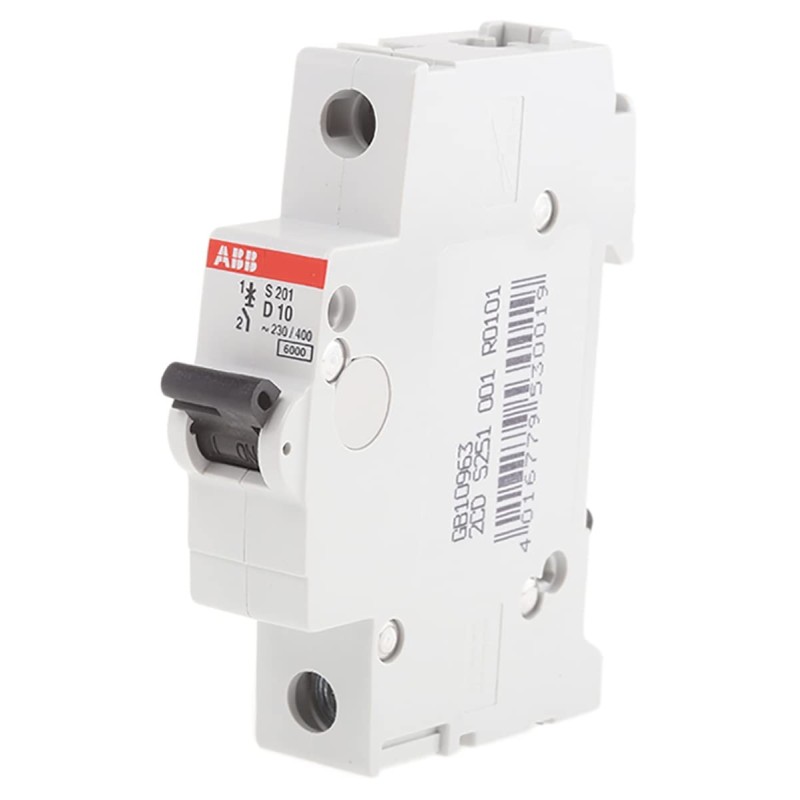

S201 d10 circuit breaker 6ka 1p

The ABB S201-D10 circuit breaker is a modular device designed to protect electrical circuits against overloads and short circuits. It is part of ABB's System pro M compact S200 series, known for its reliability and compliance with international standards. ​RS Components

Main features:

• Rated current (In): 10 A

• Number of poles: 1 pole

• Intervention curve: Type D, suitable for loads with high inrush currents

• Rated operating voltage (Ue): 230/400 V AC

• Breaking capacity (Icn): 6 kA according to IEC/EN 60898-1

• Compliance standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 ​RS Components

• Degree of protection: IP20, which can be increased to IP40 if installed in a panel with cover

• Operating temperature: -25°C to +55°C

• Electrical life: up to 20,000 operations

Dimensions:

• Width: 17.5mm (1 DIN module) ​RS Components

• Height: 88 mm ​Farnell

• Depth: 69 mm

Additional Features:

• Trip mechanism: Combines a time-delayed thermal trip for overload protection and an electromagnetic trip for short circuit protection.

• Contact status indication: Red for "ON" and green for "OFF"

• Possibility of mounting accessories: Compatible with auxiliary contacts, shunt releases and undervoltage coils

Typical applications:

• Protection of circuits with high inrush current inductive loads, such as transformers or motors

• Industrial and commercial plants

• Electrical distribution panels
