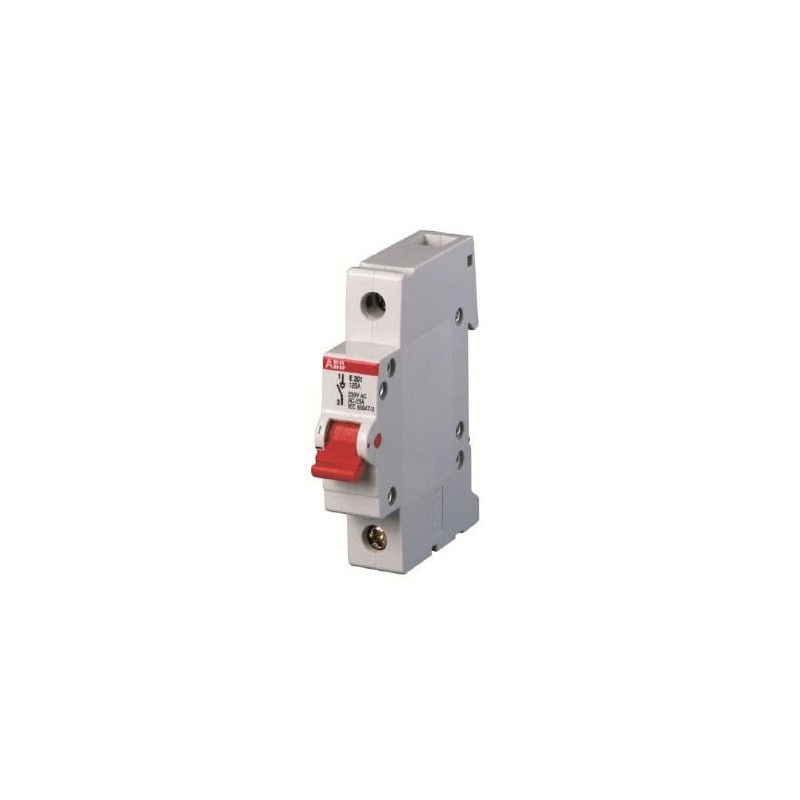

1p 125a switch-disconnector

This switch-disconnector is designed to ensure the safe control and sectioning of electrical circuits with both resistive and inductive loads. Ideal for civil and industrial systems, it allows the circuit to be interrupted in complete safety while ensuring visible sectioning.

✅ Main features:

Switch function: Switch - disconnector

Number of poles: 1 pole

Contacts:

1 Normally Open (NO) contact

0 Normally Closed (NC) contacts

0 exchange contacts

Rated current (In): 125 A

Nominal voltage (Un): 230 V AC

Minimum nominal voltage: 12 V

Voltage type: AC

Rated short-time current (Icw): 6 kA

Breaking capacity: 25 kA

Width: 1 DIN module

Recess depth: 70 mm

Degree of protection: IP10 (suitable for installation in protected electrical panel)

Shell/indicator color: Grey

Inscription: "Others" (customizable according to application)

⚙️ Additional features:

Provision for auxiliary contacts: possibility of mounting up to 3 S2C-H6R auxiliary contacts (optional) to integrate signalling or other remote control functions.

Indicator light: Not present

Guaranteed sectioning: The device ensures visible sectioning of the downstream circuit in the open position.

📌 Main Applications:

Electrical distribution panels

Industrial and tertiary plants

Protection and control of resistive and inductive electrical loads

Systems requiring high interrupting capacity and sectioning safety
