Mobile plug 16a 3p+t 6h 380-415v 60hz 50hz screw terminals

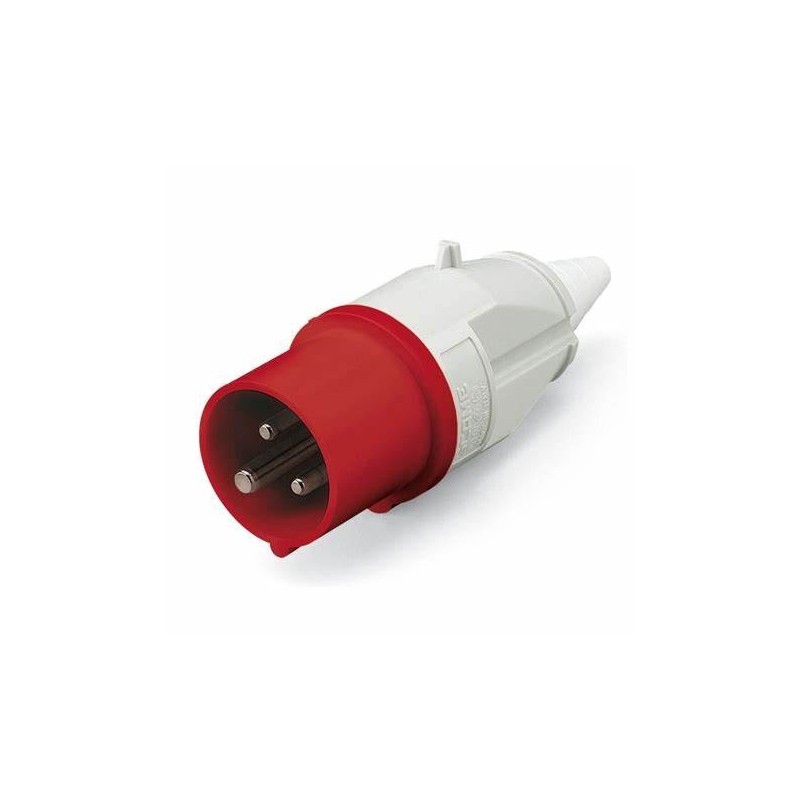

The code 210.1636 corresponds to the 3P+T 16A 6h IP44 industrial flying plug produced by Scame , belonging to the IEC309 series. This product has been designed for industrial applications that require a safe and reliable three-phase electrical connection.

Technical Features

• Product code : 210.1636

• Type : Industrial flying plug

• Rated current : 16A

• Poles : 3P+T (three-phase + earth)

• Rated voltage : 380–415V AC

• Frequency : 50/60 Hz

• Time position : 6h

• Degree of protection : IP44 (protected against solid objects greater than 1 mm and splashes of water)

• Material : Red thermoplastic

• Contacts : In nickel-plated brass (CuZn)

• Terminals : Screw type

• Mounting : Portable, straight cable outlet

• Net weight : 0.119 kg

• EAN : 8001636001838
