Fixed recessed socket 16a 3p+n+t 380v ip67

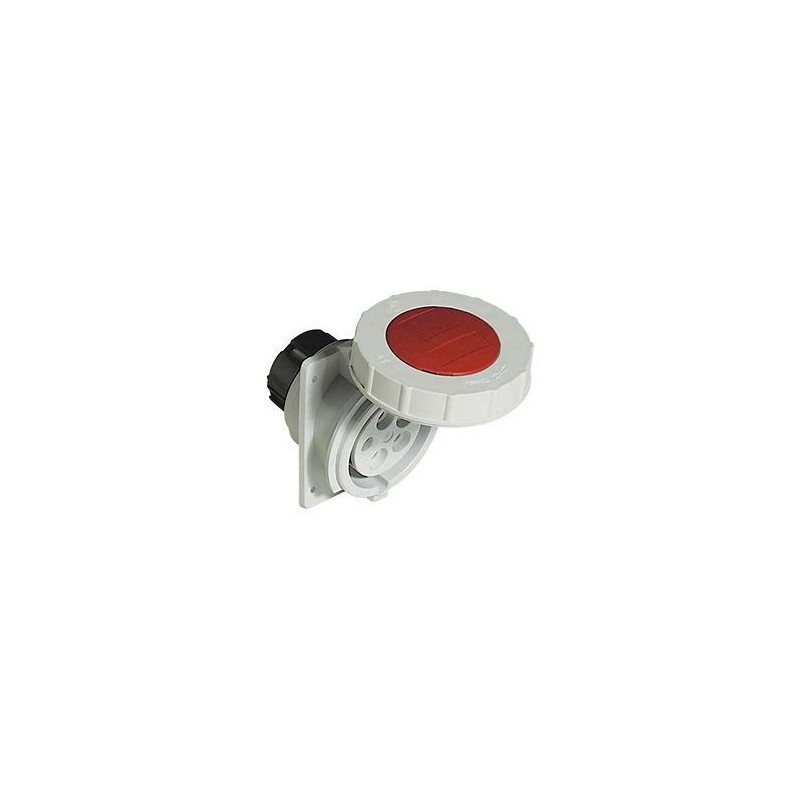

Fixed Flush-Mounted Socket 16A 3P+N+T 380V IP67 – Red

The Fixed Flush-Mounted Socket 16A 3P+N+T 380V IP67 is the ideal solution for industrial, commercial and residential installations that require a robust, safe device that complies with European standards. Designed according to the EN 60309-2 standard, it guarantees high performance even in environments exposed to extreme conditions, thanks to its IP67 protection rating.

Main Features

• Voltage and Regulatory Compliance:

  • Voltage: 400 V (50-60 Hz), compliant with EN 60309-2
  • Identification color: Red

• Current and Number of Poles:

  • Amperage: 16 A (according to IEC standards)
  • Number of poles: 5 (3 poles + Neutral + Earth)

• Connection System:

  • Connection via screw terminal, to ensure a safe and stable hold

• Degree of Protection:

  • IP67, which ensures total protection against dust and temporary immersion in water

• Design and Installation:

  • Insertion direction: Linear
  • Time reference: 6 h
  • Flange dimensions: 84mm (vertical) x 84mm (horizontal)
  • Made of high quality plastic

Extended Description

This flush-mounted straight socket is designed to ensure excellent safety and durability:

• Reference legislation:
  Complies with CEI EN 60309-1/2 regulations, ensuring compliance with international safety standards.

• Impact Protection:
  IK08 impact protection rating, which increases its resistance in industrial environments or in situations of intensive use.

• Quality Materials:

  • Casing made of ABS polyamide, which guarantees robustness and resistance to external agents.
  • Brass pins and sockets, for better conduction and durability over time.

• Heat and Fire Resistance:
  Designed to operate in a temperature range from -25°C to 40°C and with certified heat and fire resistance (CEI 50-11: 650-850°C).

Advantages

• Reliability and Safety:
  The socket offers complete protection against external agents and ensures a secure connection, essential for critical electrical systems.

• Easy Installation:
  Thanks to the screw terminal system and the compact design with 84 x 84 mm flange, installation is quick and easy, allowing for discreet integration into the control panel.

• Durability and Resistance:
  Selected materials and compliance with safety regulations ensure long operating life even in challenging environmental conditions.

By choosing the 16A 3P+N+T 380V IP67 Fixed Flush-Mounted Socket, you are investing in a high-quality electrical component, capable of guaranteeing safety, efficiency and constant performance over time, responding perfectly to the needs of modern systems.
