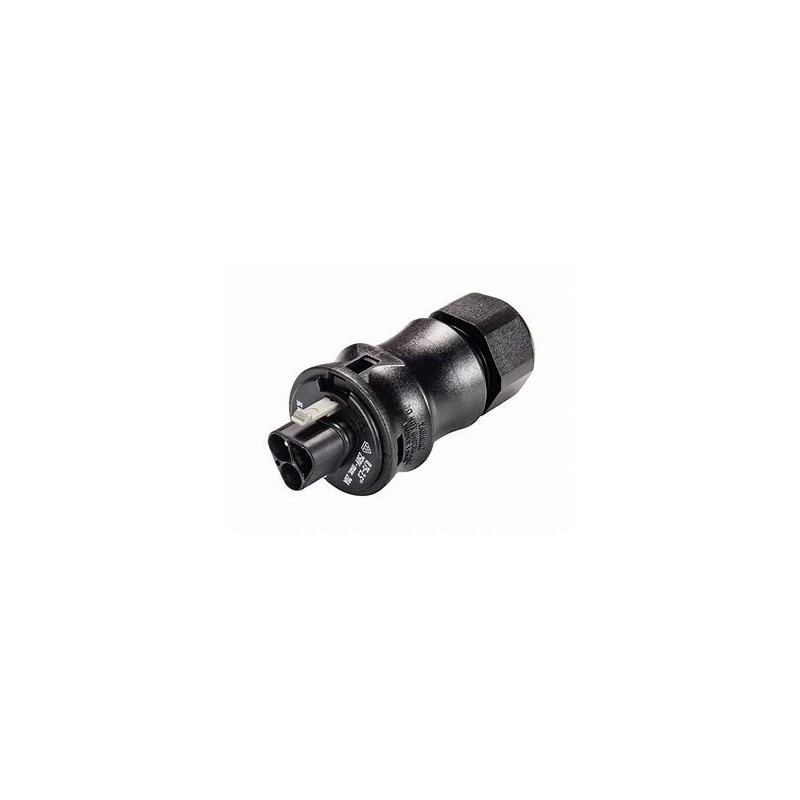

Bad cwstr-rel.rst20i3f s2 zr2svh gn02

The Wieland RST20i3f S2 ZR2SVH GN02 male connector is designed for electrical applications requiring reliability and safety. Its main technical characteristics are listed below:

• Model: Plug (male)
• Rated voltage: 400V
• Rated current: 20A
• Number of poles: 3
• Degree of protection (IP): IP66
• Connection: Spring clamp connection
• Cable diameter: 10...14 mm
• Connection section (fine wire): 0.5...1.5 mm²
• Connection section (single wire): 0.5...2.5 mm²
• Number of connections per pole: 2
• Pole coding: 1, 2, PE
• Mechanical coding (with coding pin): Yes
• Coding / Insert Color: Green
• Locking type: Integrated into the plug-in connector
• Cable Clamp: Yes
• Constant temperature at maximum resistance with contact element: 100 °C
• Body material: PA (Polyamide)
• Halogen free: Yes
• Fire load: 0.272 kWh
• Contact material: CuZn
• Contact surface finish: Silver plated
• Pollution level: 3
• Surface resistance / Bulk resistivity (DIN IEC 60093): 3 mΩ
• Rated peak voltage: 4 kV
• Dimensions: 79.1mm (length) x 34.6mm (width) x 34.6mm (height)

These specifications make the connector suitable for industrial applications and outdoor environments, ensuring a safe connection protected against dust and water.
