Surge protector, RC group, AC 24...48 V, 50/60 Hz, DC 24....70 V, for 3RT2.2 contactors

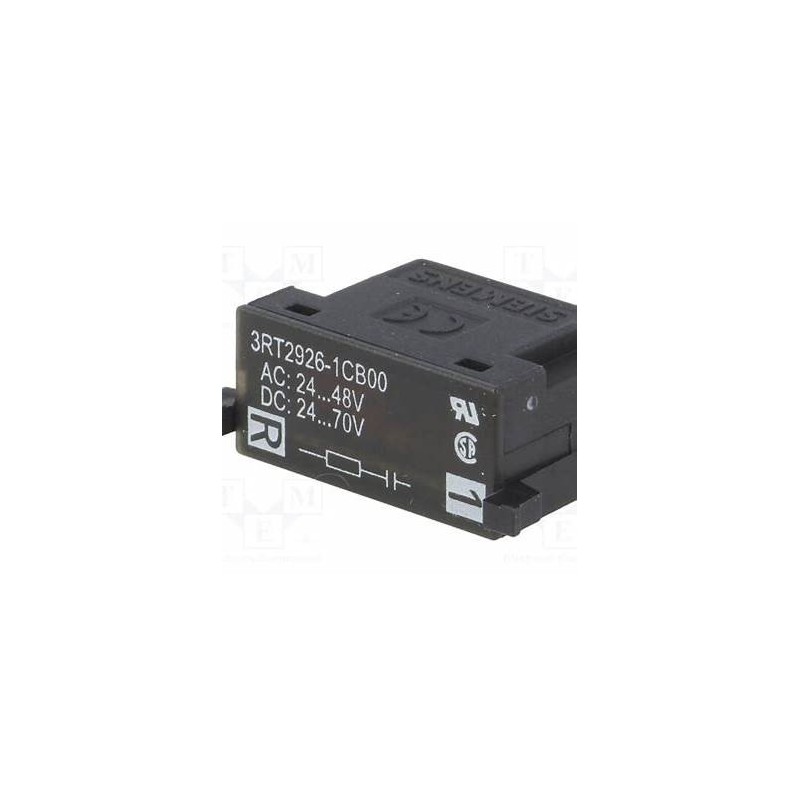

The Siemens 3RT2926-1CB00 is a surge suppressor with RC element, designed to protect SIRIUS 3RT2.2 series contactors from voltage peaks during circuit interruption.

Main technical features

• Product Code : 3RT2926-1CB00

• Type : RC Surge Suppressor

• Control voltage :

  • 24–48 V AC (50/60 Hz)

  • 24–70V DC

• Compatibility : Siemens SIRIUS 3RT2.2 contactors (size S0)

• Fixing method : Clip-on

• Dimensions : 30mm (width) x 19mm (height) x 12mm (depth)

• Operating temperature : -25°C to +60°C

• Certifications : CE, UL, CSA

• Net weight : about 0.005kg
