Section 4p 32a box 110mm gl/r 67x67mm 3luc

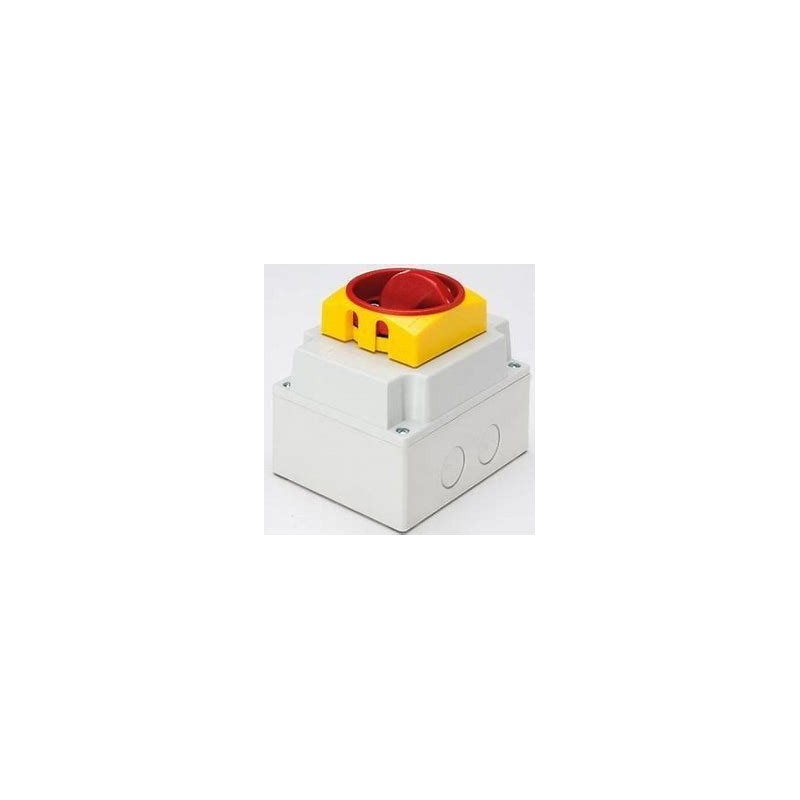

The device is an ABS control box with IP65 protection rating, equipped with a 32A 4-pole switch. It has a 67x67 mm yellow plate and a lockable red knob, which allows the application of up to 3 padlocks to ensure safety during maintenance or intervention operations. The cover lock in the "ON" position ensures that the cover cannot be opened when the device is in operation, preventing unauthorized or accidental access to the internal components under voltage.

Main features:

• Material: Made of ABS , the box offers shock resistance and durability over time.

• Degree of protection: Compliant with the IP65 standard, it guarantees protection against dust and water jets from any direction, making it suitable for industrial environments and outdoor applications.

• Dimensions: The box has a size of 110 mm , with a front panel of 67x67 mm .

• Front control: Equipped with a red front knob, it allows easy operation of the disconnector.

• Lockability: The knob is designed to be lockable, allowing the use of up to 3 locks to ensure safety during maintenance operations.

• Lid lock in "ON": The lid is locked when the disconnect switch is in the "ON" position, preventing accidental or unauthorized opening.

This type of enclosure is commonly used in industrial applications for the control and protection of electrical circuits, offering a safe and reliable solution for the isolation and management of electrical power.
