Eaton-Moeller ZB150-125/KK - Overload Relay (95-125A, 1 NO + 1 NC)

Eaton-Moeller ZB150-125/KK - Overload Relay (95-125A, 1 NO + 1 NC)

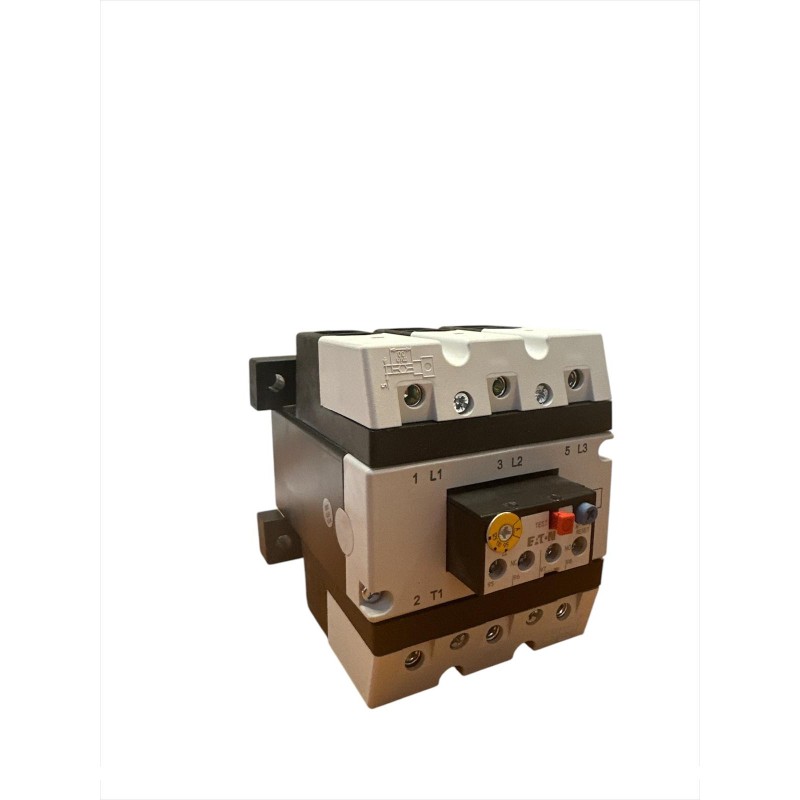

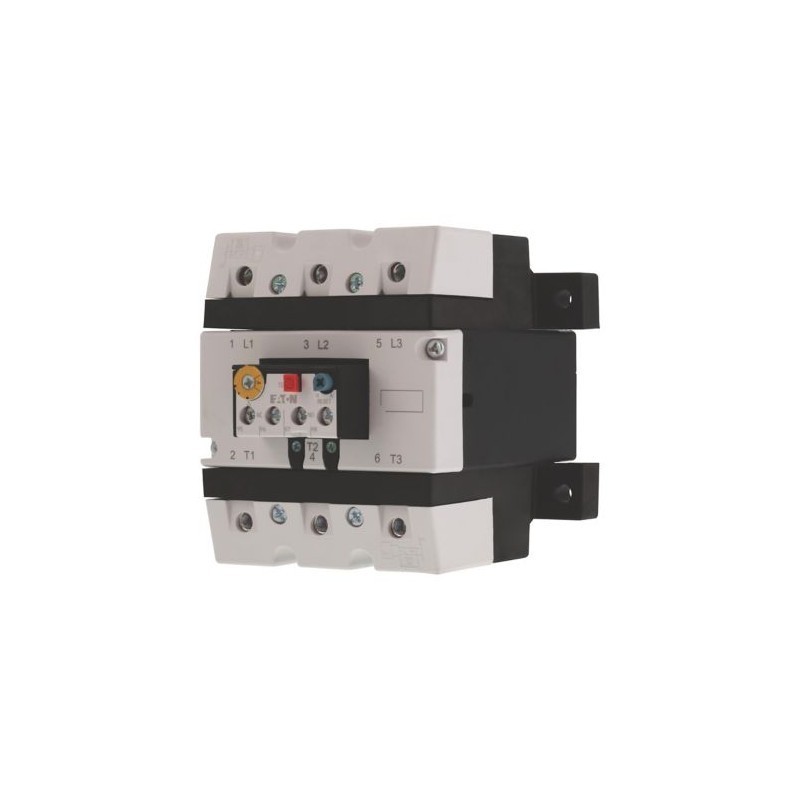

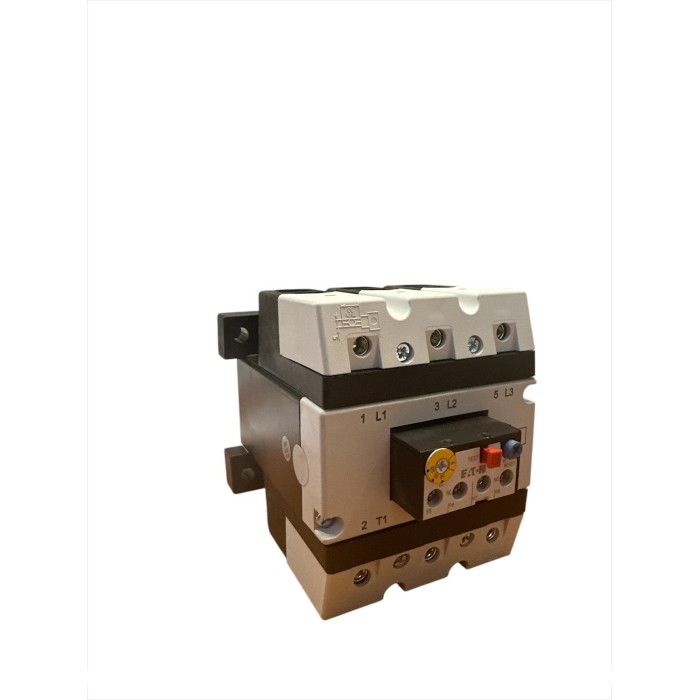

The Eaton-Moeller ZB150-125/KK overload relay is a device designed to protect electric motors from overloads and faults, ensuring safe and efficient operation. Thanks to its configuration with 1 normally open (NO) and 1 normally closed (NC) contact , it offers reliable control in industrial systems and control panels.

Main features:

• Current range: 95 - 125 A , for effective motor protection.
• Compatible with Eaton contactors of the DILM80, DILM95, DILM115, DILM150, DILM170 series, and other DIULM and SDAINLM variants.
• Separate mounting , for greater flexibility in installation.
• Phase failure protection , compliant with IEC/EN 60947 and VDE 0660 Part 102 standards.
• Control buttons: Test/Off button and manual/automatic reset button.
• Trip-free release system , for effective protection in the event of overload.
• Degree of protection: IP00 , suitable for installation in protected environments.
• Certification standards: IEC/EN 60947, VDE 0660, UL, CSA , ensuring compliance with international regulations.

Applications:

✔ Protection of industrial and commercial electric motors
✔ Use in electrical panels and automation systems
✔ Suitable for HVAC, pumps, fans and compressors
✔ Reliable solution for power management in production plants

The Eaton-Moeller ZB150-125/KK overload relay is a safe and reliable choice for protecting and controlling electric motors in industrial environments, helping to extend their life and operating efficiency.
