Dt17am-n ext.c/am detector

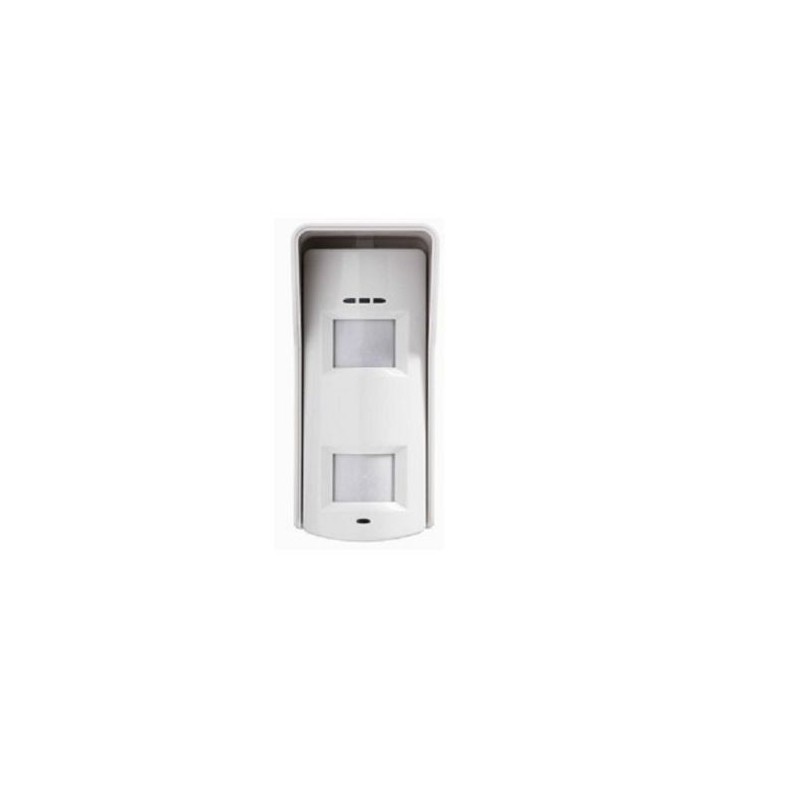

The DT17AM-N is a dual technology outdoor detector produced by Elkron , designed to ensure high security in outdoor environments. This device combines a microwave (MW) sensor and two independent passive infrared (PIR) sensors, offering a volumetric coverage of 90° with a range of up to 10 meters .

Technical Features:

• Detection range: the microwave range is adjustable from 0 to 15 meters , while the PIR sensor range is fixed at 10 meters .
• Volumetric coverage range: 90° (78 zones – 5 detection planes) .
• Animal immunity: ‹10kg .
• Triple detection logic: 1 MW + 2 independent PIRs .
• Anti-masking (anti-spray) technology .
• Obstacle detection technology (blocking) .
• Alarm outputs: two outputs, one NC and one separate NO .
• Integrated end-of-line resistors .
• Tamper Alarm .
• Fault Masking .
• Microwave module frequencies: 9.9 GHz .
• Built-in walk test buzzer .
• Digital temperature compensation .
• Anti-oscillation filter .
• Protection from sunlight .
• High intensity UV filter .
• Polycarbonate case .
• Sealed optics .
• Electronic board protection .
• Power and consumption: 24mA @ 13.8VDC .

Thanks to its advanced technologies and robust construction , the DT17AM-N is ideal for ensuring perimeter protection of homes, offices and industrial areas.
