Commut sat+terr-25db wb-lgcy/scr 8out.4+

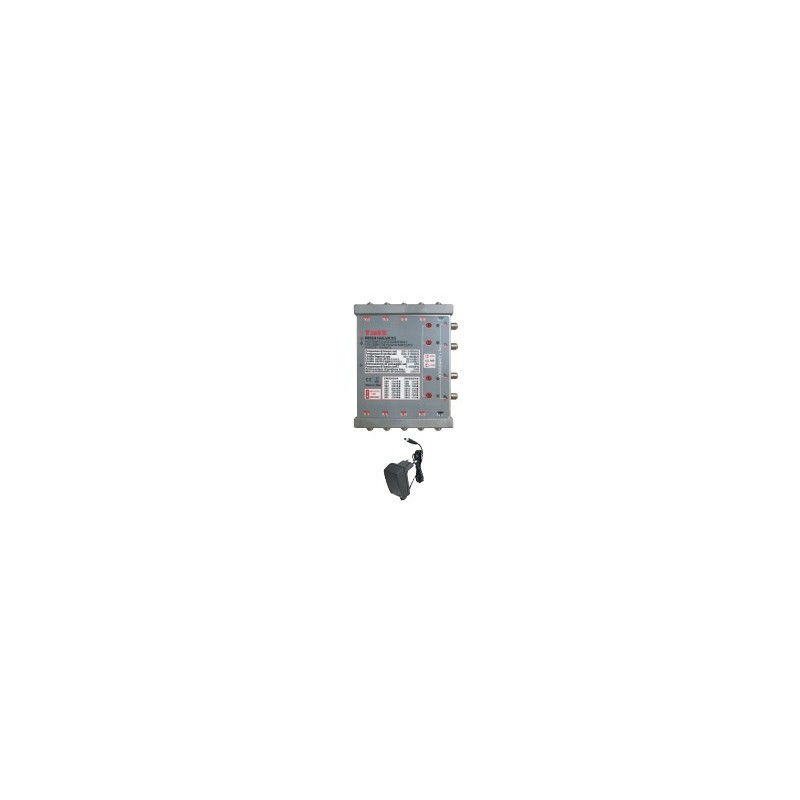

The Legacy/dSCR (Digital Satellite Cable Router) combined multiswitch device, designed for satellite and terrestrial distribution in centralized systems.

Legacy/dSCR Multiswitch - Terrestrial and Satellite

• Legacy/dSCR : indicates that the multiswitch can operate in Legacy mode (compatible with traditional decoders) or dSCR (Unicable) , compatible with SCR or EN50494/EN50607 systems.

• Terrestrial + Satellite : allows mixing of the terrestrial TV signal (DVB-T/T2) with the satellite one (DVB-S/S2) on a single cable.

SAT+TERR switching -25 dB

• Integrated switch between SAT and terrestrial signals.

• The -25 dB value indicates the attenuation of the terrestrial signal , useful for equalizing signals or preventing overloads in the presence of strong TV signals.

WB-LGCY/SCR 8 OUTPUT.4+

• WB : stands for "Wideband", so the multiswitch is compatible with Wideband LNBs (2 separate polarities, H/V), not the traditional four cables (VL, VH, HL, HH).

• LGCY/SCR : Confirms that the outputs can operate in Legacy or SCR (Unicable) mode.

• 8 USC : Supports 8 User Bands (SCR channels) for compatible decoders.

• 4+ : indicates 4 configurable outputs , each with the ability to manage up to 8 SCR channels.
