Fuse switch 10x38, mounting on bars

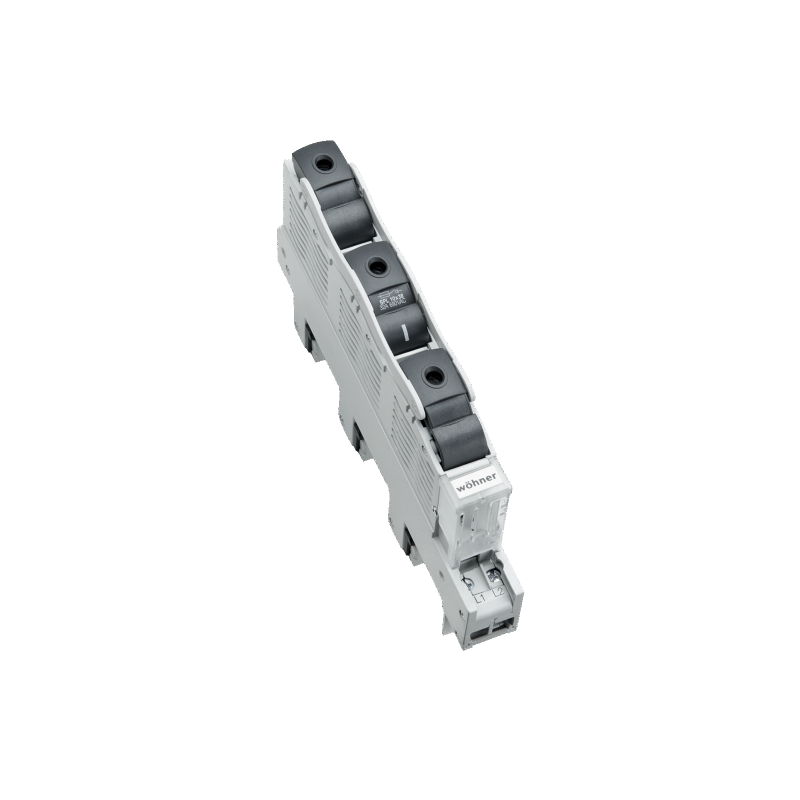

Fuse Switch 10x38 - 3 Poles - Mounting on Busbars - SECUR®60Classic PowerLiner

The SECUR®60Classic PowerLiner is a high-quality disconnector designed to house and protect 10x38 cylindrical fuses according to IEC 60269-2 . Ideal for industrial applications and switchgear, it allows safe and quick installation on busbars of various sizes.

✅ Main features:

• Suitable for 10x38 cylindrical fuses
• Direct mounting on 12, 15, 20, 25, 30 mm bars (5 or 10 mm thick) and profiled bars
• 3 poles with the possibility of simultaneous or single sectioning
• Connecting the cables from below
• Front protection degree: IP20
• Patented snap-fit mechanism for easy installation

📐 Technical specifications:

• Reference standards: IEC 60947-1:2020 / IEC 60947-3:2020 (AC only)
• Rated current: 32A
• Rated AC voltage: 690 V
• DC Rated Voltage: 110V
• Insulation voltage Ui AC: 500 V
• Insulation voltage Ui DC: 250 V
• Peak voltage Uimp: 6 kV
• Employment Category:
  • AC-23A (400V)
  • AC-22A (690V)
• Conditional breaking capacity: 50 kA at 400 V with gG fuses
• Typical power dissipation at 80% load: 3.4 W (5.3 W at full load)

🔧 Connections and Wiring:

• Connection type: Cage clamp
• Screws: PZ2
• Supported cable section: from 1.5 mm² to 16 mm² (copper)
• Recommended tightening: min. 2.0 Nm / max. 2.5 Nm
• Not suitable for aluminium cables
• Wire stripping length: 12mm

• 🌿 Other features:

  • Maximum permissible AC voltage: 725 V (in use as a fuse holder without sectioning function)
  • Compatible with gG and aM type fuses according to IEC / EN 60269-2
  • Isolation guaranteed between input and output during opening of the switching mechanism

  ---

  💡 Applications:
  Ideal for industrial plants, electrical panels and distribution systems, where reliable protection and safe sectioning are required.

  ✅ Reliability, safety and ease of assembly in a single product.
  Order the SECUR®60Classic PowerLiner switch disconnector now for an efficient and compliant system.
