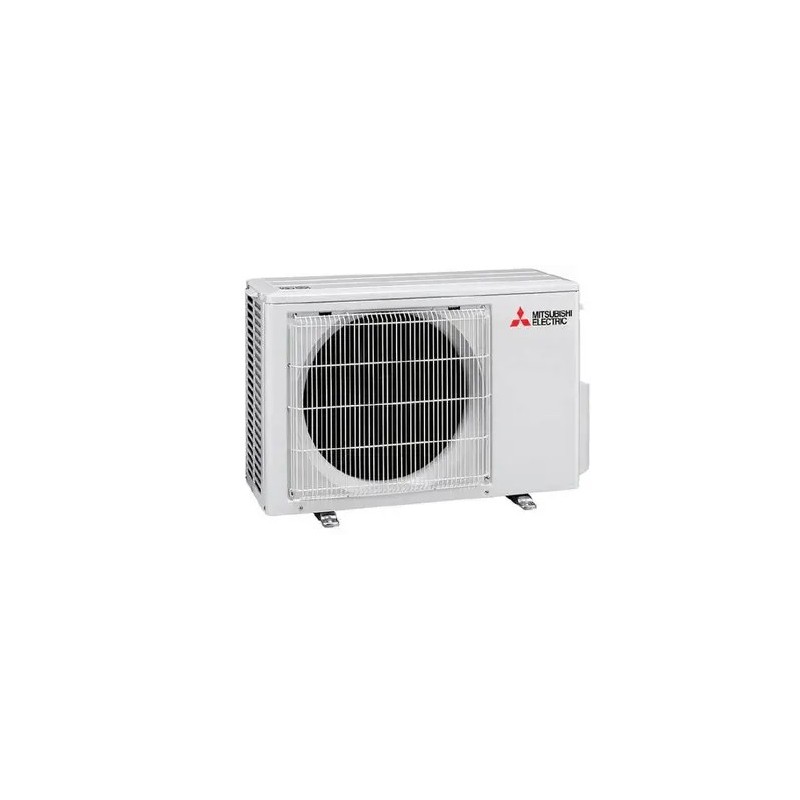

Inverter external unit 9000 btu ef r32

Main technical features

• Model : MUZ‑EF25VG (outdoor unit), can be combined with MSZ‑EF25VG (9,000 BTU indoor unit)

• Nominal capacity : 2.5 kW (cooling), 3.2 kW (heating)

• Refrigerant gas : R‑32, new generation, with reduced environmental impact

• Energy efficiency :

  • SEER ≈ 8.5 (class A+++ in cooling)

  • SCOP ≈ 4.7 ( A++ class in heating)

• Annual consumption : ~103 kWh (cooling), ~716 kWh (heating)

• Sound level : ~47–48 dB(A) outside; ultra-quiet inside up to 19 dB(A)

• Operating range :

• • Cooling: –10°C to +46°C

  • Heating: from –15 °C to +24 °C

• Pipes : liquid Ø 6.35 mm (1/4″), gas Ø 9.52 mm (3/8″); maximum length 20 m, height difference up to 12 m
