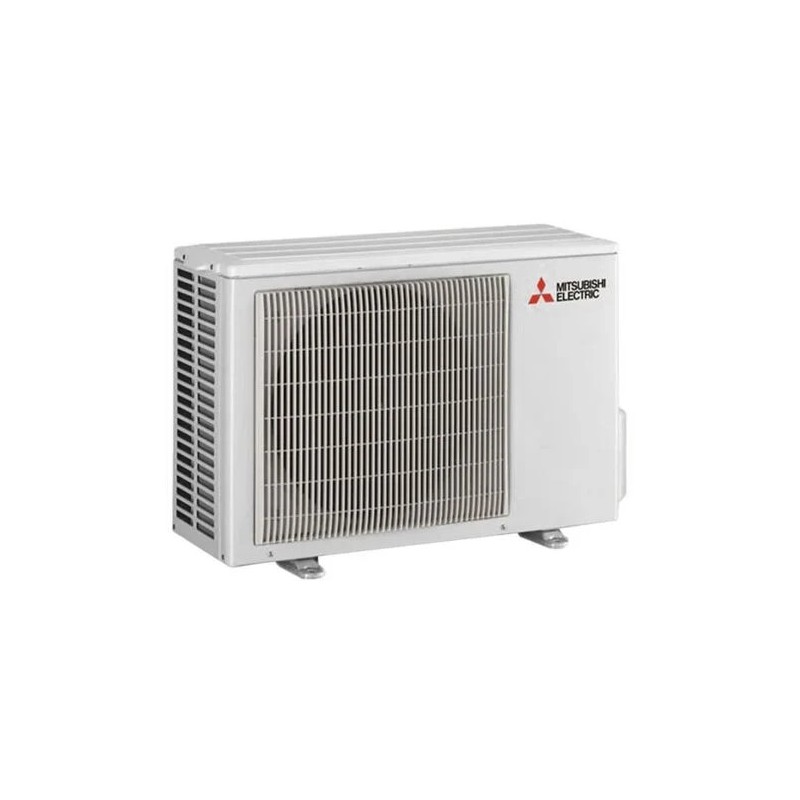

9000 btu mono ln r32 external unit

Main technical features

• Model : MUZ‑LN25VG, corresponding to ~2.5 kW in cooling and ~3.2 kW in heating, can be combined with the internal MSZ‑LN25VG

• Refrigerant gas : R‑32, with reduced energy consumption and lower environmental impact

• Energy efficiency :

  • SEER ≈ 10.5 (class A+++ )

  • SCOP ≈ 5.2 (class A+++ ) l

• Annual consumption :

  • Cooling: ~83 kWh

  • Heating: ~794 kWh Noise level :

• • External: approx. 46 dB(A) in cooling, 49 dB(A) in heating

  • Interior: silent up to 19 dB(A)

  • Dimensions / weight : 800 × 550 × 285 mm, ≈ 35 kg

  • Operating range :

• • Cooling: –10°C to +46°C

  • Heating: from –15 °C to +24 °C

• Pipes : liquid Ø 6.35 mm (1/4″), gas Ø 9.52 mm (3/8″); maximum length 20 m, height difference up to 12 m

💡 Additional features

• Quad Plus Plasma Filter for Air Purification (Dust, Allergens, PM2.5)

• 3D i‑see sensor to optimize comfort by measuring occupancy and temperature

• Built-in Wi-Fi with MELCloud app control

• Dual-Barrier coating against grease and dust; elegant design available in various colours
