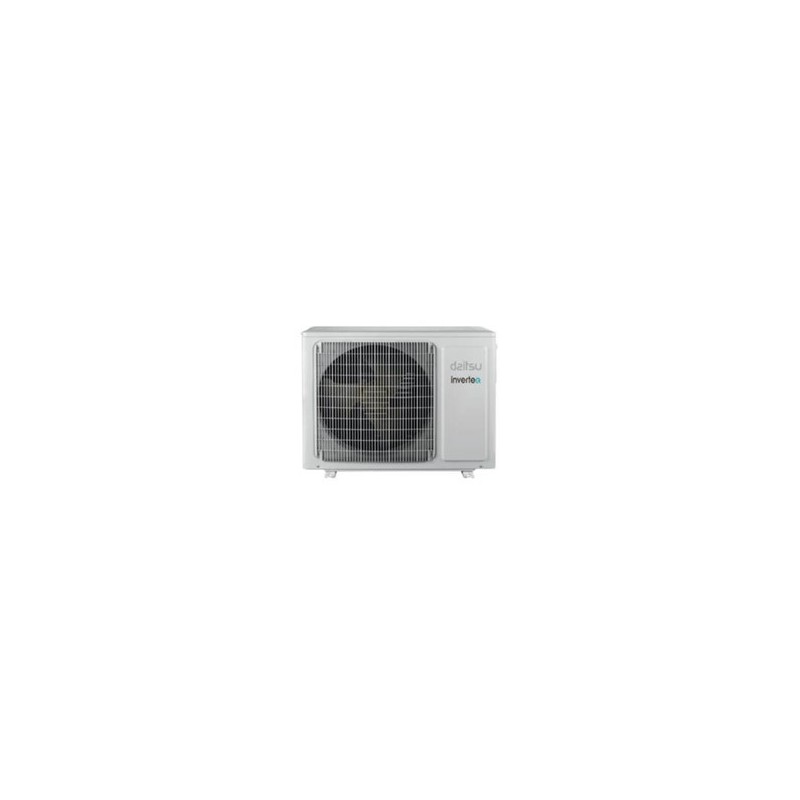

Dos - 9kidb(w) 9000 btu mono db outdoor unit - gasr32

The Daitsu DOS-9KIDB(W) outdoor unit is designed for mono-split systems and offers a cooling capacity of 9,000 BTU (approximately 2.6 kW ), making it ideal for small and medium-sized environments. It uses R32 refrigerant gas, known for its high energy efficiency and low environmental impact.

🔧 Main Technical Features

• Cooling Capacity : 2.6 kW (min 0.94 – max 3.35 kW)

• Heating capacity : 2.75 kW (min 0.94 – max 3.38 kW)

• Energy Efficiency :

  • SEER : 6.3 (Class A++)

  • SCOP : 4.0 (Class A+)

• Refrigerant Gas : R32 (precharged with 0.55 kg)

• Noise Level : 50 dB(A)

• Dimensions (WxHxD) : 777 x 498 x 290 mm

• Power supply : 220–240 V / 50 Hz

• Pipe Compatibility :

  • Liquid: Ø 6.35 mm (1/4")

  • Gas: Ø 9.52 mm (3/8")

• Operating Range :

  • Cooling: -15°C / +53°C

  • Heating: -20°C / +30°C

• Maximum height difference between internal and external units : 10 m

🌟 Features and Benefits

• DC-3 Inverter Technology : Regulates power according to needs, ensuring significant energy savings.

• Wi-Fi Compatibility (Optional) : Enables remote control via smartphone, providing greater convenience.

• Compact Design : Facilitates installation even in small spaces.

• Silent Operation : Ensures a comfortable environment without noise disturbance.
