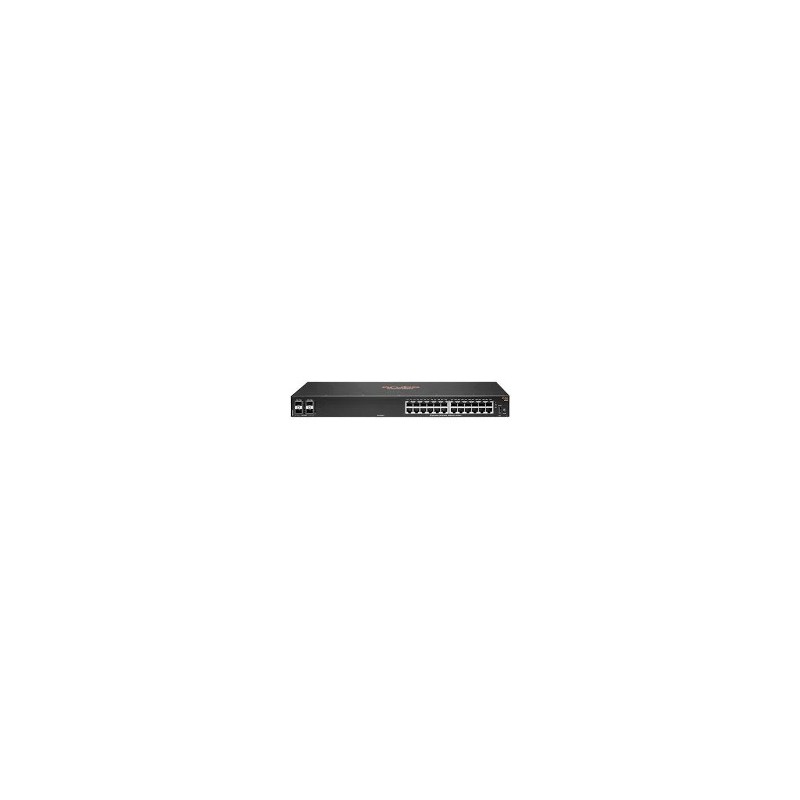

Aruba 6000 24G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U Network Switch

Model : Aruba CX 6000 24G 4SFP Switch ( R8N88A ) – L3 managed switch, 1U rack

Doors :

• 24× 10/100/1000 Base-T RJ‑45

• 4× 1GbE SFP (for fiber uplink)

Controller :

• ARM Cortex‑A9 Dual‑Core CPU @1,016 MHz

• Memory: 4GB DDR3 + 16GB eMMC

Performance :

• Switching capacity: 56 Gbps

• Throughput: 41.6Mpps

• Latency: about 1.5 μs on 1 Gb

• Routing and Security :

• Layer 2 + static routing (L3), ACL, advanced QoS, IPv6, ACL, multicast, SNMP, SSH, RADIUS, TACACS+

Management and software :

• Aruba AOS‑CX, with web GUI, CLI, REST API, Aruba NetEdit and Aruba Central support

Power & Supply :

• Internal power supply, 100‑240 V AC

• Max consumption without PoE: ~33 W (idle ~15 W)

Format :

• 1U rack; size 44.2 × 4.39 × 20.12 cm; weight about 2.6 kg Ventilation : internal fans, horizontal flow
